神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.120.AA) - ARMREST Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
487 次

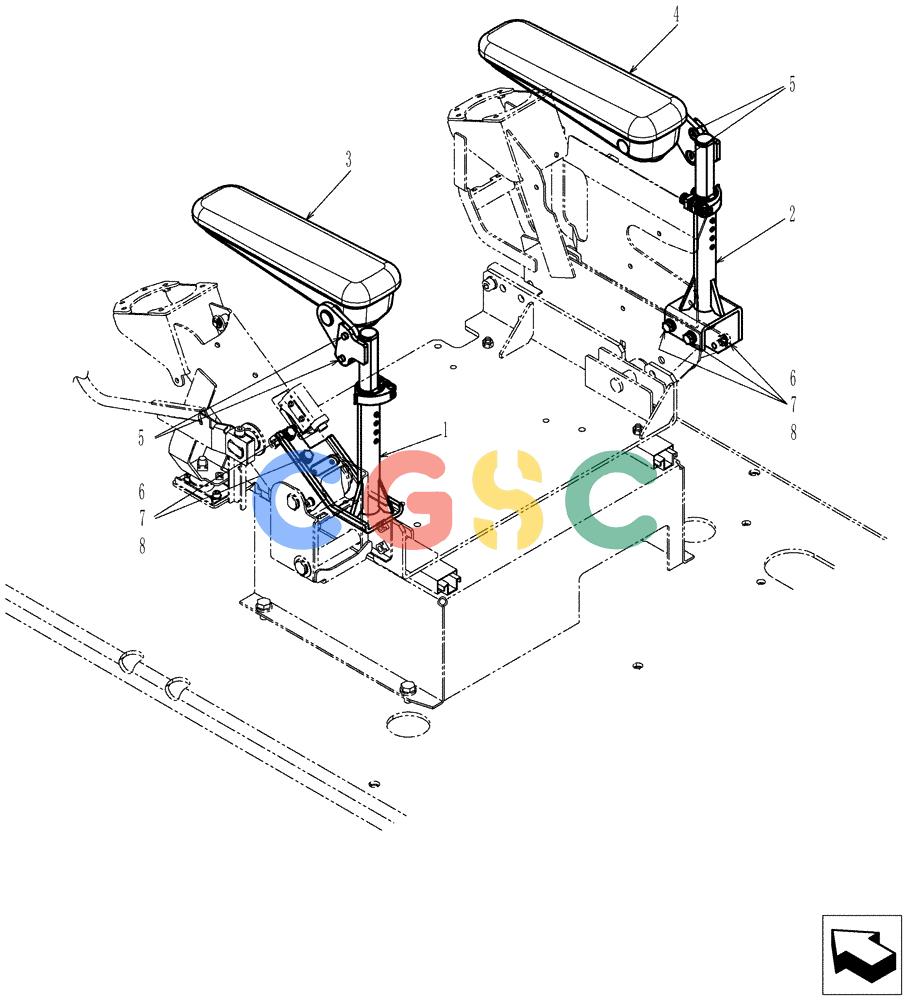

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25M01233F1 | [1] | ARMREST | KOBAssy |
| 1. | YN25M01235P1 | [1] | BRACKET | SMLEFT |
| 2. | YN25M01234P1 | [1] | BRACKET | SMRIGHT |
| 3. | 87570965 | [1] | ARMREST | SMLEFT (YN25M01184P2) |
| 4. | 87570967 | [1] | ARMREST | SMRIGHT (YN25M01185P2) |
| 5. | 14442034 | [4] | SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9 | BRRM08x1.25x18mm (ZS68C08018) |
| 6. | 16043434 | [5] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LECM08x1.25x20mm (Incls. Washer & Lockwasher)(ZM27C08020) Superseded by part number: 16043431 |
| 7. | 10516674 | [5] | LOCK WASHER,M8 | TTF(ZW26X08000) ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | 14496531 | [5] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC(ZW16P08000) Superseded by part number: 86624184 |
