神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.119.AB[08]) - GUARD INSTALL (HANDRAIL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
983 次

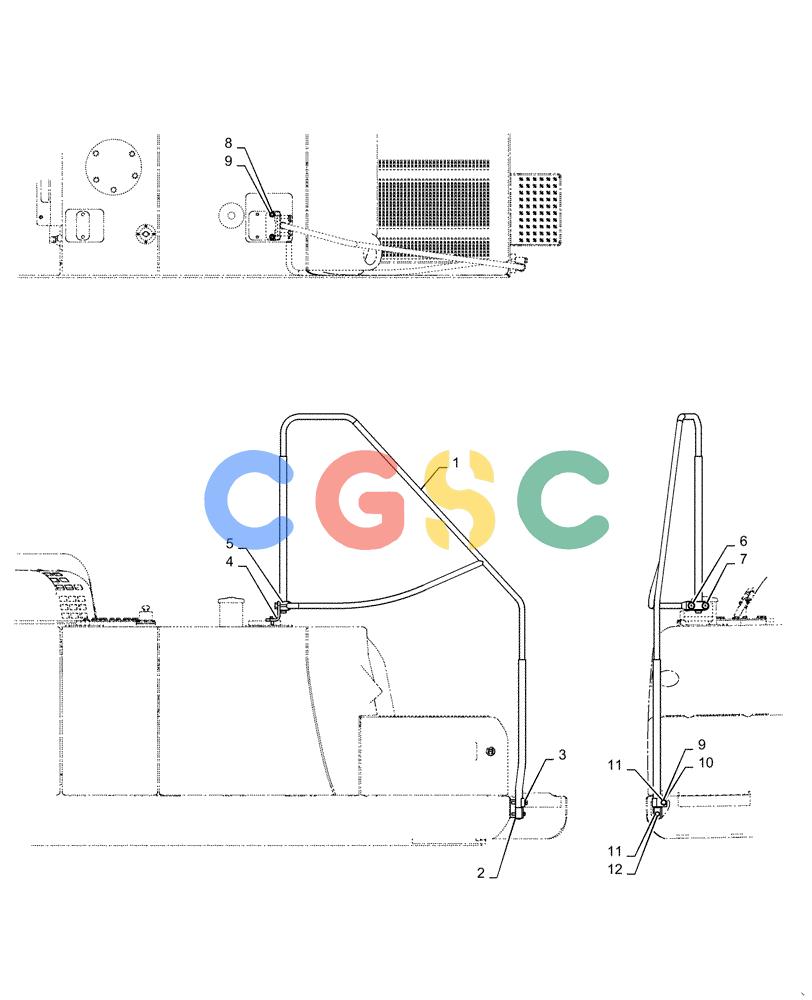

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LB21C01451P2 | [1] | STAY | KOB |
| 2. | LB21C01411P1 | [1] | BRACKET | SM |
| 3. | LB21C01459P2 | [1] | CLAMP | KOB |
| 4. | LB21C01409P1 | [1] | MOUNTING PLATE | SM |
| 5. | LB21C01458P2 | [2] | CLAMP | KOB |
| 6. | ZW16H16000 | [2] | WASHER | KOB |
| 7. | ZS18C16070 | [2] | SCREW,Hex, M16 x 70mm | KOB |
| 8. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 9. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 10. | ZS18C12065 | [1] | SCREW,Hex, M12 x 65mm | KOB |
| 11. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOB |
| 12. | ZW16P10000 | [1] | WASHER | KOB |
