神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.150.AB[07]) - CAB, WINDOW FRAME, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
631 次

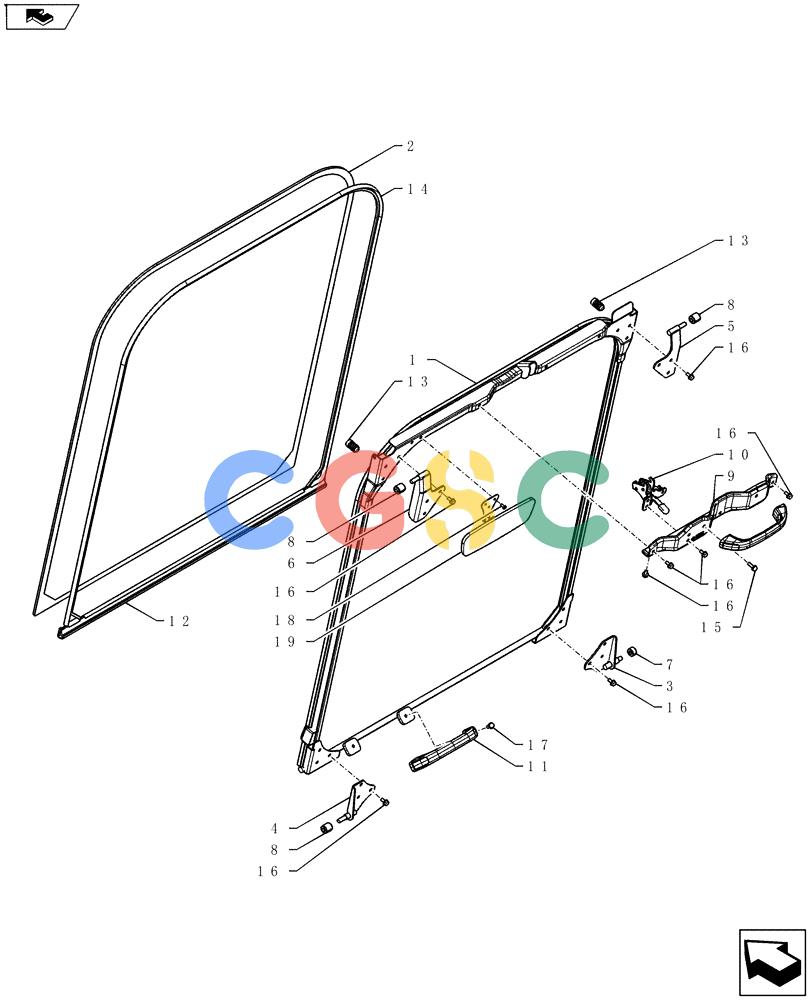

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | LQ50C00003F1 | [1] | WINDOW FRAME | KOBAssembly, Incl 1 - 17 |
| 1. | LQ50C00003S001 | [1] | FRAME | SMAssy |
| 2. | LQ50C00002S002 | [1] | GLASS | KOB |
| 3. | LQ50C00003S003 | [1] | BRACKET | SMAssy |
| 4. | LQ50C00003S004 | [1] | BRACKET | SMAssy |
| 5. | LQ50C00002S005 | [1] | BRACKET | KOBAssy |
| 6. | LQ50C00002S006 | [1] | BRACKET | KOBAssy |
| 7. | LQ50C00002S007 | [1] | ROLLER | KOB |
| 8. | LQ50C00002S008 | [3] | ROLLER | KOB |
| 9. | LQ50C00002S009 | [1] | COVER | KOB |
| 10. | LQ50C00002S010 | [1] | LOCK | KOBAssy |
| 11. | LQ50C00002S011 | [2] | HANDLE | KOB |
| 12. | LQ50C00002S013 | [1] | RUBBER SEAL | KOB |
| 13. | LQ50C00002S014 | [2] | RUBBER BLOCK | KOBStopper |
| 14. | LQ50C00002S015 | [1] | SPACER | KOB |
| 15. | LQ50C00002S016 | [2] | SCREW | KOB |
| 16. | LQ50C00001S013 | [19] | BOLT | KOB |
| 17. | LQ50C00002S018 | [2] | SCREW | KOB |
| 18. | LQ52C00010S001 | [1] | REAR VIEW MIRROR | KOB |
| 19. | LQ52C00010S002 | [2] | SCREW | KOB |
