神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.150.AB[08]) - CAB, WINDSHIELD WIPER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
430 次

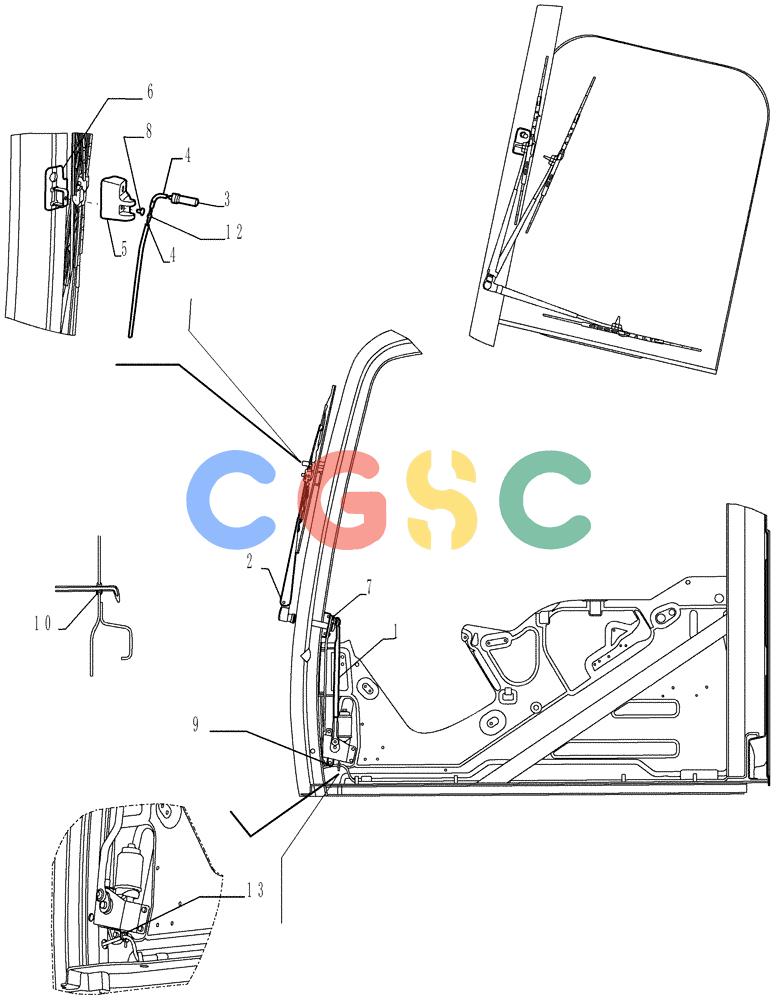

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ53C00003S001 | [1] | WIPER MOTOR | KOBAssy, Contains Ref. 8 - 15 |
| 2. | LQ53C01001F1 | [1] | WIPER ARM | KOB |
| 3. | LQ53C00003S003 | [1] | NOZZLE | KOB |
| 4. | LQ53C00003S004 | [1] | TUBE | KOB |
| 5. | LQ53C00003S005 | [1] | INLET MANIFOLD | KOB |
| 6. | LQ53C00003S006 | [1] | PACKING | KOB |
| 7. | LQ02C00031S032 | [2] | BOLT | KOB |
| 8. | LQ02C00031S030 | [1] | SCREW | KOB |
| 9. | LQ53C00003S009 | [4] | NUT | KOB |
| 10. | LQ53C00003S010 | [1] | GROMMET | KOB |
| 12. | LQ53C00003S012 | [1] | HYD CONNECTOR | KOBIncl. in Ref. 1 |
| 13. | LQ14E00014S005 | [1] | COLLAR | SMIncl. in Ref. 1 |
