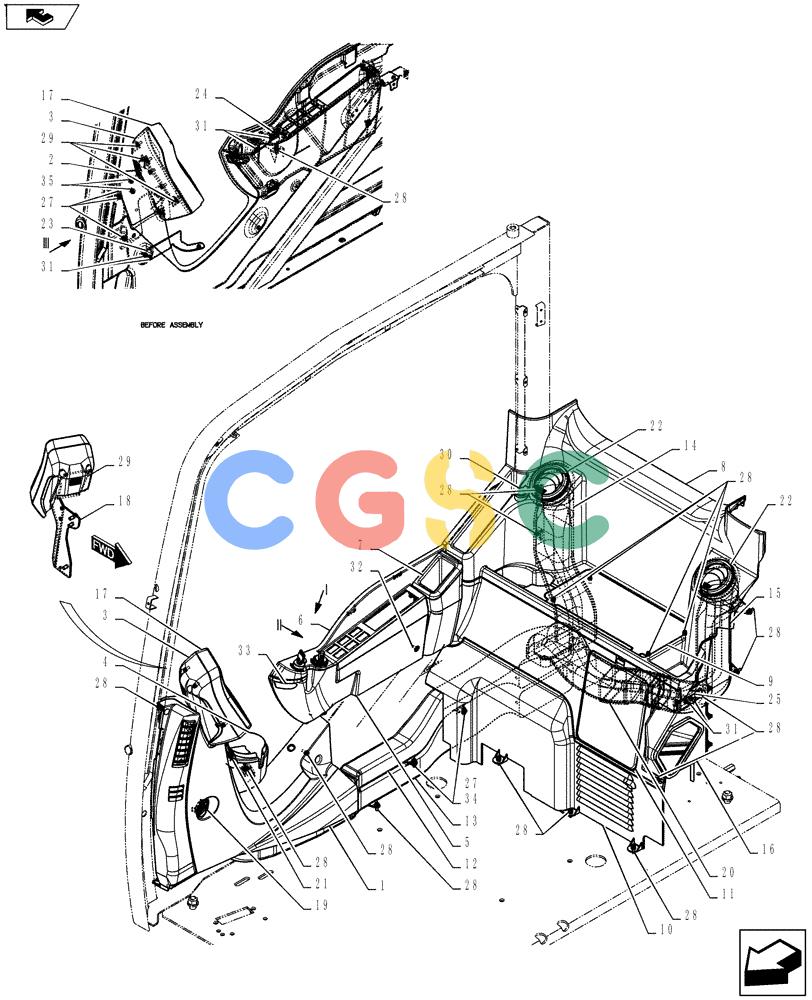

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.151.AF[01]) - CAB, INSTRUMENT CLUSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
790 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01432F2 | [1] | COVER ASSY | KOB |
| 2. | YN17M01433F1 | [1] | COVER | SMAssy. |
| 3. | YN17M01434F2 | [1] | COVER ASSY | KOB |
| 4. | YN17M01435F2 | [1] | HOLDER | KOB |
| 5. | YN17M01436F2 | [1] | COVER ASSY | KOB |
| 6. | YN17M01438F2 | [1] | COVER ASSY | KOB |
| 7. | YN17M01439F1 | [1] | COVER | SMAssy. |
| 8. | YN17M01440F2 | [1] | COVER ASSY | KOB |
| 9. | YN17M01441F1 | [1] | COVER | SMAssy. |
| 10. | YN17M01442F2 | [1] | COVER ASSY | KOB |
| 11. | YN17M01443F2 | [1] | COVER ASSY | KOB |
| 12. | YN20M01779P2 | [1] | DUCT | KOB |
| 13. | YN20M01780P2 | [1] | DUCT | KOB |
| 14. | YN20M01812P1 | [1] | DUCT | KOB |
| 15. | YN20M01813P1 | [1] | DUCT | KOB, Years: -07-MAR-14 |
| 15. | YN20M01813P2 | [1] | DUCT | KOB, Start Year: 07-MAR-14 |
| 16. | YN20M01773F2 | [1] | DUCT | KOB |
| 17. | YN59S00028F5 | [1] | INSTRUMENT CLUSTER | KOBGauge, Replaces YN59S00028F3 Superseded by part number: YN59S00028F6 |
| 18. | YN17M01481P2 | [1] | BRACKET | KOB |
| 19. | LQ58S00002P1 | [1] | HOURMETER | SM |
| 20. | YN20M01774F1 | [1] | DUCT | SMAssy. |
| 21. | PU20M01002P1 | [1] | CONVEYOR | SMGrille |
| 22. | YN20M01791P1 | [2] | CONVEYOR | SMGrille |
| 23. | YN17M01444P2 | [1] | BRACKET | KOB |
| 24. | YN17M01446P2 | [1] | BRACKET | KOB |
| 25. | YN17M01448P2 | [1] | BRACKET | KOB |
| 26. | YN17M01467P1 | [2] | SCREW | SMTapping |
| 27. | 72954868 | [22] | BOLT | IMO(ZM66C06020) Superseded by part number: ZM66C06020 |
| 28. | 72209121 | [7] | SCREW | IMO(ZM66C06016) Superseded by part number: ZM66C06016 |
| 29. | YN81S01002P1 | [1] | SEAT/SLOT,12V | SMSocket |
| 30. | ZM73C06016 | [8] | BOLT,M6x16mm - Course Thread | KOBSems |
| 31. | YN17M01162D2 | [1] | SCREW | SMSems |
| 32. | YN17M01437P1 | [1] | PLUG | SMCap |
| 33. | ZN12C06005 | [2] | NUT | KOB Superseded by part number: ZN18C06005 |
| 34. | YN17M01552P1 | [2] | RETAINER | SM |
| 35. | YN17M01449P1 | [2] | SCREW | SMTapping |
