神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.151.AF[02]) - CAB, INSTRUMENT CLUSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
559 次

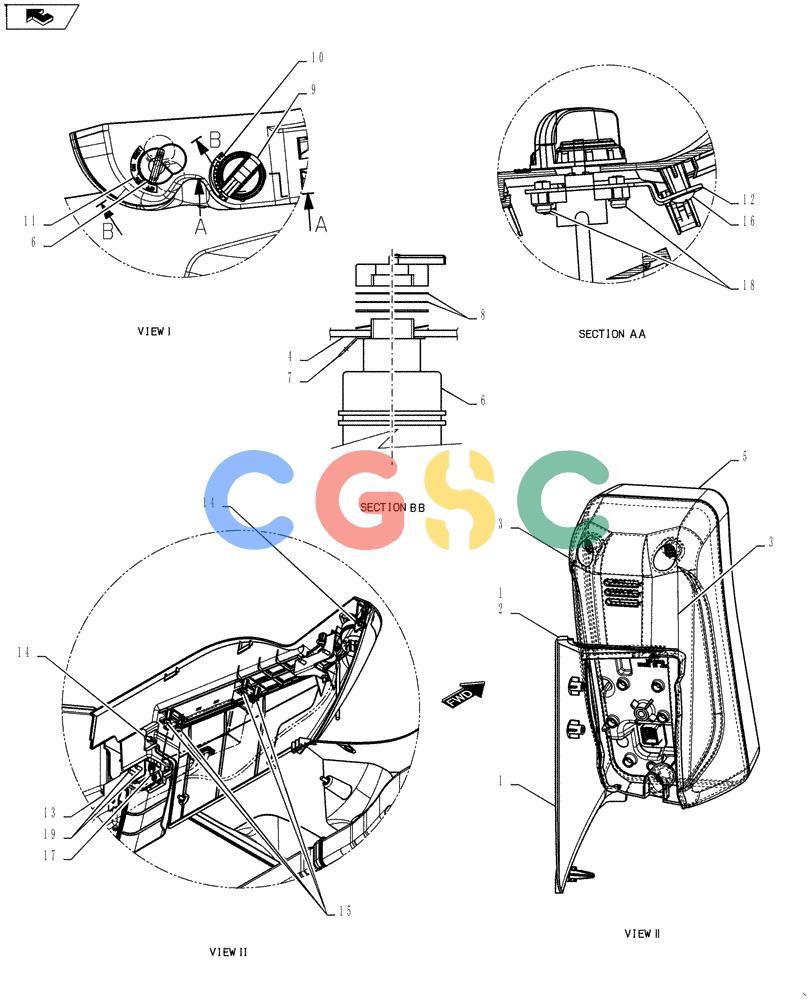

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN17M01433F1 | [1] | COVER | SMAssy. |
| 2. | YN17M01486P1 | [1] | COVER ASSY | KOB |
| 3. | YN17M01434F2 | [1] | COVER ASSY | KOB |
| 4. | YN17M01438F2 | [1] | COVER ASSY | KOB |
| 5. | YN59S00028F5 | [1] | INSTRUMENT CLUSTER | KOBGauge Superseded by part number: YN59S00028F6 |
| 6. | YN50S00026F1 | [1] | IGNITION SWITCH | KOBKey |
| 7. | YN01E01021P1 | [1] | TERMINAL | SM |
| 8. | YN17M01345P1 | [1] | WASHER | SM |
| 9. | LQ52S00025P1 | [1] | POTENTIOMETER | SM Superseded by part number: YN52S00075P1 |
| 10. | YN17M01462P1 | [1] | DECAL | SM |
| 11. | YN17M01463P1 | [1] | DECAL | SM |
| 12. | YN17M01445P1 | [1] | BRACKET | SM |
| 13. | YN17M01447P2 | [1] | BRACKET | KOB |
| 14. | YN17M01162D1 | [2] | BOLT | SMSems |
| 15. | YN17M01466P1 | [4] | SCREW | SMTapping |
| 16. | YN17M01467P1 | [2] | SCREW | SMTapping |
| 17. | ZM66C06020 | [22] | BOLT | KOBSems |
| 18. | ZM41C04012 | [2] | BOLT | KOBSems |
| 19. | ZM73C06016 | [8] | BOLT,M6x16mm - Course Thread | KOBSems |
