神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-01[00]) - BOOM INSTAL (YM02B00007F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
808 次

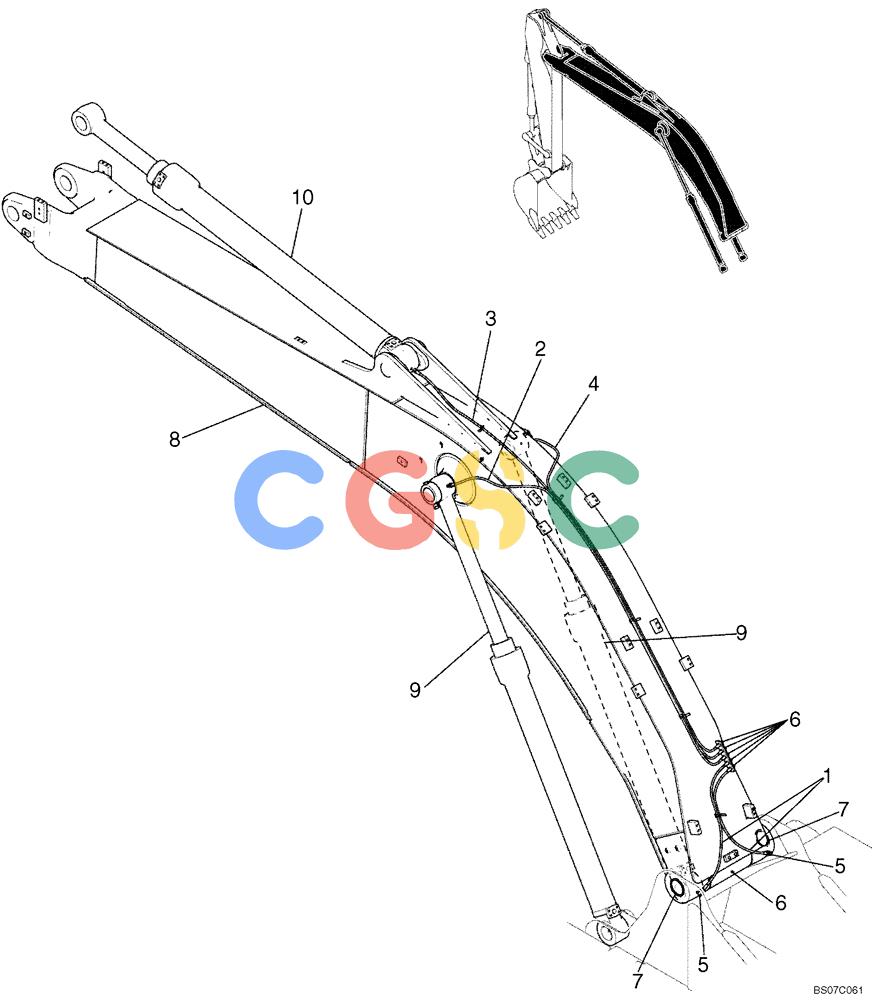

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2444R1117D088 | [2] | HOSE,6.40mm ID x 880mm L | KOB Superseded by part number: HX21E04090DY |
| 2. | 2444R1117D230 | [1] | HOSE,6.40mm ID x 2300mm L | KOB2300mm Long (90-1/2 in) |
| 3. | 2444R1117D297 | [1] | HOSE,6.40mm ID x 2970mm L | KOB2970mm Long (116-59/64 in) Superseded by part number: 2444R1117D300 |
| 4. | 2444R1117D220 | [1] | HOSE,6.40mm ID x 2200mm L | KOB2200mm Long (86-5/8 in) |
| 5. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 6. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 7. | 2445R220D17 | [1] | SEAL,85mm ID x 100mm OD x 6mm Thk | KOBDust -- ID 85 x OD 100 x Th 6mm Superseded by part number: 160484A1 |
| 8. | YM02BU0004F1 | [1] | BOOM | KOBAssembly, HOE See Figure 04-02 Superseded by part number: YM02BU0013F1 |
| 9. | YM01V00019F1 | [2] | CYLINDER | KOBBoom, See Figure 08-20 |
| 10. | YM01V00017F1 | [1] | CYLINDER ASSY. | KOBArm, See Figure 08-21 |
