神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-02[00]) - BOOM ASSEMBLY (YM02BU0004F1 & YM02BU0004F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
435 次

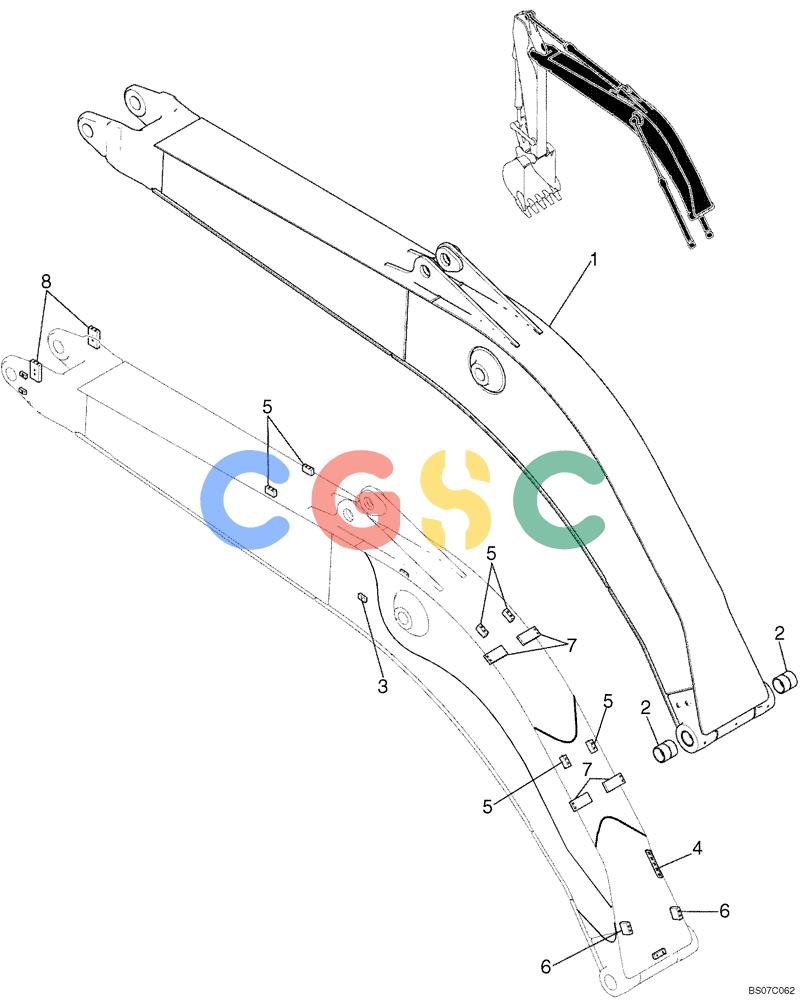

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM02BU0008P1 | [1] | HOE Boom | |
| 2. | YM02B01036P1 | [2] | BUSHING,85mm ID x 100mm OD x 90mm L | KOBUsed from date 08/18/2006 - 12/14/2007 |
| . . | YM01V01013P1 | [2] | BUSHING,85mm ID x 100mm OD x 89mm L | KOBUsed after date 12/14/2007 |
| 3. | 2416T9878 | [2] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 4. | 2418T22409 | [1] | PLATE | KOB |
| 5. | YN02B01619P1 | [6] | BLOCK,M12 Thd Hole - 75mm L x 41mm W | KOB |
| 6. | YN02B01616P1 | [2] | BLOCK | KOB75x25x65mm, Tapped |
| 7. | YN02B01882P1 | [4] | BLOCK | KOB |
| 8. | YN02BU1011P1 | [2] | SUPPORT | KOBBlock |
