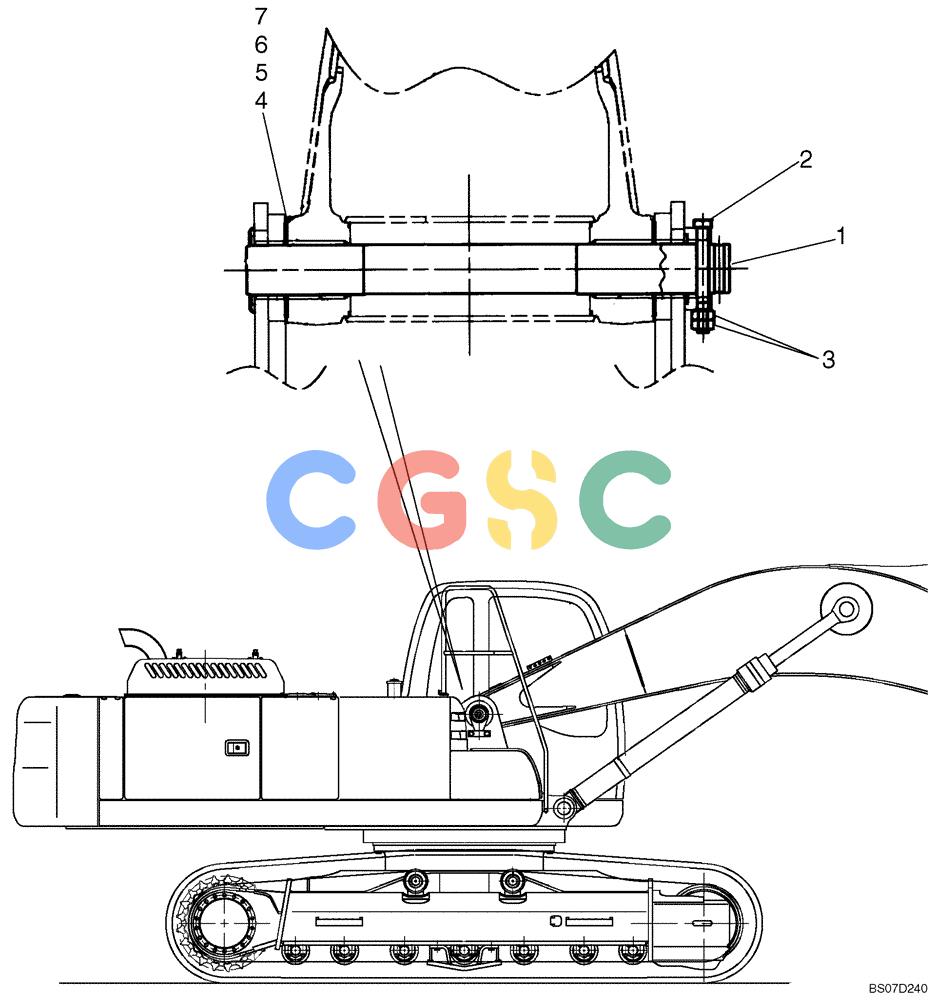

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-04[00]) - BOOM INSTAL (YB02B00072F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
536 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB02B01085P1 | [1] | PIN | KOBPin -- OD 83 ± 0.10 x 812mm Long |
| 2. | ZS18C20180 | [1] | SCREW,Hex, M20 x 180mm | KOBM20x2.5x180mm |
| 3. | ZN16C20016 | [2] | NUT | KOBNut, M20x2.50mm Superseded by part number: ZN18C20016 |
| 4. | YM02B01060P1 | [2] | SHIM,97mm ID x 180mm OD x 2mm Thk | KOBShim, (2.0) |
| 5. | YB02B01086P1 | [1] | SHIM,0.5mm Thk | KOBShim, (0.5) |
| 6. | YB02B01087P1 | [1] | SHIM | KOBShim, (1.0) |
| 7. | YB02B01088P1 | [1] | SHIM,2mm Thk | KOBShim, (2.0) |
