神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-03[00]) - BOOM INSTAL (YM02B00015F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
436 次

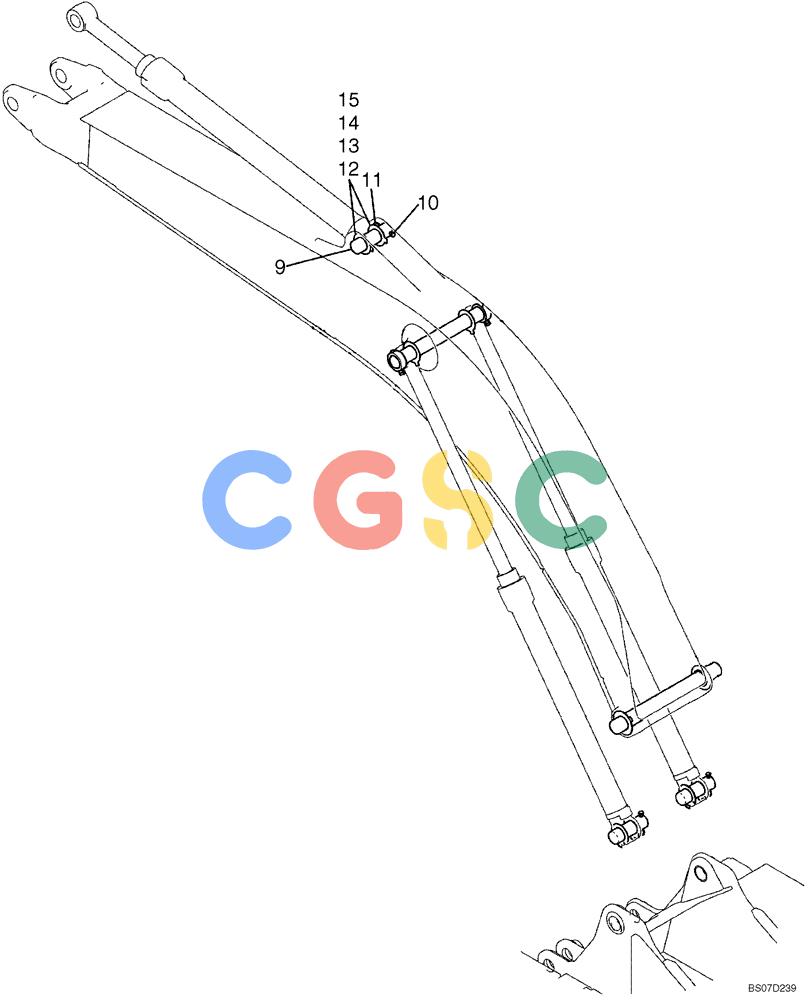

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9. | YM02B01069P1 | [1] | PIN,80mm OD x 281mm L | KOBOD 80 x 281mm Long |
| 10. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| 11. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 12. | B16T0442D52 | [1] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| 13. | B16T0442D39 | [1] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| 14. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 15. | LB12B01026D1 | [2] | SHIM,82mm ID x 150mm OD x 2mm Thk | KOBID 82 x OD 150 x Th 2.0mm |
