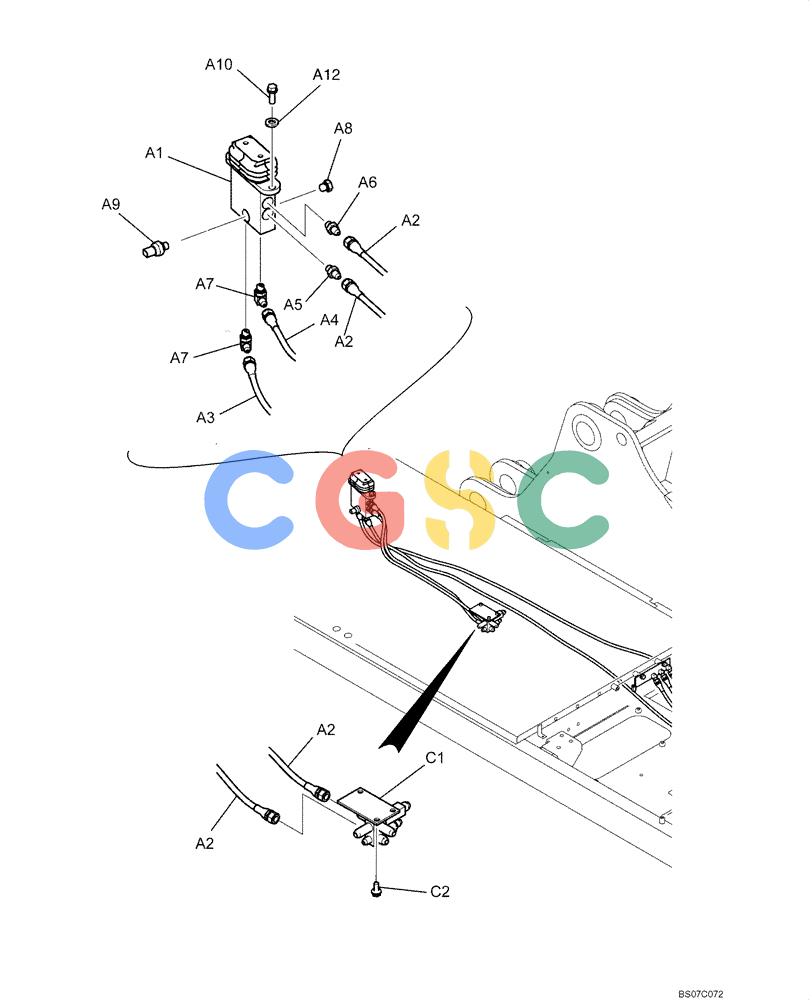

| A1. | YN30V00080F1 | [1] | VALVE | KOBSee Figure 08-25 |
| A2. | 2420R349D090 | [2] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| A3. | 2420R349D160 | [1] | HOSE,6.35mm ID x 1600mm L | KOB |
| A4. | 2420R349D335 | [1] | HOSE | KOB3350mm Long (131-7/8 in) |
| A5. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.8mm x OD 13.2mm, Not Shown |
| A6. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH22X04000), SAE No. 4-1, Not Shown Superseded by part number: 165202, 72186131 |
| A7. | ZH32X04000 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A8. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| A9. | LC52S00019P1 | [1] | SENSOR | SMPressure (Low Pressure) (Incls. O-Ring ZD12P01100) |
| A10. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| A11. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| . . | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS(Part of ZH22X04006), SAE No. 6-1, Not Shown Superseded by part number: 9617873 |
| A12. | ZW16P10000 | [2] | WASHER | KOBID 10.5 x OD 21 x Th 2.0mm |
| C1. | YN64H01337P1 | [1] | BLOCK | SMManifold |
| C2. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
