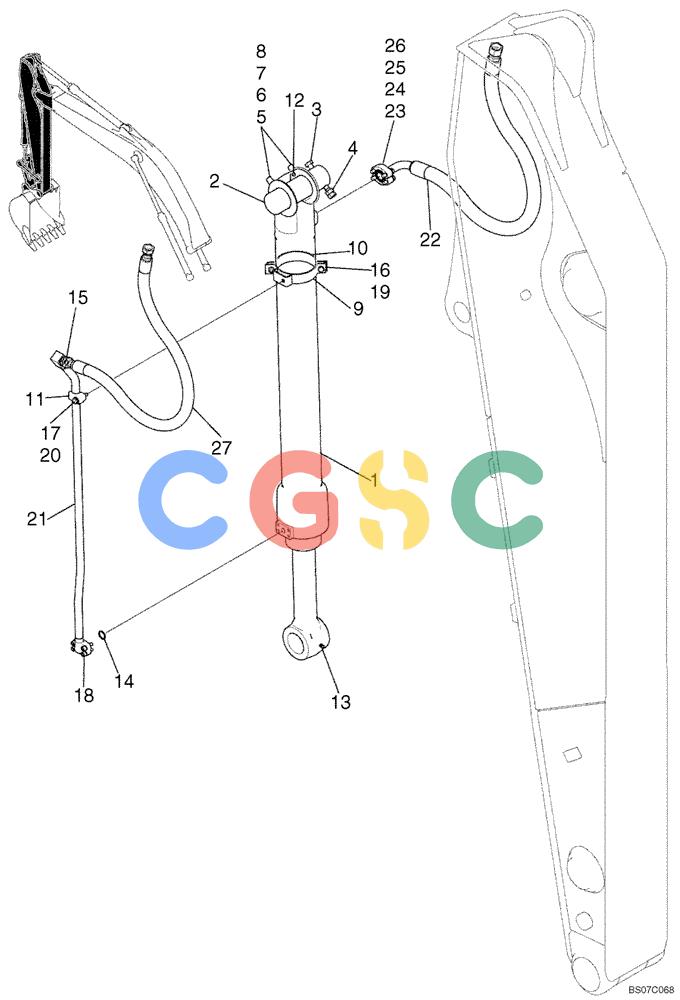

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (04-11[00]) - HYDRAULIC LINES - ARM (STD) (YM43H00012F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
135 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM01V00018F1 | [1] | HYDRAULIC CYLINDER | KOBBucket Cylinder Assembly, See Figure 08-22 |
| 2. | YM12B01064P1 | [1] | PIN,70mm OD x 243mm L | KOBOD 70 x 243mm Long |
| 3. | HS18C14130G1 | [1] | CAPSCREW,M14 x 130mm, Cl 10.9 | KOBSCREW M14x2.0x130mm |
| 4. | ZN18C14011 | [2] | NUT | KOBM14x2.0mm |
| 5. | YT02B01008D1 | [1] | SHIM,0.5mm Thk | KOB(0.5) |
| 6. | B16T0442D93 | [1] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOBID 72 x OD 120 x Th 0.9mm |
| 7. | YT02B01008D3 | [1] | SHIM,2.0mm Thk | KOB(1.6) |
| 8. | YM12B01058D1 | [2] | SHIM | KOB(2.0) |
| 9. | YM43HU1005P1 | [1] | BAND | KOB |
| 10. | YM43HU1004P1 | [1] | BAND | KOB |
| 11. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| 12. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 13. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 14. | ZD12P02600 | [1] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 15. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 16. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 17. | ZS18C10055 | [1] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| 18. | ZS28C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| 19. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 20. | ZW16H10000 | [1] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 21. | YM43H01013P1 | [1] | TUBE,1214, 81 mm L | KOB1214mm Long (47-51/64 in) |
| 22. | YN43H01414DA | [1] | HOSE | KOB1650mm Long (64-31/32 in) |
| 23. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 24. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew -- M10x1.50x35mm |
| 25. | ZW26K12000 | [4] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 26. | ZD12P02600 | [1] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 27. | ZX50H12160 | [1] | HYDRAULIC HOSE | KOB1600mm Long (63 in) |
