神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-09[00]) - VALVE ASSEMBLY, BYPASS (YN30V00120F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
591 次

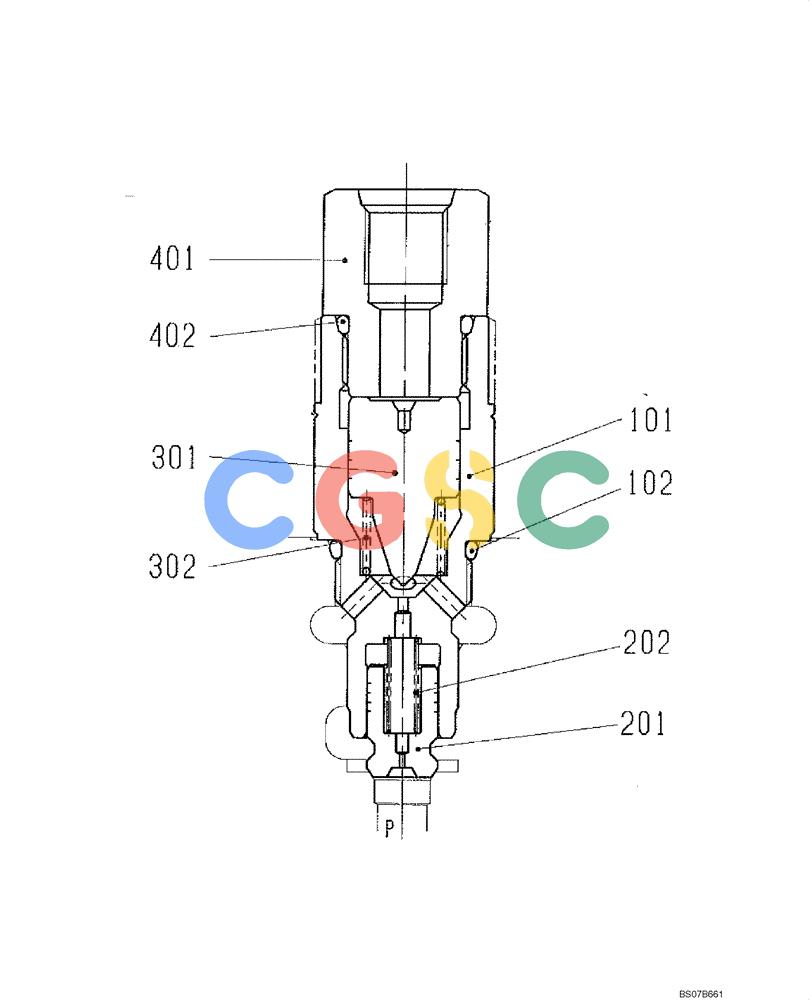

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00120F2 | [1] | VALVE | KOBControl Bypass |
| 101. | YN30V00120S101 | [1] | PLUG | KOBPlug |
| 102. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 201. | YN30V00120S201 | [1] | POPPET | KOBPoppet |
| 202. | YN30V00120S202 | [1] | SPRING | KOBSpring |
| 301. | YN30V00120S301 | [1] | POPPET | KOBPoppet |
| 302. | YN30V00120S302 | [1] | SPRING | KOBSpring |
| 401. | YN30V00120S401 | [1] | PLUG | KOBPlug |
| 402. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| K. | YN30V00120R100 | [1] | REPAIR KIT | KOBKit, Repair Contains 301x1, 402x1 |
