神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-10[00]) - MOTOR ASSY (SWING) (YM15V00006F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
975 次

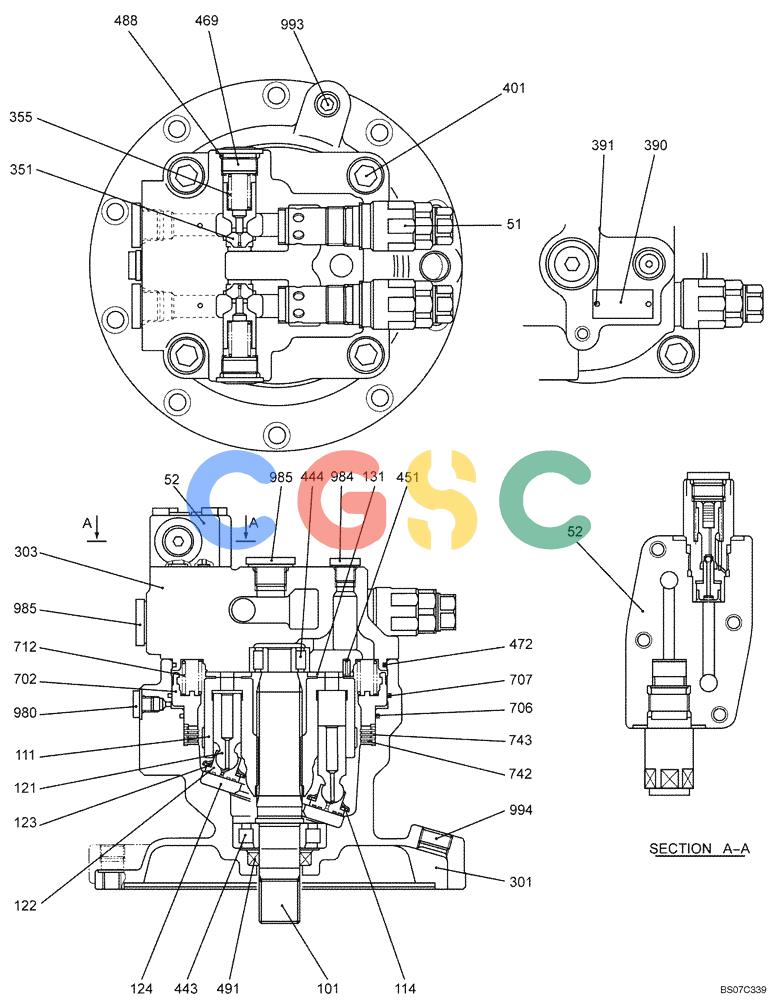

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM15V00006F1 | [1] | HYDRAULIC MOTOR | KOB(Swing) |
| 51. | YN22V00014F1 | [2] | VALVE | KOBRelief -- See Figure 08-27 |
| 52. | YN20V00004F1 | [1] | VALVE | KOBSee Figure 08-13 |
| 101. | YN15V00025S101 | [1] | SHAFT | KOB |
| 111. | YN15V00025S111 | [1] | CYLINDER | KOB |
| 114. | YN15V00025S114 | [1] | SPRING | KOB |
| 121. | NA | [9] | NOT SERVICED | FORPiston |
| 122. | NA | [9] | NOT SERVICED | FORShoe |
| 123. | YN15V00025S123 | [1] | PLATE | KOBSet |
| 124. | YN15V00025S124 | [1] | PLATE | KOBShoe |
| 131. | YN15V00025S131 | [1] | PLATE | KOBValve |
| 301. | YN15V00035S301 | [1] | BOX | SM |
| 303. | NA | [1] | NOT SERVICED | FORCase |
| 351. | YN15V00025S351 | [2] | SPOOL | KOB |
| 355. | YN15V00002S355 | [2] | SPRING | KOB |
| 390. | NA | [1] | NOT SERVICED | FORName Plate |
| 391. | 2437U407S983 | [2] | RIVET | KOB |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 443. | YN15V00002S011 | [1] | ROLLER BEARING | KOB |
| 444. | LQ15V00008S010 | [1] | ROLLER BEARING | KOB |
| 451. | NA | [2] | NOT SERVICED | FORPin |
| 469. | YN15V00002S012 | [2] | PLUG | KOB |
| 472. | YN15V00025S489 | [1] | O-RING,3.5mm Thk x 173mm ID, 75 Duro | KOB |
| 488. | ZD12P02800 | [2] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 491. | YN15V00035S491 | [1] | OIL SEAL | SMSeal, Oil |
| 702. | YN15V00002S014 | [1] | PISTON | KOBBrake |
| 706. | 2441U736S706 | [1] | O-RING | KOB |
| 707. | 2415U188S707 | [1] | O-RING | KOB |
| 712. | YN15V00025S712 | [16] | SPRING,ID1.1mm : OD1.8mm : W=3.7mm (this is spring) | KOB |
| 742. | YN15V00025S742 | [3] | PLATE,ID14mm : OD15.5mm : W=1.7mm | KOB |
| 743. | YN15V00025S743 | [4] | PLATE,ID14mm : OD15.5mm : W=2mm | KOB |
| 980. | YN15V00035S980 | [1] | PLUG | SM |
| 984. | YN15V00035S984 | [1] | PLUG | SM |
| 985. | YN15V00035S985 | [3] | PLUG | SM |
| 993. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 994. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| K. | YN15V00025R100 | [1] | REPAIR KIT | KOBContains 121x9, 122x9 |
| K. | YN15V00025R200 | [1] | REPAIR KIT | KOBContains 303x1, 451x2 |
| K. | YM15V00006R100 | [1] | KIT | SMRepair, Contains 472x1, 488x2, 491x1, 706x1, 707x1 |
