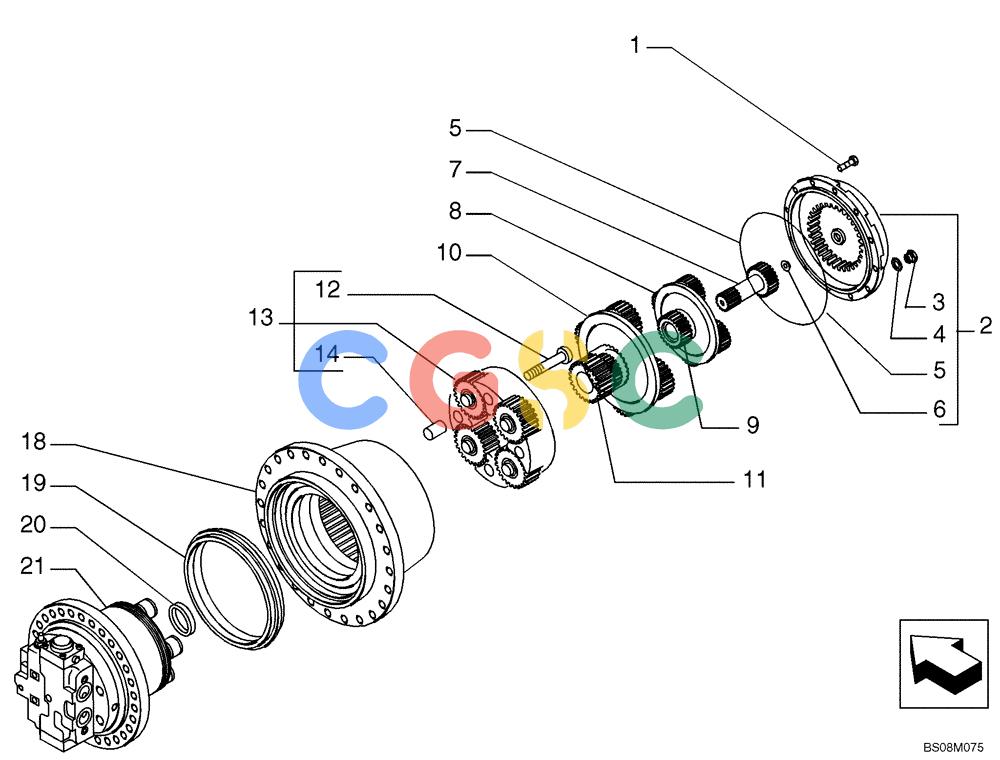

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-11[01]) - MOTOR ASSEMBLY (PROPEL) (YM15V00007F1), PAGE 1 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1036 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM15V00007F1 | [1] | HYDRAULIC MOTOR | KOBAssembly, Propel, Page 1 of 3 |
| . . | 87357868 | [1] | HYDRAULIC MOTOR,87.3CC | SM |
| 1. | 14420174 | [10] | SCREW,M10 x 25mm, Cl 12.9 | IMOScrew, M10x25mm |
| 2. | 71467815 | [2] | KIT | SMKit |
| 3. | 71418385 | [2] | PLUG | TORPlug Superseded by part number: 76592969 |
| 4. | 71418386 | [2] | WASHER | LECWasher |
| 5. | 71470185 | [1] | SEAL | SMGasket |
| 6. | 71471056 | [1] | BRAKE PAD | SMBrake, Pad |
| 7. | 72211190 | [1] | GEAR | SMGear |
| 8. | 72211191 | [1] | KIT | SMKit |
| 9. | 71471057 | [1] | GEAR | SMGear |
| 10. | 71469385 | [1] | KIT | SMKit |
| 11. | 71469390 | [1] | GEAR | SMGear Superseded by part number: A4339387 |
| 12. | 71418393 | [4] | SCREW | TORScrew |
| 13. | 71469387 | [1] | KIT | SMKit Superseded by part number: V5039319 |
| 14. | 71471058 | [4] | BUSHING | SMBushing, M18x60mm |
| 18. | 71469389 | [1] | KIT | SMKit |
| 19. | 71418383 | [1] | SEAL | TORGasket |
| 20. | 71471059 | [1] | SPACER | SMSpacer |
| 21. | 72211194 | [1] | HYDRAULIC MOTOR | SMHydraulic Motor Assembly |
