神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-13[00]) - VALVE ASSY, (SWING-REACTIONLESS) (YN20V00004F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
693 次

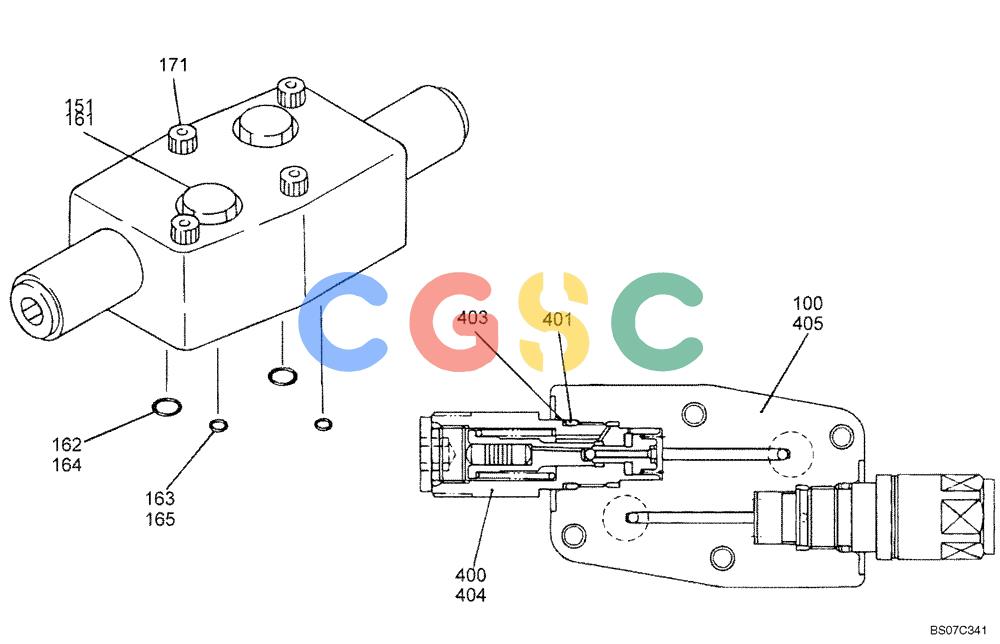

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN20V00004F1 | [1] | VALVE | KOBAssembly, Swing-Reactionless |
| 100. | LQ15V00001S100 | [1] | CASE | KOB |
| 151. | YW30V00001S157 | [2] | PLUG | KOB |
| 161. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 162. | ZD12P01200 | [2] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 163. | ZD12P00600 | [2] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 171. | ZS23C08055 | [4] | CAPSCREW,Hex Socket Head, M8 x 55mm | KOBSCREW M08x1.25x55mm |
| 400. | YN20V00004S400 | [2] | VALVE | KOB |
| 401. | ZD12P02000 | [2] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 403. | ZD85P02000 | [2] | RING | KOBBack-Up -- ID 20 x OD 24 x Th 1.25mm |
