神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-14-00[00]) - PUMP ASSEMBLY (YM10V00005F1 & YM10V00005F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
690 次

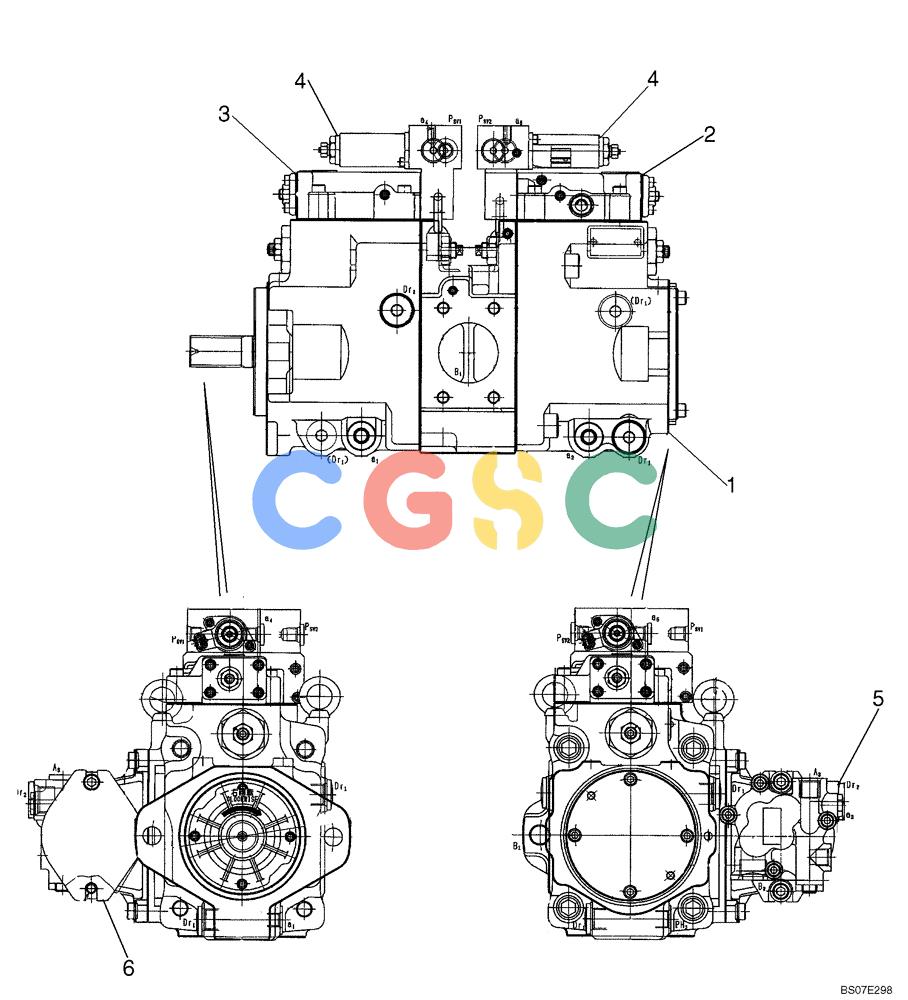

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V00005F1 | [1] | HYDRAULIC PUMP | SMAssembly, Incls. Refs. 1 - 6 Superseded by part number: YM10V00005F5 |
| 1. | YM10V00006F1 | [1] | HYDRAULIC PUMP | SMAssembly, See Figure 08-14-01 Superseded by part number: YM10V00006F2 |
| 2. | YM10V01002F1 | [1] | SPEED GOVERNOR | SMRegulator Assembly, See Figure 08-14-02 Superseded by part number: YM10V01002F5 |
| 3. | YM10V01002F2 | [1] | SPEED GOVERNOR | SMRegualtor Assembly, See Figure 08-14-03 Superseded by part number: YM10V01002F6 |
| 4. | YN35V00052F1 | [2] | VALVE | KOBSolenoid, See Figure 08-14-04 Superseded by part number: YN35V00054F1 |
| 5. | YX10V00004F3 | [1] | HYDRAULIC PUMP | SMGear See Figure 08-14-05 |
| 6. | YB46W00001F2 | [1] | GEAR | KOBCase Assembly, See Figure 08-14-06 (Use oring ZD12G09500 at attach point) |
| . . | YM10V00005F2 | [1] | HYDRAULIC PUMP | SMAssembly, Incls. Refs. 1 - 6 Superseded by part number: YM10V00005F5 |
| 1. | YM10V00006F2 | [1] | HYDRAULIC PUMP | SMAssembly, See Figure 08-14-01 |
