神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-14-02[00]) - REGULATOR ASSEMBLY (YM10V01002F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
191 次

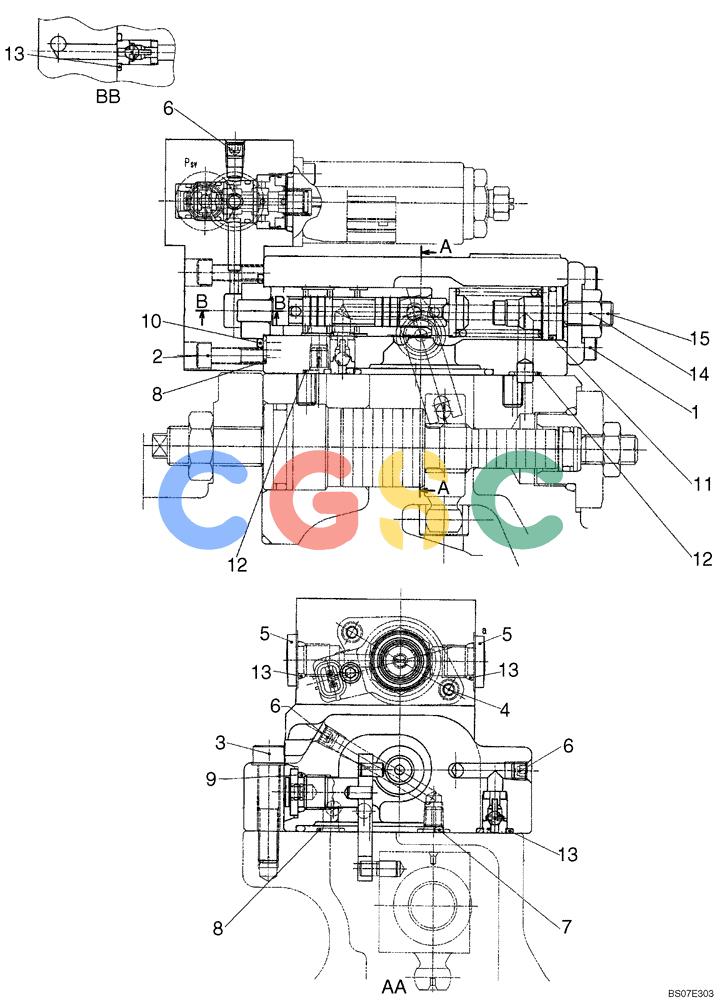

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V01002F1 | [1] | SPEED GOVERNOR | SMRegulator Assembly Superseded by part number: YM10V01002F5 |
| 1. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBM06x1.0x16mm |
| 2. | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm | KOBM06x1.0x30mm |
| 3. | ZS28C08040 | [4] | SCREW,Hex Socket Head, M8 x 40mm | KOBM08x1.25x40mm |
| 4. | YX35V00002S171 | [2] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 5. | YW30V00001S157 | [2] | PLUG | KOB |
| 6. | 2441U722S490 | [9] | PLUG | KOB1/16" NPTF |
| 7. | YM10V01002S708 | [1] | O-RING | SM |
| 8. | YX10V00003S015 | [5] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 9. | YT10V00003S711 | [1] | O-RING | KOB |
| 10. | YN10V01006S019 | [1] | O-RING | KOB |
| 11. | YT10V00003S708 | [1] | O-RING | KOB |
| 12. | YN10V01006S013 | [2] | O-RING | KOB |
| 13. | YT10V00003S710 | [4] | O-RING | KOB |
| 14. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 15. | YF10V01001S924 | [1] | SCREW | KOB |
| K. | 2437U219S41 | [1] | REPAIR KIT | KOB |
