神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-15[00]) - VALVE ASSY, SOLENOID (YN35V00047F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
622 次

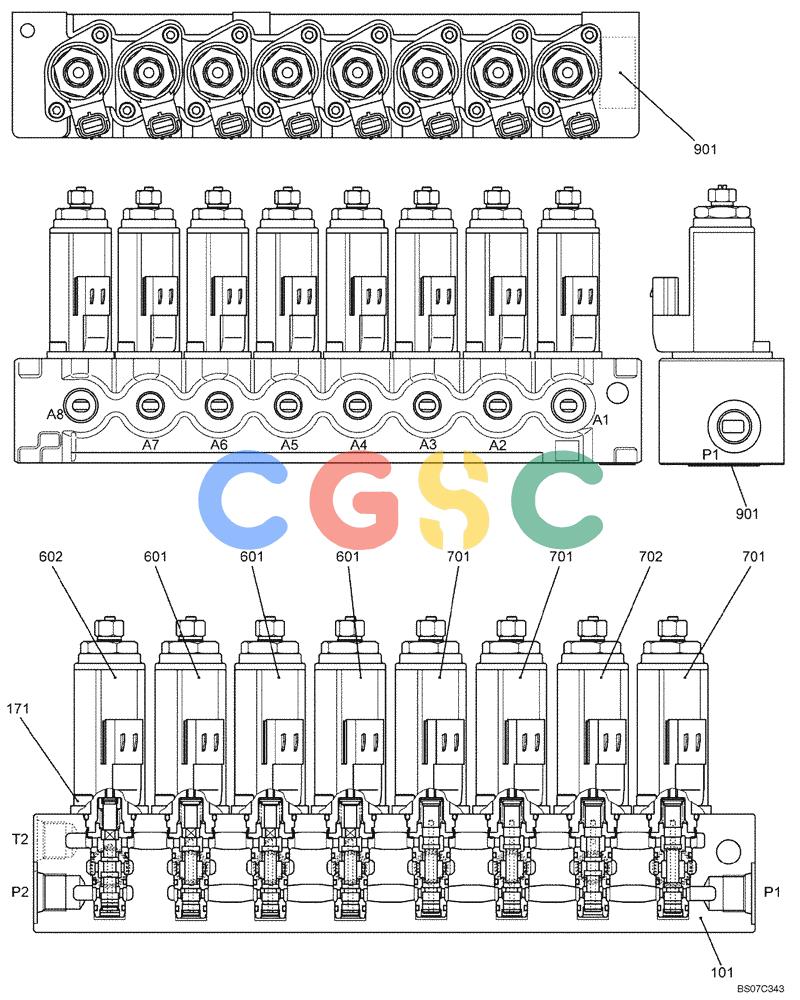

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00047F1 | [1] | HYDRAULIC VALVE | SMSolenoid Superseded by part number: YN35V00047F3 |
| 101. | YN35V00047S101 | [1] | CASE | KOB |
| 171. | YN35V00047S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | SMM05x0.8mm Superseded by part number: ZS23C05012 |
| 601. | YN35V00048F1 | [3] | SOLENOID VALVE | KOBP1 Unload, P2 Unload, Travel Straight Solenoid, See Figure 08-16 |
| 602. | YN35V00049F1 | [1] | SOLENOID VALVE | KOBArm 2 Speed Solenoid, See Figure 08-17 |
| 701. | YN35V00050F1 | [3] | SOLENOID VALVE,Cartridge W/Coil | KOBAttachment Boost, Travel 1, 2 Speed, Lever Lock, Solenoid, See Figure 08-18 Superseded by part number: YN35V00061F1 |
| 702. | YN35V00051F1 | [1] | SOLENOID VALVE | KOBSwing Parking Solenoid, See Figure 08-19 |
| 901. | NA | [1] | NOT SERVICED | FORName Plate |
