神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-20[00]) - CYLINDER ASSY, BOOM (YM01V00019F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
223 次

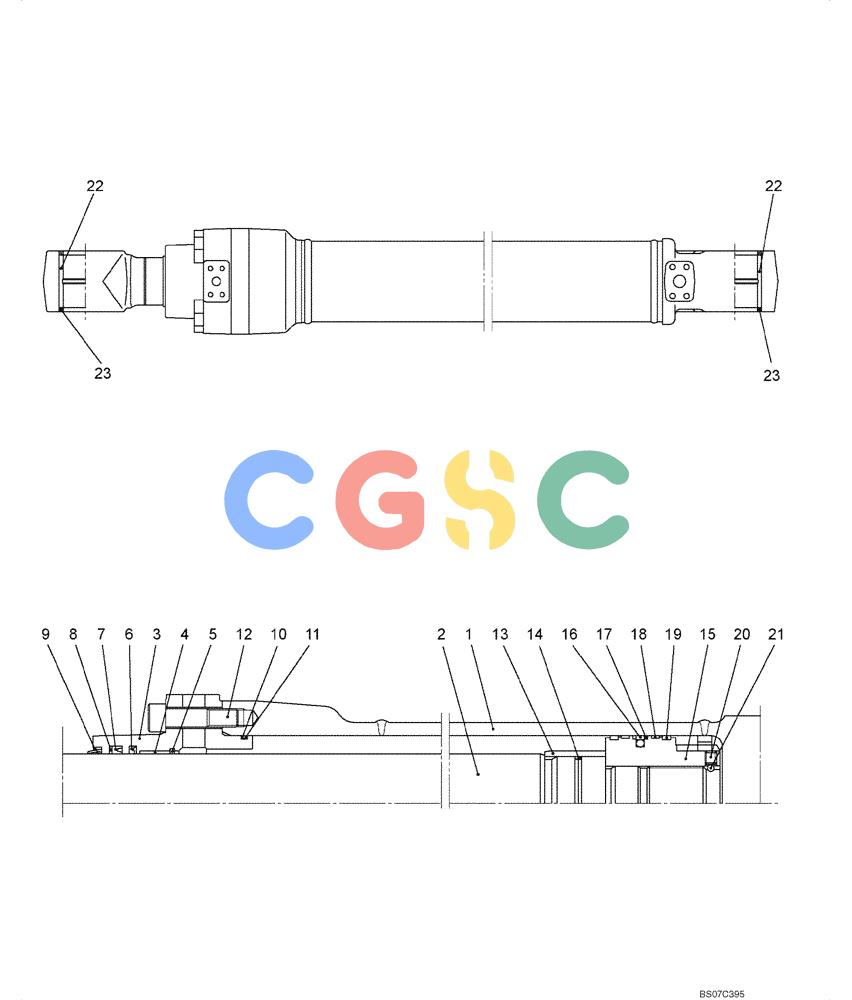

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM01V00019F1 | [1] | CYLINDER | KOBBoom Assembly |
| 1. | NA | [1] | NOT SERVICED | FORTube |
| 2. | NA | [1] | NOT SERVICED | FORRod |
| 3. | YM01V00019S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1109S14 | [1] | BUSHING | KOB |
| 5. | 2438U1105S5 | [1] | SNAP RING | KOB |
| 6. | YN01V00153S006 | [1] | RING | KOBBuffer |
| 7. | YN01V00153S007 | [1] | RING | KOBU-Ring |
| 8. | 2438U1105S8 | [1] | RING | KOB |
| 9. | 2438U1105S35 | [1] | RING | KOB |
| 10. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 11. | 2438U1949S12 | [1] | RING | KOBBack-Up |
| 12. | ZS23C14075 | [12] | CAPSCREW,Hex Socket Head, M14 x 75mm | KOBSCREW M14x2.0x75mm |
| 13. | YM01V00006S013 | [1] | BEARING | KOBCushion |
| 14. | YM01V00006S014 | [1] | SEAL | KOB |
| 15. | YM01V00019S015 | [1] | PISTON | KOB |
| 16. | 2438U716S23 | [1] | SEAL | KOBSEALRING |
| 17. | YM01V00006S017 | [2] | BACK-UP RING | KOB |
| 18. | YM01V00019S018 | [2] | RING | KOBSlide |
| 19. | 2438U1949S17 | [2] | SLIDE | KOB |
| 20. | 2438U986S18 | [1] | SET SCREW | KOB |
| 21. | 2436U281S37 | [1] | BALL | KOB |
| 22. | YM01V01013P1 | [4] | BUSHING,85mm ID x 100mm OD x 89mm L | KOBBushing |
| 23. | 2438U941S3 | [4] | DUST CAP | KOB |
| K. | YM01V00019R100 | [1] | SEAL KIT | KOBRod Side Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| K. | YM01V00019R200 | [1] | SEAL KIT | KOBPiston Side Contains Items 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00019R300 | [1] | REPAIR KIT | KOBAll (Rod & Piston) Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00019R400 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 1X1, 22X1, 23X2 |
| K. | YM01V00019R500 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 2X1, 22X1, 23X2 |
