神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-21[00]) - CYLINDER ASSY, ARM (YM01V00017F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
190 次

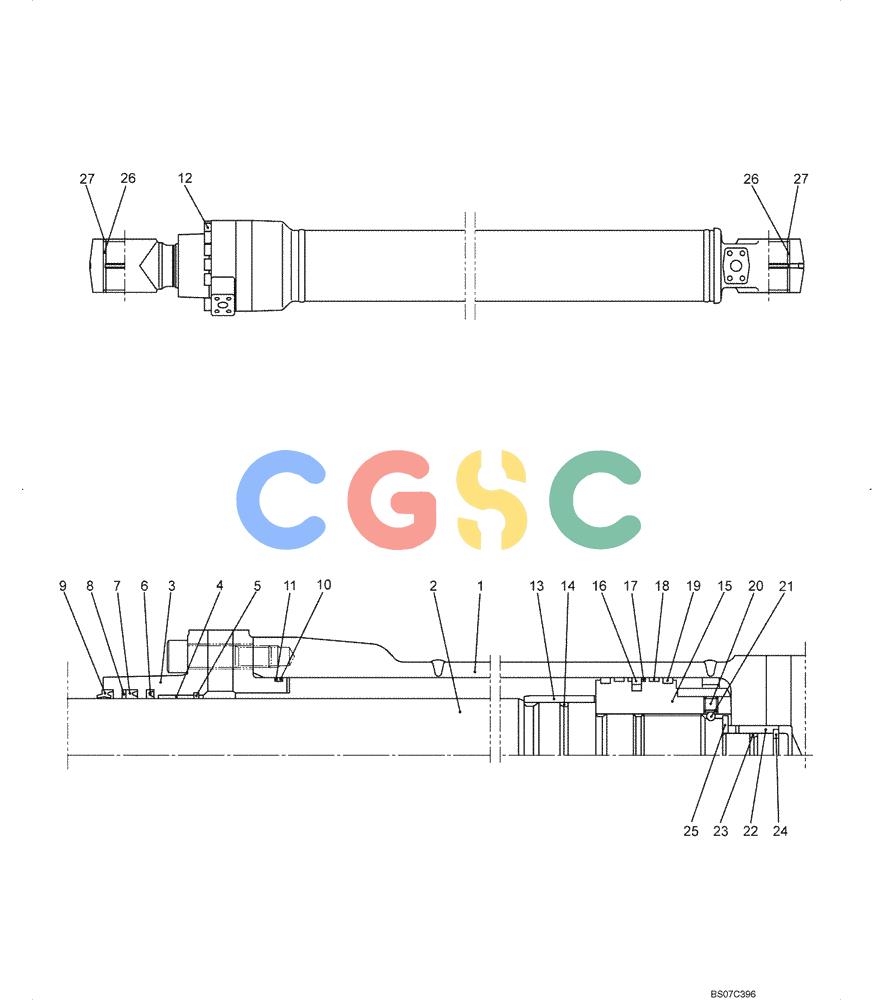

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM01V00017F1 | [1] | CYLINDER ASSY. | KOBArm |
| 1. | NA | [1] | NOT SERVICED | FORTube |
| 2. | NA | [1] | NOT SERVICED | FORRod |
| 3. | LQ01V00013S003 | [1] | BASE PLATE | KOB |
| 4. | 2438U999S4 | [1] | BUSHING | KOB |
| 5. | 2438U999S5 | [1] | RING | KOB |
| 6. | YM01V00017S006 | [1] | RING | KOBRing, Buffer |
| 7. | YM01V00017S007 | [1] | RING | KOBU-Ring |
| 8. | 2438U999S8 | [1] | RING | KOB |
| 9. | 2438U1135S35 | [1] | RING | KOB |
| 10. | ZD12G12000 | [1] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 11. | 2438U1102S12 | [1] | O-RING | KOB |
| 12. | ZS23C16075 | [12] | SCREW,Hex Socket Head, M16 x 75mm | KOBM16x2.0x75mm |
| 13. | YM01V00008S013 | [1] | BEARING | KOBCushion |
| 14. | LQ01V00005S014 | [1] | SEAL | KOBCushion |
| 15. | LQ01V00030S014 | [1] | PISTON | KOB |
| 16. | 2438U675S20 | [1] | RING | KOB |
| 17. | YM01V00008S017 | [2] | RING | KOB |
| 18. | LQ01V00030S017 | [2] | RING | KOB |
| 19. | 2438U675S28 | [2] | RING | KOB |
| 20. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 21. | 2436U330S16 | [1] | BALL | KOB |
| 22. | 2438U1948S24 | [1] | BEARING | KOB |
| 23. | LQ01V00007S025 | [1] | SEAL | KOB |
| 24. | 2438U1104S25 | [2] | STOP | KOB |
| 25. | 2438U1948S27 | [1] | RING | KOB |
| 26. | YM01V01011P1 | [4] | BUSHING,80mm ID x 90mm OD x 54.5mm L | KOBBushing |
| 27. | 2438U1102S31 | [4] | SEAL | KOB |
| K. | YM01V00017R100 | [1] | REPAIR KIT | KOBKit, Repair Rod Side Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| K. | LQ01V00030R200 | [1] | REPAIR KIT | KOBPiston Side Contains Items 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00017R300 | [1] | REPAIR KIT | KOBAll (Rod & Piston) Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00017R400 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 1X1, 26X2, 27X2 |
| K. | YM01V00017R500 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 2X1, 26X2, 27X2 |
