神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-22[00]) - CYLINDER ASSY, BUCKET (YM01V00018F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
417 次

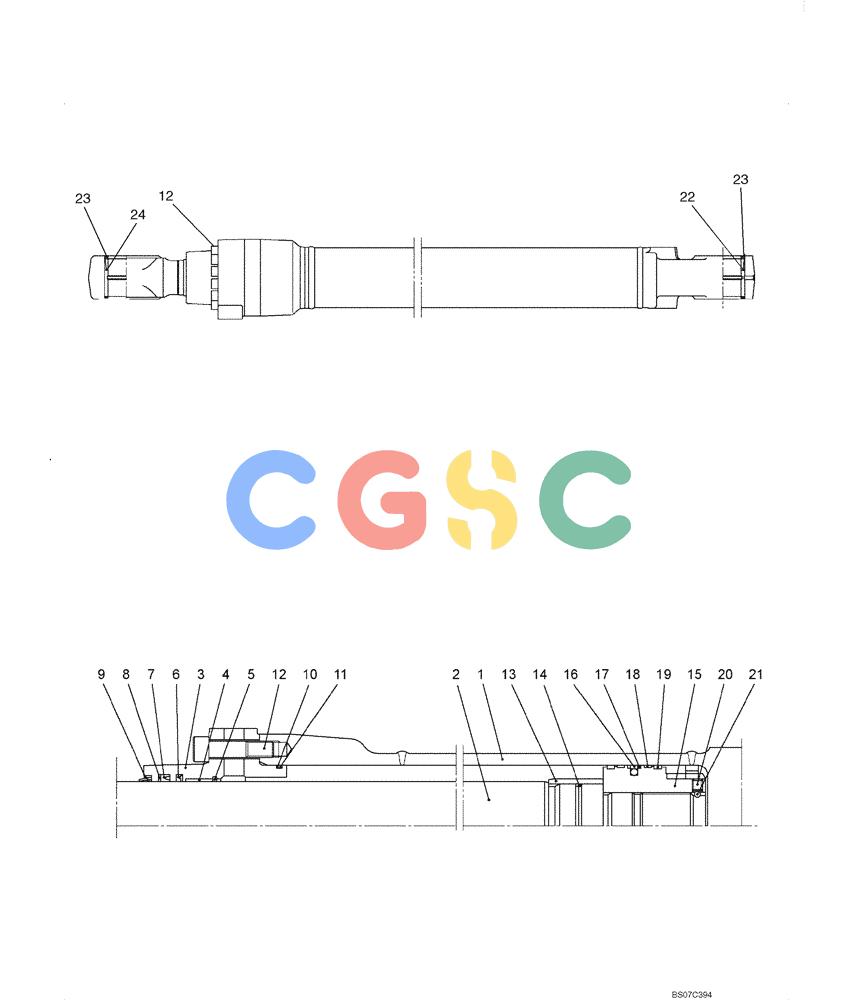

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM01V00018F1 | [1] | HYDRAULIC CYLINDER | KOBBucket Assembly, Incl 1 - 24 |
| 1. | NA | [1] | NOT SERVICED | FORTube |
| 2. | NA | [1] | NOT SERVICED | FORRod |
| 3. | YM01V00018S003 | [1] | CYLINDER HEAD | KOBCylinder, Head |
| 4. | 2438U1949S4 | [1] | BUSHING | KOB |
| 5. | 2438U1949S5 | [1] | RING | KOB |
| 6. | YM01V00018S006 | [1] | RUBBER BLOCK | KOBRing, Buffer |
| 7. | YM01V00018S007 | [1] | HALF-RING | KOBU-Ring |
| 8. | 2438U814S32 | [1] | RING | KOB |
| 9. | LP01V00007S009 | [1] | RING | KOBWiper |
| 10. | ZD12G10000 | [1] | O-RING,99.40mm ID x 105.60mm OD x 3.10mm | KOBID 99.40 ± 0.85 x OD 105mm |
| 11. | PZ01V00003S008 | [1] | RING | KOBBack-Up |
| 12. | ZS23C14065 | [12] | BOLT,Hex Socket Head, M14 x 65mm | KOBM14x2.0x65mm |
| 13. | YM01V00009S013 | [1] | BEARING | KOB |
| 14. | YM01V00009S014 | [1] | SEAL | KOB |
| 15. | YM01V00018S015 | [1] | PISTON | KOBPiston |
| 16. | 2438U676S21 | [2] | RING | KOB |
| 17. | YM01V00009S017 | [2] | RING | KOBBack-Up |
| 18. | YM01V00018S018 | [2] | RING | KOBRing |
| 19. | 2438U814S23 | [1] | RING | KOB |
| 20. | 2438U986S18 | [1] | SET SCREW | KOB |
| 21. | 2436U281S37 | [4] | BALL | KOB |
| 22. | YM01V01004P1 | [4] | BUSHING,70mm ID x 80mm OD x 90mm W | KOB |
| 23. | 2438U1949S23 | [4] | RING | KOB |
| 24. | YM01V01010P1 | [1] | BUSHING,70.28mm ID x 80mm OD x 90mm L | KOB |
| K. | YM01V00018R100 | [1] | REPAIR KIT | KOBKit, Repair Rod Side Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| K. | YM01V00018R200 | [1] | REPAIR KIT | KOBKit, Repair Piston Side Contains Items 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00018R300 | [1] | REPAIR KIT | KOBAll (Rod & Piston) Contains Items 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2 |
| K. | YM01V00018R400 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 1X1, 22X1, 23X2 |
| K. | YM01V00018R500 | [1] | REPAIR KIT | KOBKit, Repair Contains Items 2X1, 24X1, 23X2 |
