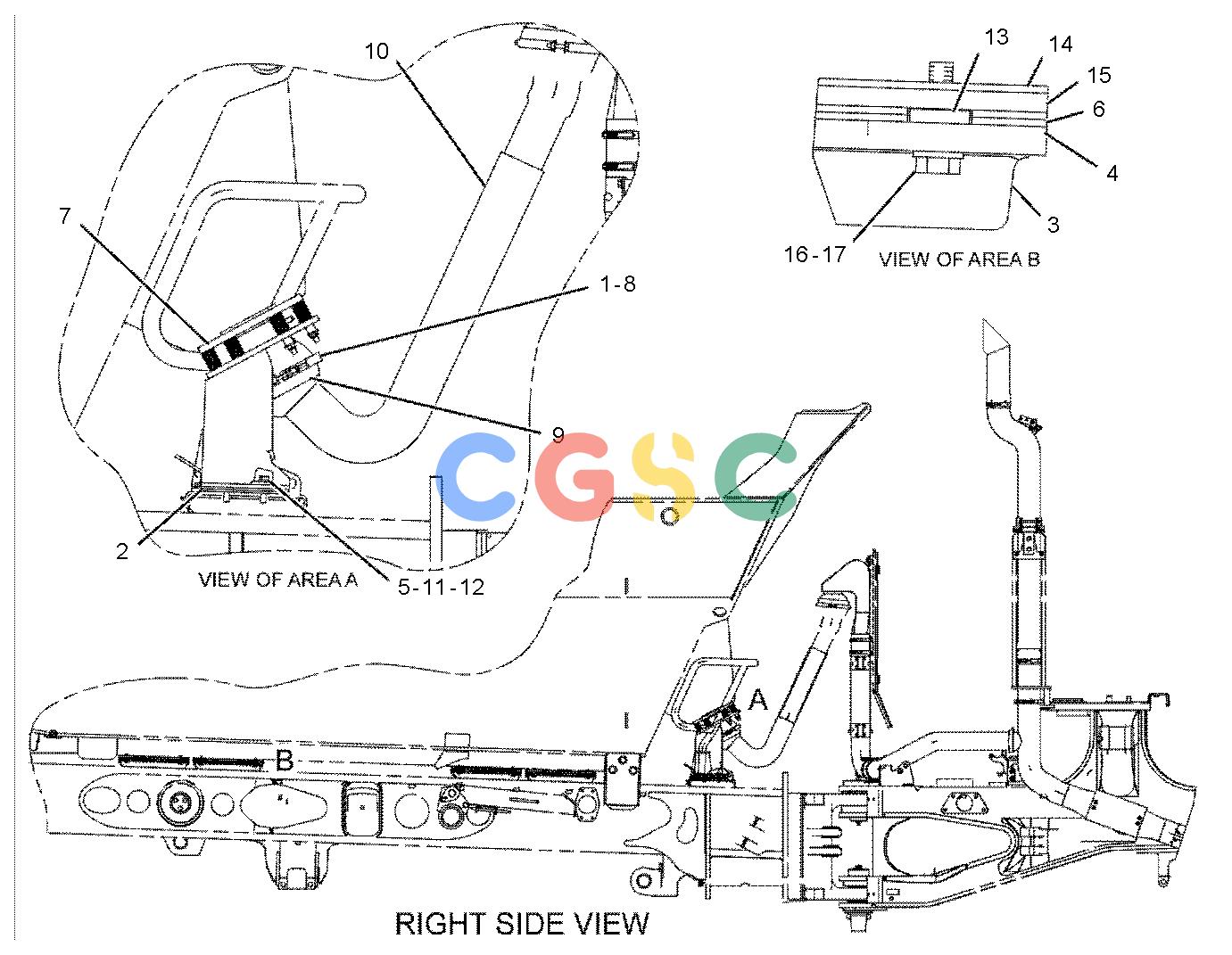

卡特零件查询（735） 152-7072: PIPE GP-EXHAUST
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1W-2431 | [1] | CLAMP-BAND | |
| 2. | 2U-7477 | [1] | SEAL | |
| 3. | 9X-2201 | [4] | CLAMP-HOSE | |
| 4. | 186-5065 | [2] | CLAMP | |
| 5. | 190-5938 | [1] | TUBE-FLEXIBLE | |
| 6. | 190-7317 | [1] | PIPE AS | |
| 7. | 202-2035 | [1] | TUBE AS | |
| 8. | 202-2036 | [1] | PIPE AS | |
| 9. | 310-6812 | [1] | PLATE AS | |
| 10. | 202-2165 | [1] | DUCT AS | |
| 11. | 202-4122 | [1] | CLAMP-V BAND | |
| 12. | 310-6811 | [1] | BRACKET AS | |
| 13. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 15. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 16. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| | M | | METRIC PART |
