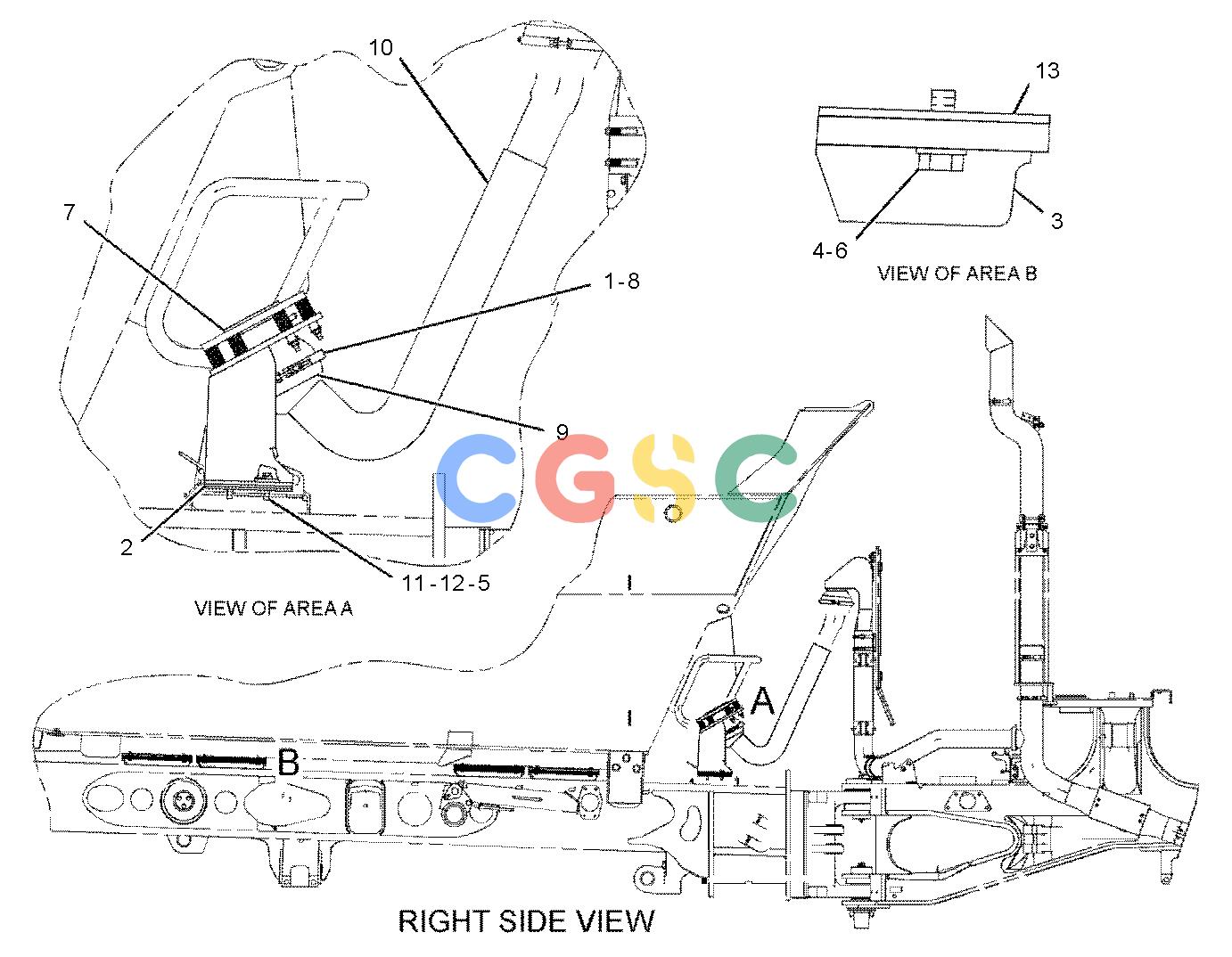

卡特零件查询（735） 152-7076: PIPE GP-EXHAUST
广数供应链运营团队, 15 02月, 2025，浏览：
539 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-7477 | [1] | SEAL | |
| 2. | 130-2336B | [2] | SHIM(5-MM THK) | |
| 3. | 145-7755 | [8] | BUFFER-RUBBER | |
| 4. | 146-3027B | [8] | SHIM(6-MM THK) | |
| 5. | 147-6322 | [1] | PLATE-CLAMP | |
| 6. | 147-6514 | [16] | GASKET | |
| 7. | Y | [1] | ELBOW GP-EXHAUST |
| 8. | 202-4122 | [1] | CLAMP-V BAND | |
| 9. | 186-2225 | [1] | RING-RETAINING | |
| 10. | 202-2038 | [1] | PIPE AS | |
| 11. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-4194M | [3] | BOLT(M12X1.75X50-MM) | |
| 13. | 147-6513 | [32] | SPACER(12X25X5.6-MM THK) | |
| 14. | 142-0534 | [8] | SHIM(3-MM THK) | |
| 15. | 142-0535 | [8] | SHIM(8-MM THK) | |
| 16. | 8T-4121 | [32] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4186M | [32] | BOLT(M10X1.5X40-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
