神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-24[00]) - VALVE ASSY, PILOT (PROPELLING) (YN30V00105F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
898 次

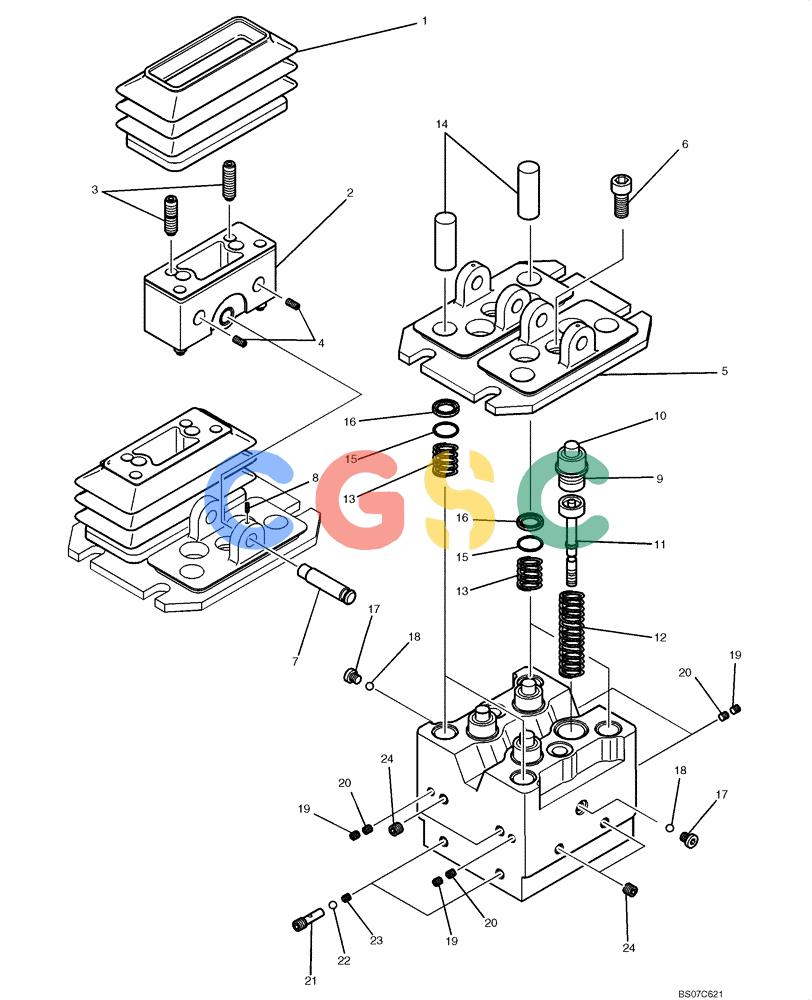

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00105F1 | [1] | VALVE | KOBPilot, Propelling Superseded by part number: YN30V00105F2 |
| 1. | YN30V00105S005 | [2] | COVER | SM |
| 2. | NA | [1] | NOT SERVICED | FORPlate |
| 3. | NA | [2] | NOT SERVICED | FORCapscrew |
| 4. | NA | [2] | NOT SERVICED | FORCapscrew |
| 5. | NA | [1] | NOT SERVICED | FORPlate |
| 6. | NA | [2] | NOT SERVICED | FORCapscrew |
| 7. | NA | [2] | NOT SERVICED | FORPin |
| 8. | NA | [2] | NOT SERVICED | FORCapscrew |
| 9. | NA | [4] | NOT SERVICED | FORPlug |
| 10. | NA | [4] | NOT SERVICED | FORRod, Push |
| 11. | YN30V00105S010 | [4] | ROD | SMSpool |
| 12. | NA | [4] | NOT SERVICED | FORSpring |
| 13. | NA | [4] | NOT SERVICED | FORSpring |
| 14. | NA | [4] | NOT SERVICED | FORRod |
| 15. | NA | [6] | NOT SERVICED | FORSeal |
| 16. | NA | [6] | NOT SERVICED | FORSeal |
| 17. | NA | [2] | NOT SERVICED | FORPlug |
| 18. | NA | [2] | NOT SERVICED | FORBall |
| 19. | NA | [4] | NOT SERVICED | FORPlug |
| 20. | NA | [4] | NOT SERVICED | FOROrifice |
| 21. | NA | [3] | NOT SERVICED | FOROrifice |
| 22. | NA | [3] | NOT SERVICED | FORBall |
| 23. | NA | [3] | NOT SERVICED | FOROrifice |
| 24. | NA | [10] | NOT SERVICED | FORPlug |
| K. | YN30V00105R100 | [1] | KIT | SMRepair; Contains items 2X1, 3X2, 4X2 |
| K. | YN30V00105R110 | [1] | KIT | SMRepair; Contains items 5X1, 6X2, 7X2, 8X2 |
| K. | YN30V00105R120 | [1] | KIT | SMRepair; Contains items 9X4, 10X4 |
| K. | YN30V00105R130 | [1] | KIT | SMRepair; Contains items 12X4 |
| K. | YN30V00105R140 | [1] | KIT | SMRepair; Contains items 13X4 |
| K. | YN30V00105R150 | [1] | KIT | SMRepair; Contains items 14X4, 15X6, 16X6 |
| K. | YN30V00105R160 | [1] | KIT | SMRepair; Contains items 17X2, 18X2 |
| K. | YN30V00105R170 | [1] | KIT | SMRepair; Contains items 19X4, 20X4 |
| K. | YN30V00105R180 | [1] | KIT | SMRepair; Contains items 21X3, 22X3, 23X3 |
