神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (08-25[00]) - VALVE ASSEMBLY, PILOT (YN30V00080F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
138 次

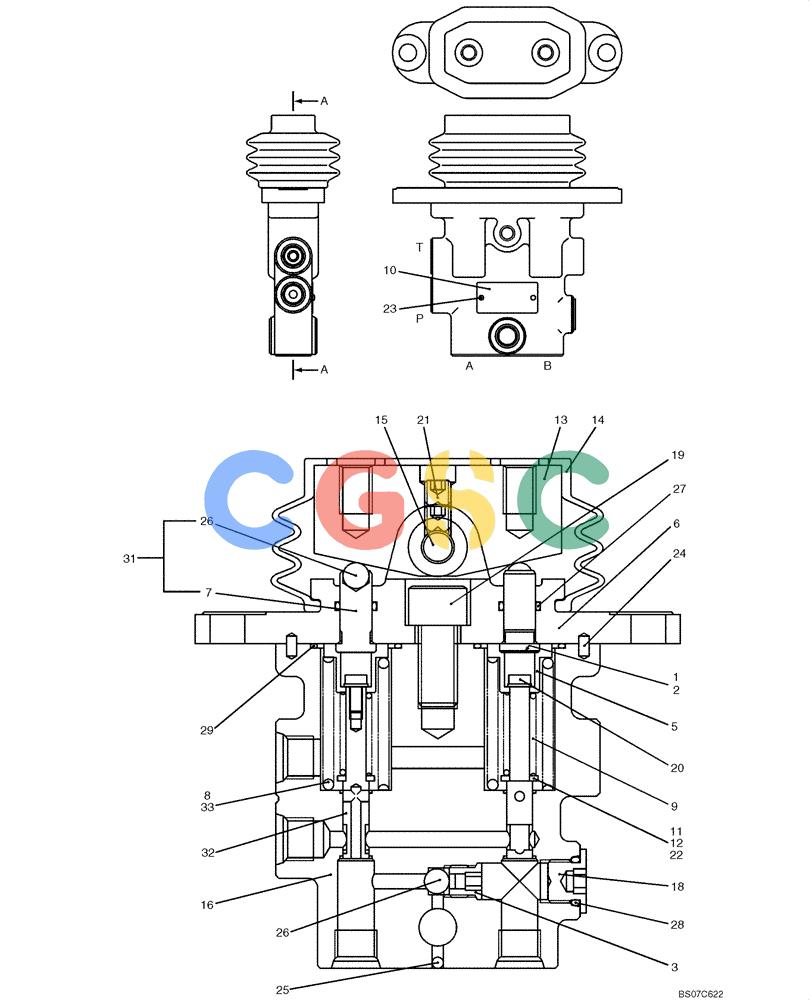

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00080F1 | [1] | VALVE | KOBPilot |
| 1. | 2436U1142S13 | [2] | SHIM | KOB(0.1) |
| 2. | 2436U1487S7 | [2] | SHIM | KOB(0.2) |
| 3. | 2436U2755S4 | [1] | SEAT | KOB |
| 5. | 2436U1354S5 | [2] | SLEEVE | KOB |
| 6. | 2436U1354S6 | [1] | COVER | KOB |
| 7. | NA | [2] | NOT SERVICED | FORPiston |
| 8. | YR30V00004S012 | [1] | SPRING | KOB |
| 9. | YR30V00013S009 | [2] | SPRING | KOB |
| 10. | NA | [1] | NOT SERVICED | FORName Plate |
| 11. | 2436U1354S25 | [2] | SHIM | KOB(0.2) |
| 12. | YR30V00013S012 | [1] | SHIM | KOB(0.1) |
| 13. | YN30V00022S015 | [1] | CAM | KOB |
| 14. | YN30V00022S016 | [1] | BOOT | KOB |
| 15. | YN30V00022S017 | [1] | PIN | KOB |
| 16. | NA | [1] | NOT SERVICED | FORBody |
| 18. | 2436U2412S26 | [1] | PLUG | KOB1/4"PF |
| 19. | ZS23C12025 | [1] | CAPSCREW,Hex Socket Head, M12 x 52mm | KOBSCREW M12x1.75x25mm |
| 20. | 2436U1354S15 | [2] | BOLT | KOB |
| 21. | ZS83C08008 | [2] | SCREW | KOBSet -- M08x1.25x08mm |
| 22. | 2436U1354S16 | [2] | WASHER | KOB |
| 23. | YN30V00080S023 | [2] | SCREW | KOB#2x4.8mm |
| 24. | 2436U2888S24 | [2] | PIN | KOB |
| 25. | NA | [1] | NOT SERVICED | FORBall |
| 26. | 2436U1487S37 | [3] | BALL | KOB |
| 27. | ZD11P01000 | [2] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 28. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 29. | YN30V00080S029 | [2] | O-RING | KOB |
| 31. | 2436U1354S26 | [2] | PISTON | KOB |
| 32. | NA | [2] | NOT SERVICED | FORSpool |
| K. | YN30V00080R200 | [1] | REPAIR KIT | KOBContains items 16X1, 25X1, 32X2 |
