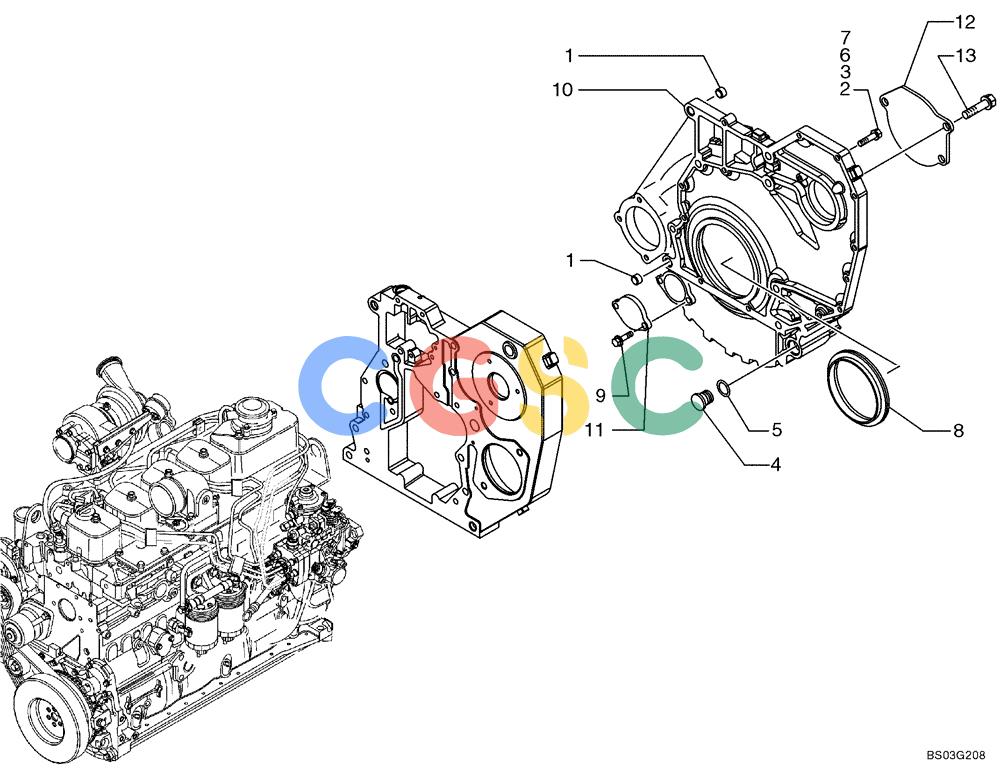

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-08[00]) - FLYWHEEL HOUSING (101460740001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
450 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 2. | 2852325 | [2] | SCREW | TORM10x1.50x80mm Superseded by part number: 16592925 |
| 3. | 2852326 | [11] | SCREW | TORM10x1.50x40mm |
| 4. | 4895378 | [2] | BUTTON PLUG,M29.2 | TORØ29x32mm |
| 5. | 4895379 | [2] | O-RING,21.82mm ID x 3.53mm Width | TORID 21.82 x OD 28.88 x Th 3.53mm Superseded by part number: 17288480 |
| 6. | 2852327 | [5] | BOLT,Flng, M12 x 1.75 x 80mm | TORM12x1.75x80mm Superseded by part number: 16593224 |
| 7. | 2852324 | [2] | SCREW | TORM12x1.75x120mm Superseded by part number: 16593625 |
| 8. | 4890833 | [1] | OIL SEAL,M130 x 155 x 12.5/16 | TOR Superseded by part number: |
| 9. | 4899068 | [2] | BOLT,Flng, M8 x 1.25 x 16mm | BASM08x1.25x16mm |
| 10. | 2854741 | [1] | COVER | TOR Superseded by part number: |
| 11. | 4895155 | [1] | COVER | TOR |
| 12. | 2852025 | [1] | COVER | TOR |
| 13. | 2852100 | [3] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TORM08x1.25x16mm Superseded by part number: 16586225 |
