神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-14[00]) - ROCKER SHAFT (101570130002) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
227 次

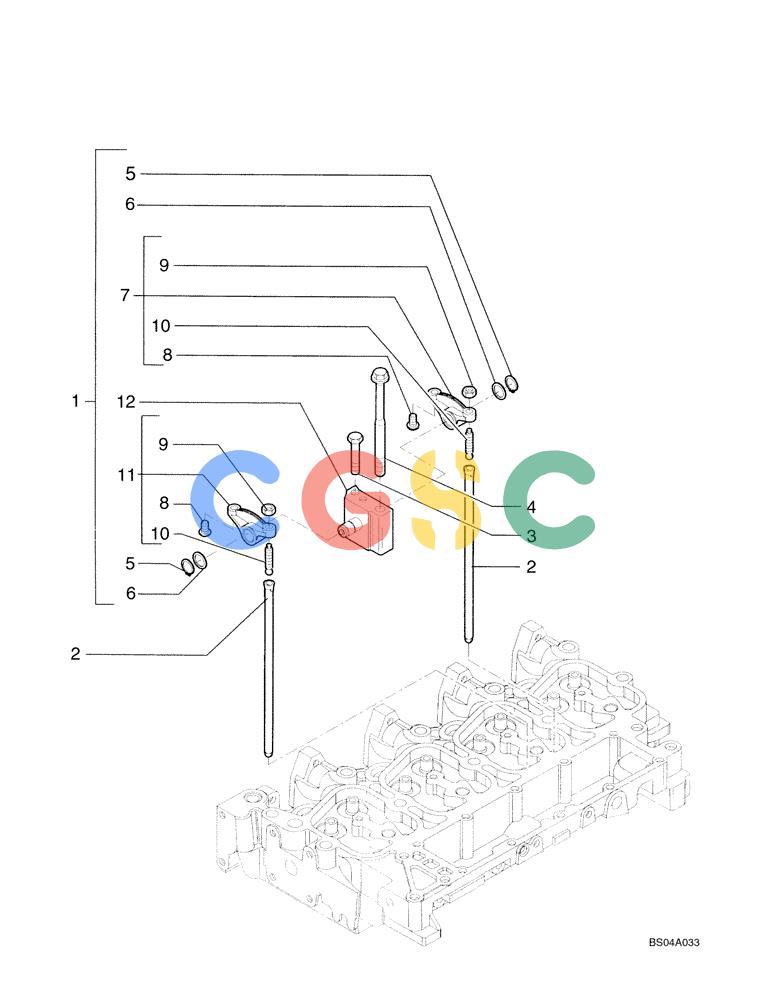

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895195 | [4] | ROCKER | TORIncl. Ref 5 - 12 |
| 2. | 4895361 | [8] | PUSH ROD | TOR |
| 3. | 2852866 | [4] | BOLT,Flng, M8 x 1.25 x 75mm, Cl 8.8 | TORM08x1.25x60mm Superseded by part number: 504067723 |
| 4. | 4892860 | [4] | BOLT,Flng, M12 x 1.75 x 183mm | TORM12x1.25x183mm |
| 5. | 4895363 | [2] | SNAP RING | TOR |
| 6. | 4895364 | [2] | WASHER | TOR |
| 7. | 4895196 | [1] | ROCKER ARM,Exhaust | TORIncl. Ref. 8 - 10 |
| 8. | 4895365 | [2] | INSERT | TOR Superseded by part number: 4895196, 4895196, 4895200 |
| 9. | 4895198 | [2] | NUT,3/8"-24, Heavy | LEC3/8"-24 UNF Superseded by part number: |
| 10. | 4895199 | [2] | ADJUSTMENT SCREW,3/8" - 24 x 25.85mm | TOR3/8"-24 UNF x 25.85mm |
| 11. | 4895200 | [1] | ROCKER ARM,Intake | TORIncl. Ref. 8 - 10 |
| 12. | 4895204 | [1] | SHAFT | TOR |
