神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-15[00]) - INTAKE MANIFOLD (101570310001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
591 次

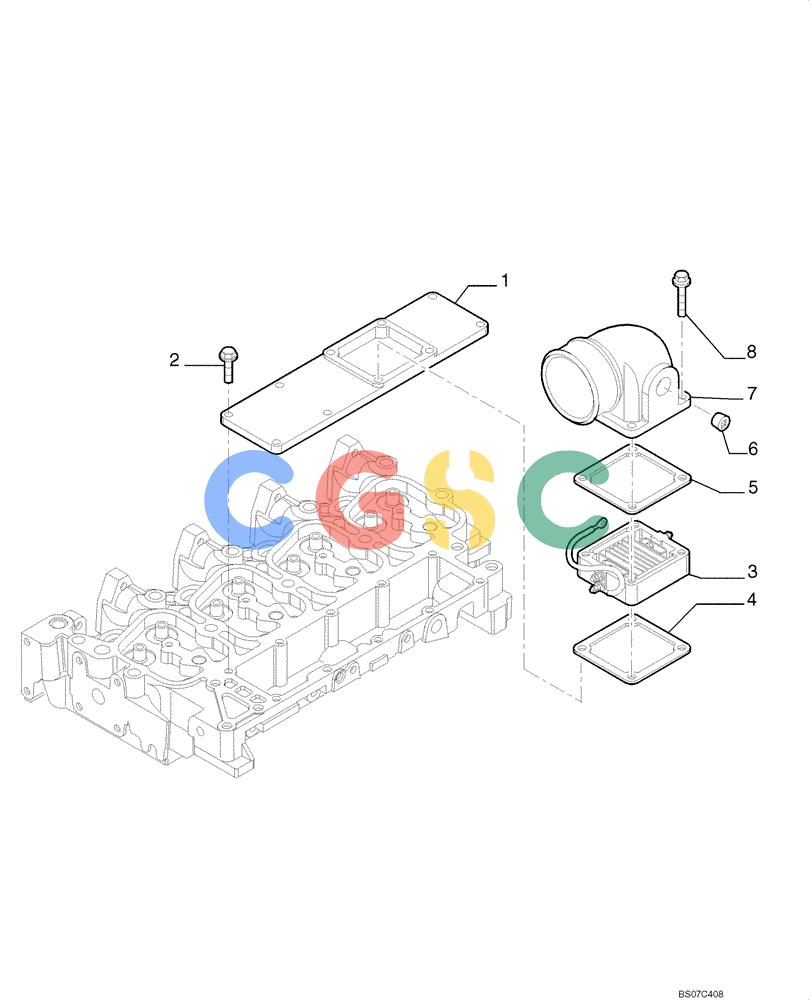

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852044 | [1] | INLET MANIFOLD | TOR Superseded by part number: |
| 2. | 4899039 | [6] | BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9 | TORM08x1.25x25mm |
| 3. | 2831019 | [1] | HEATER,24V | TOR |
| 4. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 5. | 4899921 | [1] | GASKET,1.2mm Thk | TOR |
| 6. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TOR3/4"-14NPTF x 12.4±0.5mm Long Superseded by part number: 2854866 |
| 7. | 4895424 | [1] | INLET MANIFOLD | TOR |
| 8. | 4895294 | [4] | BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9 | TORM08x1.25x140mm |
