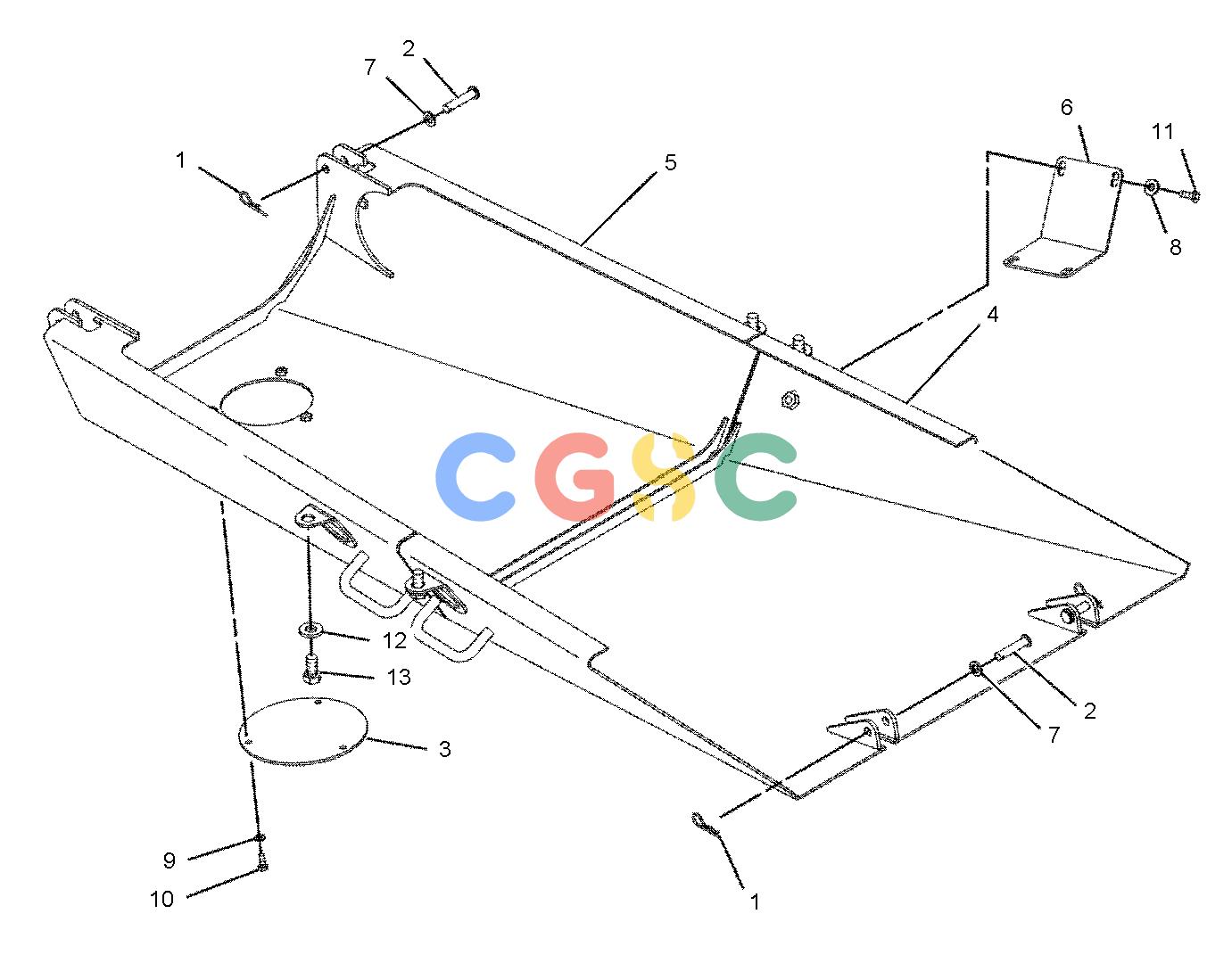

卡特零件查询（735） 152-7048: GUARD GP-CRANKCASE
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6S-6646 | [4] | PIN-COTTER | |
| 2. | 9K-3036 | [4] | PIN | |
| 3. | 186-2727 | [1] | PLATE | |
| 4. | 188-0435 | [1] | PLATE AS | |
| 5. | 188-0436 | [1] | PLATE AS | |
| 6. | 194-4030 | [1] | PLATE | |
| 7. | 4B-5275 | [4] | WASHER(17.5X44.4X3.5-MM THK) | |
| 8. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 9. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 10. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 11. | 8T-4139M | [4] | BOLT(M12X1.75X30-MM) | |
| 12. | 8T-5439 | [4] | WASHER-HARD(21.5X45X6-MM THK) | |
| 13. | 8T-5460M | [4] | BOLT(M20X2.5X40-MM) | |
| | M | | METRIC PART |
