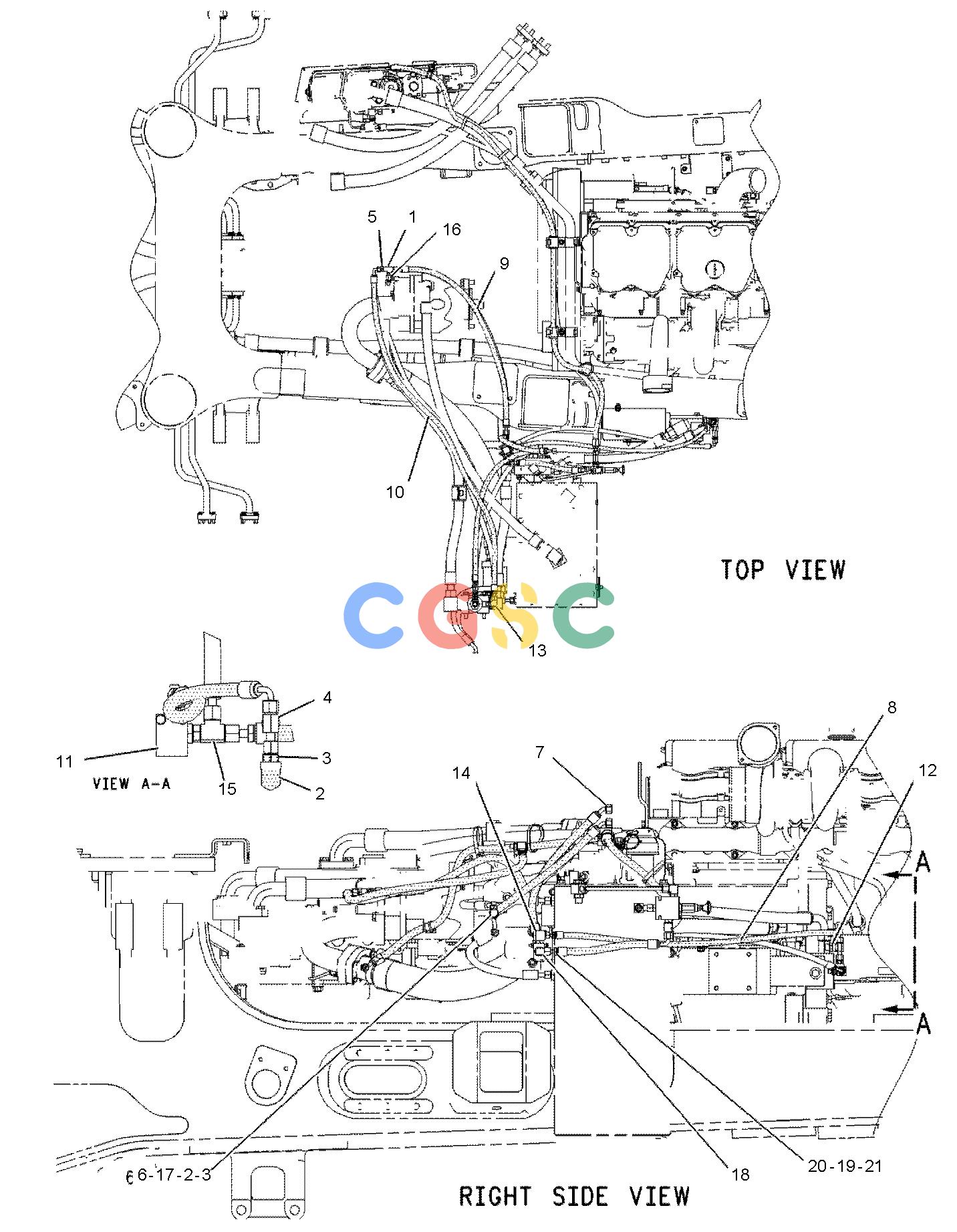

卡特零件查询（735） 166-5890: LINES GP-PILOT

广数供应链运营团队, 15 02月, 2025，浏览： 870 次

Pos.	Part No	Qty	Parts name
1.	148-8443	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	7X-2459	[1]	ADAPTER-TEE
2.	150-3065	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-0484	[1]	ELBOW
3.	165-7948	[2]	VALVE GP-CHECK
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
4.	166-2033	[1]	TEE AS
	4J-5477	[1]	SEAL-O-RING
	7X-2444	[1]	TEE-SWIVEL
5.	179-9223	[1]	VALVE GP-CHECK
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
6.	194-6919I	[1]	HOSE AS
7.	194-6920I	[1]	HOSE AS
8.	194-6923I	[1]	HOSE AS
9.	194-6926I	[1]	HOSE AS
10.	203-4137I	[1]	HOSE AS
11.	221-2821C	[1]	MANIFOLD
12.	148-8336	[1]	CONNECTOR AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8636	[1]	CONNECTOR
13.	148-8361	[1]	ELBOW AS(90-DEG)
	3J-7354	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9200	[1]	ELBOW
14.	148-8368	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
15.	148-8435	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[2]	SEAL-O-RING
	6V-8781	[1]	TEE
16.	150-4047	[1]	ADAPTER AS
	3J-7354	[1]	SEAL-O-RING
	8T-2353	[1]	ADAPTER
17.	153-6248	[1]	ADAPTER AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	8T-6663	[1]	ADAPTER-PORT
18.	3J-1907	[1]	SEAL-O-RING
19.	5C-2890M	[2]	NUT(M6X1-THD)
20.	7X-2534M	[2]	BOLT(M6X1X50-MM)
21.	9X-8256	[4]	WASHER(6.6X12X2-MM THK)
	C		CHANGE FROM PREVIOUS TYPE
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
