神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-19[00]) - PISTON - ENGINE (101580510010) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
894 次

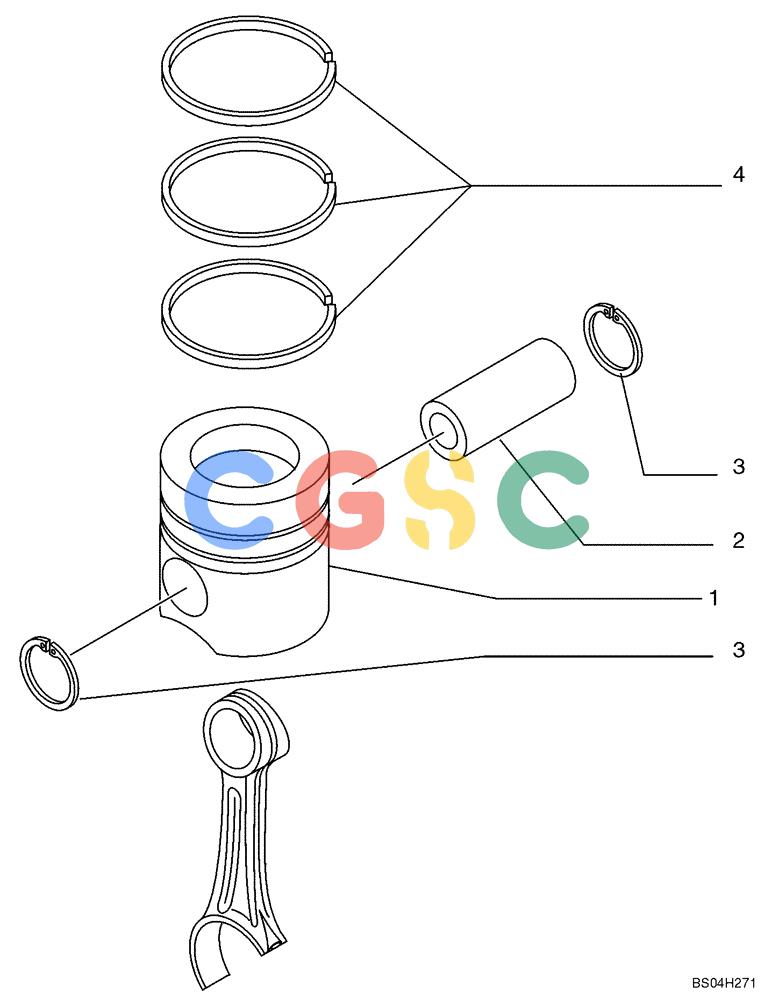

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2855531 | [4] | PISTON | TORStd |
| 1. | 2856484 | [4] | + 0,4 mm | PISTON |
| 1. | 2856485 | [4] | PISTON | TOR+ 0,8 mm Superseded by part number: 504208875 |
| 2. | 4892712 | [4] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 4892713 | [8] | SNAP RING,Int, M26.4 | TOR Superseded by part number: 504093651 |
| 3. | 2854030 | [8] | SNAP RING,M40.8 OD | TORAlternate Part 4892713 Superseded by part number: 504093651 |
| 4. | 2852037 | [4] | SEAL,95.3mm ID x 104mm OD x 4mm Thk | TOROil Scraper, Std Superseded by part number: 98486083 |
| 4. | 2853875 | [4] | OIL SCRAPER RING +0.,95.3mm ID x 104mm OD | BHBOil Scraper, + 0,4 mm |
| 4. | 2853876 | [4] | PISTON RING | BHBOil Scraper, + 0,8 mm |
| 4. | 2830158 | [4] | PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk | TORLower Compression, Std |
| 4. | 2830159 | [4] | PISTON RING,95.4mm ID x 104.4mm OD x 2.39mm Thk | BHBLower Compression, + 0,4 mm |
| 4. | 2830160 | [4] | PISTON RING | BHBLower Compression, + 0,8 mm |
| 4. | 2854603 | [4] | PISTON RING | BHBSealing, Std |
| 4. | 2856713 | [4] | PISTON RING | BHBSealing, + 0,4 mm Superseded by part number: |
| 4. | 2856714 | [4] | PISTON RING | BHBSealing, + 0,8 mm |
| . . | 87647549 | [1] | PISTON & RINGS KIT | TORStd, Incl 1 - 4 (Kit for 1 Cylinder) Superseded by part number: 8094740 |
| . . | 87647550 | [1] | PISTON & RINGS KIT | TOR+ 0,4 mm, Incl 1 - 4 (Kit for 1 Cylinder) Superseded by part number: 87317252 |
| . . | 87647551 | [1] | PISTON & RINGS KIT | TOR+ 0,8 mm, Incl 1 - 4 (Kit for 1 Cylinder) Superseded by part number: 4892712, 504093651, 87582181, 504208875 |
