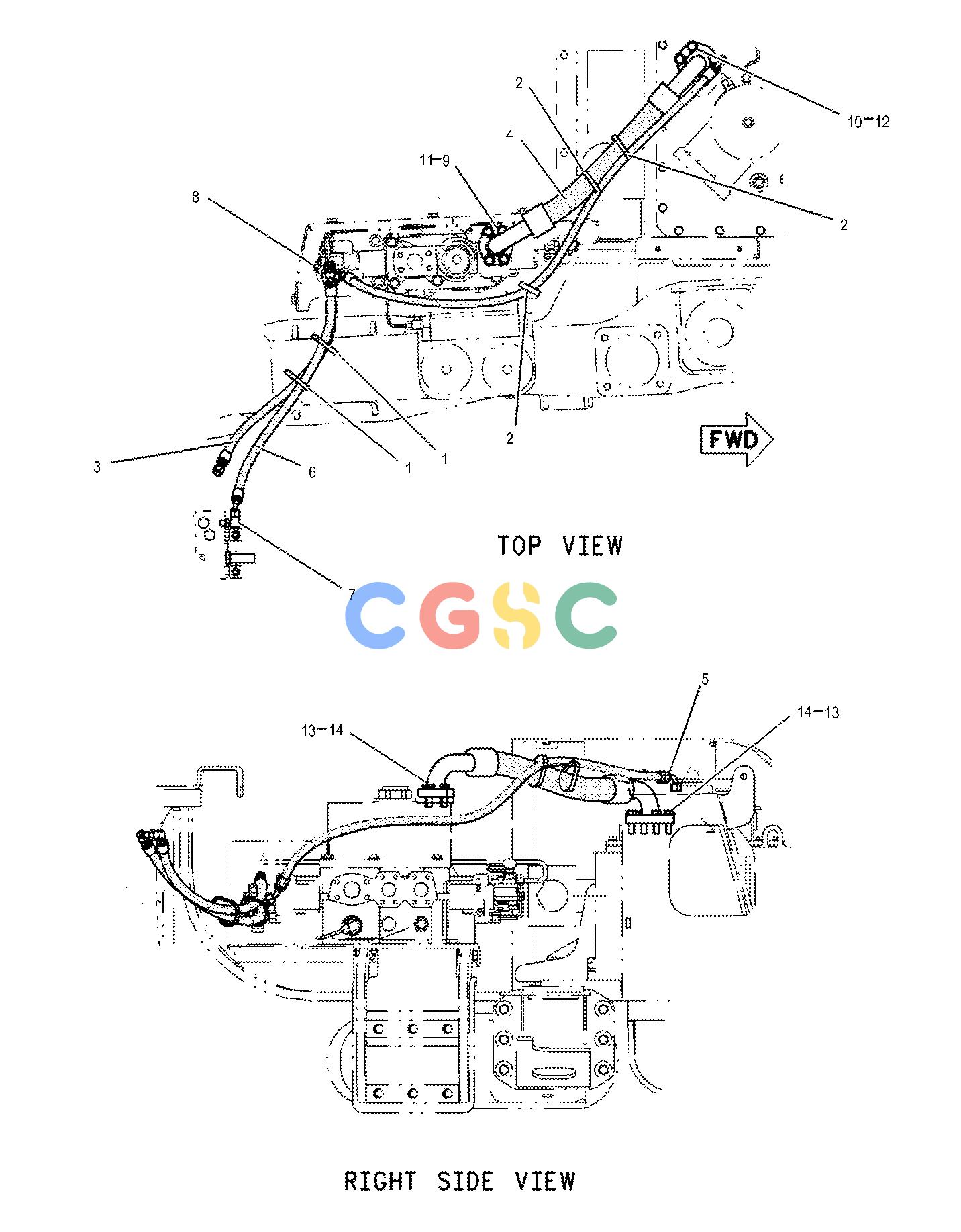

卡特零件查询（735） 166-3938: LINES GP-RETURN
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [2] | STRAP | |
| 2. | 6U-0456 | [3] | STRAP | |
| 3. | 166-6000I | [1] | HOSE AS | |
| 4. | 193-1516I | [1] | HOSE AS | |
| 5. | 193-3792I | [1] | HOSE AS | |
| 6. | 207-5879I | [1] | HOSE AS | |
| 7. | 148-8378 | [1] | ELBOW AS | |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 8. | 148-8433 | [1] | TEE AS | |
| | 6V-9836 | [1] | TEE-SWIVEL | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 9. | 1P-4579 | [2] | FLANGE-HALF | |
| 10. | 1P-4582 | [2] | FLANGE-HALF | |
| 11. | 4J-0524 | [1] | SEAL-O-RING | |
| 12. | 4J-0527 | [1] | SEAL-O-RING | |
| 13. | 8T-4184M | [8] | BOLT(M12X1.75X45-MM) | |
| 14. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
