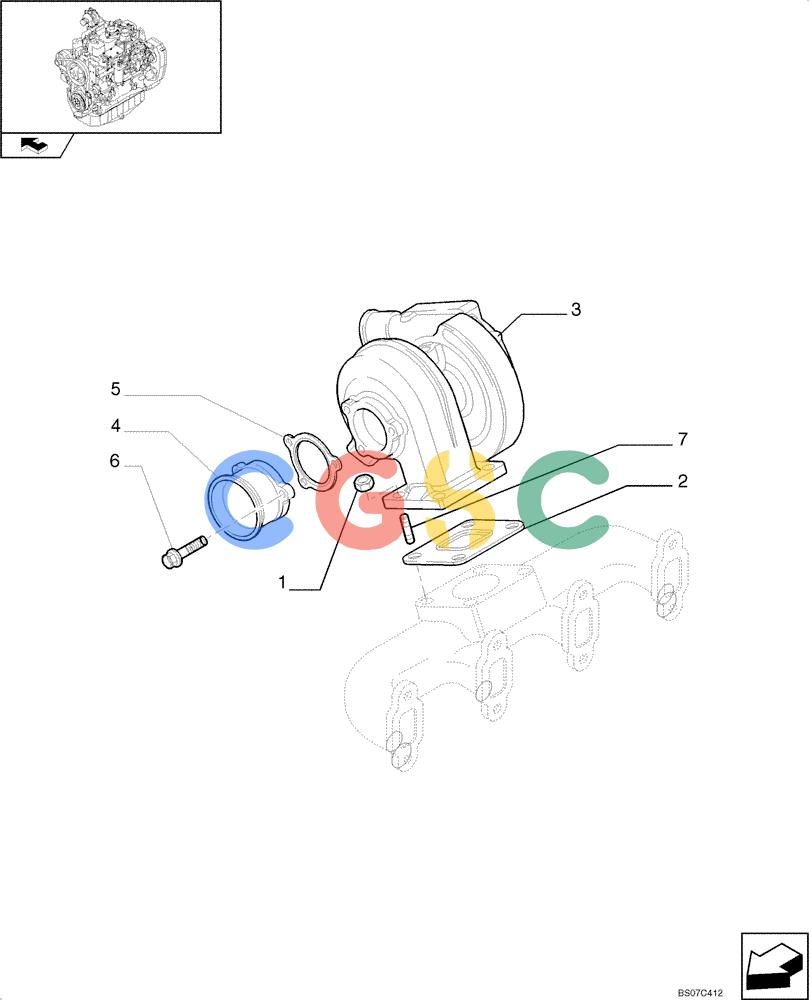

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-23[00]) - TURBOCHARGER (101910920101) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1026 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899118 | [4] | FLANGE NUT,M8 | TOR Superseded by part number: 500322677 |
| 2. | 4895133 | [1] | GASKET,0.5mm Thk | TOR |
| 3. | 2856090 | [1] | TURBOCHARGER | TOR Superseded by part number: 504085543 |
| 3. | 2856090R | [1] | REMAN-TURBOCHARGER | RACSK170-8 Acera Mark VIII Exc. w/Tier 3 Engine Superseded by part number: 504085543R |
| 3. | 2856090C | [1] | CORE-TURBOCHARGER | RACReturn Number Superseded by part number: |
| 4. | 2852510 | [1] | TUBE | TOR Superseded by part number: 504050113 |
| 5. | 2852509 | [1] | MANIFOLD GASKET,0.5mm Thk | TOR Superseded by part number: 504050114 |
| 6. | 4898482 | [4] | BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9 | TOR |
| 7. | 4899119 | [4] | STUD,M8 x 1.25 x 40 | TOR Superseded by part number: 5801452462 |
