神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-24[00]) - ENGINE OIL DIPSTICK (10167080001 & 101230810001) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
958 次

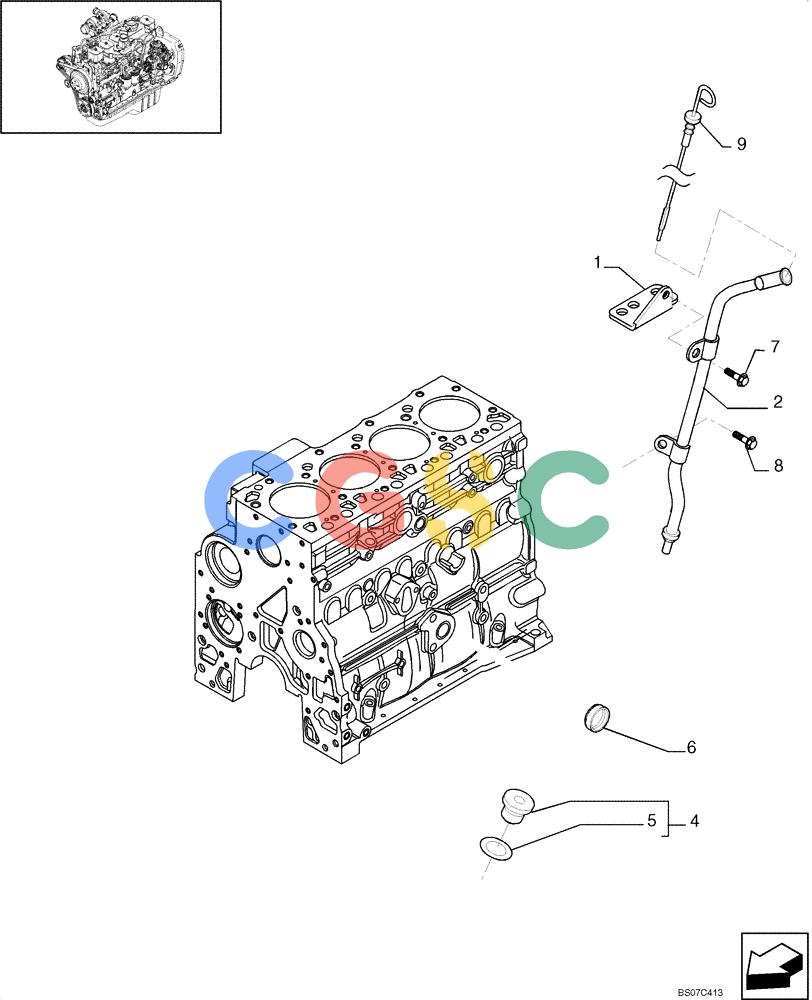

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852914 | [1] | BRACKET | TOR Superseded by part number: 504051850 |
| 2. | 2853429 | [1] | DIPSTICK | TORAssembly, Incl 2-1, 9 Superseded by part number: 504045917, 504045903 |
| 2-1. | 2853430 | [1] | RIGID TUBE | TOR Superseded by part number: 504045903 |
| 3. | 2853428 | [1] | BRACKET | TORNot Shown Superseded by part number: 504046336 |
| 4. | 4897330 | [1] | HEX SOCKET PLUG,M12 x 1.5 | TORIncls. Refs. 5 |
| 5. | 4895610 | [1] | O-RING,2.2mm Thk x 9.3mm ID | TOR |
| 6. | 4895406 | [1] | EXPANSION PLUG,9.8mm OD | TOR |
| 7. | 2852323 | [1] | SCREW,M8 x 1.25 x 14mm | TORM08x1.25x14mm Superseded by part number: 16597925 |
| 8. | 2852134 | [1] | FLANGE BOLT,Hex, M12 x 1.75 x 25mm | TOR Superseded by part number: 16677735 |
| 9. | 2853432 | [1] | DIPSTICK | TOREngine Oil, Incl in 2 Superseded by part number: 504045917 |
| 10. | 2853427 | [1] | PROBE | TORNot Showm - Electronic Dipstick, Engine Oil Superseded by part number: 504025612 |
