神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-28[00]) - HEAT EXCHANGER - ENGINE (101570840002) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
596 次

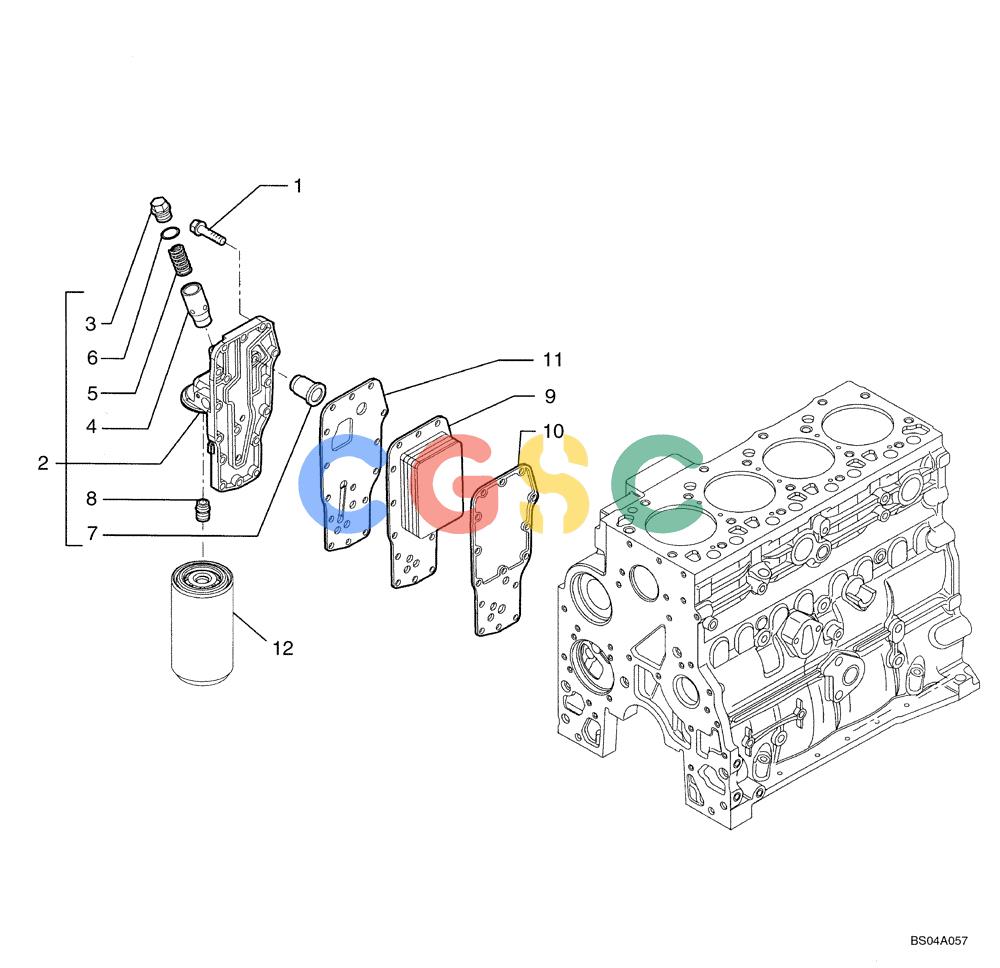

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899019 | [15] | SCREW,Hex Flg, M8 x 1.25 x 35 | TORM08x1.25x35mm |
| 2. | 2853782 | [1] | OIL COOLER | TORIncls. Refs. 3 - 8 Superseded by part number: 504096409, 4899643, 4896410, 4896404, 4895045 |
| 3. | 2853781 | [1] | PLUG,Hex, M22 x 1.5 ORB | TOR Superseded by part number: 504096409 |
| 4. | 4896404 | [1] | PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD | TORPressure Regulator |
| 5. | 4895045 | [1] | SPRING,Compression, 14.7mm OD x 66mm L | TOR |
| 6. | 4899035 | [1] | O-RING,2.62mm Thk x 18.39mm ID | TOR |
| 7. | J936365 | [1] | VALVE PRESSURE RELIE | CAS Superseded by part number: 4896410 |
| . . | 4899643 | [1] | FILTER HEAD | TORIncls Refs. 8 |
| 8. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TOR |
| 9. | 4896406 | [1] | HEAT EXCHANGER | TOR Superseded by part number: 5801750729 |
| 10. | 2830559 | [1] | GASKET,0.5mm Thk | TORCore |
| 11. | 4896409 | [1] | GASKET,1.55mm Thk | TORHead |
| 12. | REF | [1] | INSTRUCTION | NHSee Figure 09-26 |
