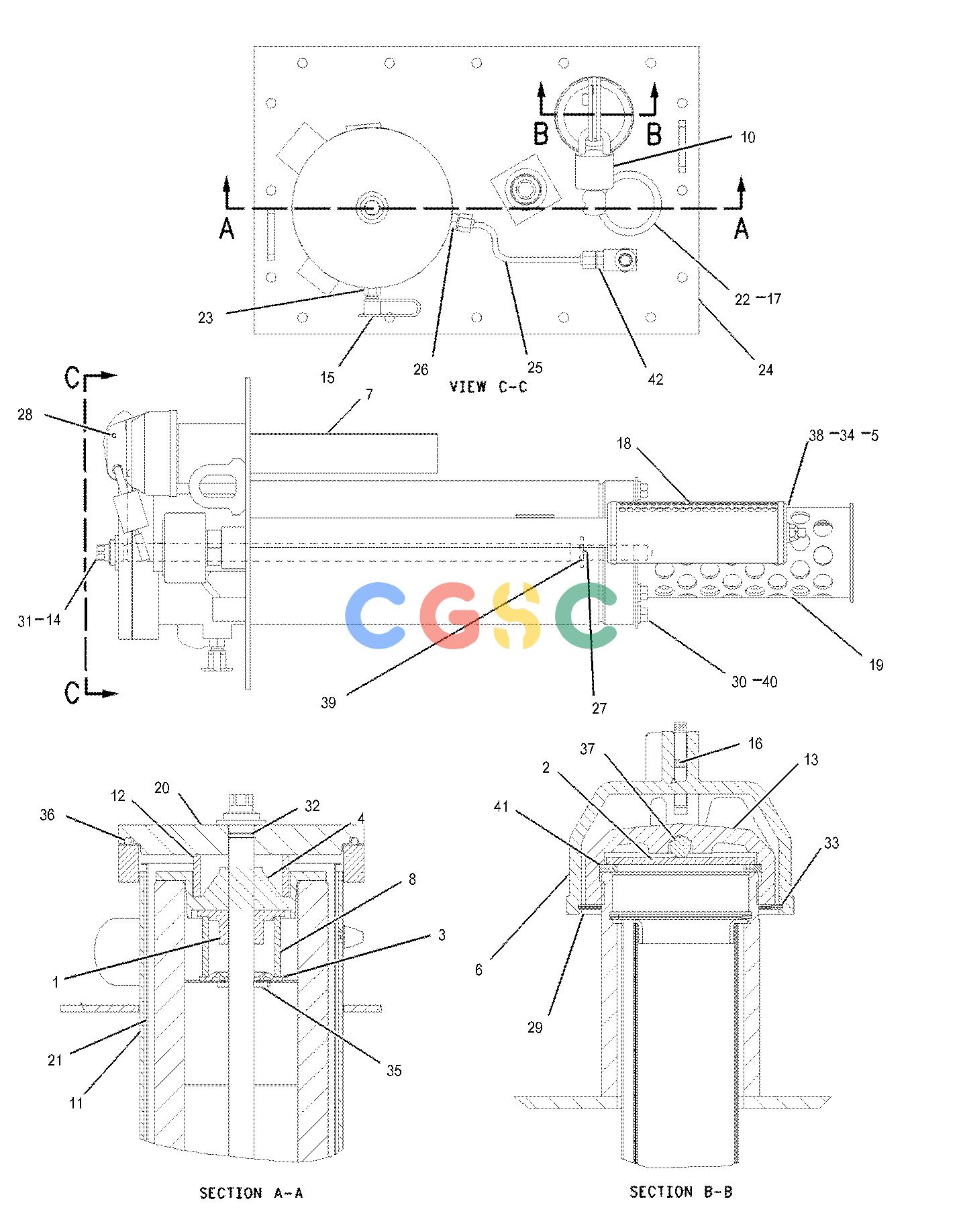

卡特零件查询（735） 185-1740: COVER GP-HYDRAULIC TANK
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-1643 | [1] | VALVE(HYDRAULIC TANK) | |
| 2. | 2D-4202 | [1] | PLATE | |
| 3. | 2J-0917 | [1] | RETAINER | |
| 4. | 4J-1704 | [1] | SEAT-VALVE | |
| 5. | 4T-8698 | [1] | WASHER(12.2X62X3.5-MM THK) | |
| 6. | 5D-1911 | [1] | COVER-HYDRAULIC CAP | |
| 7. | 5D-7927 | [1] | STRAINER AS-OIL(HYDRAULIC TANK FILL) | |
| | 5F-3488 | [1] | END-STRAINER(HYDRAULIC TANK FILL) | |
| 8. | 5J-2926 | [1] | SPRING | |
| 10. | 246-2641 | [1] | PADLOCK GP | |
| | 5P-8500 | [1] | KEY | |
| 11. | 6J-3795 | [1] | SCREEN AS(HYDRAULIC TANK FILL) | |
| 12. | 6P-3860 | [1] | SPRING | |
| 13. | 7H-1447 | [1] | CAP-FILLER(HYDRAULIC TANK) | |
| 14. | 7J-0815 | [1] | BOLT-FILTER | |
| 15. | 8C-3451 | [1] | CAP-DUST(HYDRAULIC OIL) | |
| 16. | 9M-7394 | [1] | LEVER | |
| 17. | 9R-3176 | [1] | SEAL-O-RING | |
| 18. | 119-4885 | [1] | SCREEN(HYDRAULIC TANK) | |
| 19. | 120-5447 | [1] | DIFFUSER AS | |
| 20. | 129-4131 | [1] | COVER-FILTER | |
| 21. | 132-8876 | [2] | FILTER ELEMENT AS-OIL(ULTRA HIGH EFFICIENCY)(HYDRAULIC) | |
| 22. | 157-7911 | [1] | BREATHER(HYDRAULIC TANK) | |
| 23. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(HYDRAULIC OIL) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8C-3446 | [1] | VALVE-SAMPLING(HYDRAULIC OIL) | |
| 24. | 185-1465 | [1] | TUBE AS-FILTER | |
| 25. | 189-9047 | [1] | TUBE AS | |
| 26. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 27. | 1H-1200 | [1] | PIN-SPRING | |
| 28. | 1L-5072 | [1] | DOWEL | |
| 29. | 2J-7761 | [1] | RING-RETAINING | |
| 30. | 5P-8167 | [6] | BOLT(3/8-16X0.625-IN) | |
| 31. | 5P-8248 | [1] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| 32. | 6F-4855 | [1] | SEAL-O-RING | |
| 33. | 6H-9361 | [1] | RING-RETAINING | |
| 34. | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| 35. | 7J-5925 | [1] | PIN-COTTER | |
| 36. | 8J-1665 | [1] | SEAL-O-RING | |
| 37. | 8T-2275 | [1] | BALL | |
| 38. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 39. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 40. | 8T-4896 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 41. | 9H-6454 | [1] | GASKET | |
| 42. | 148-8316 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| | M | | METRIC PART |
