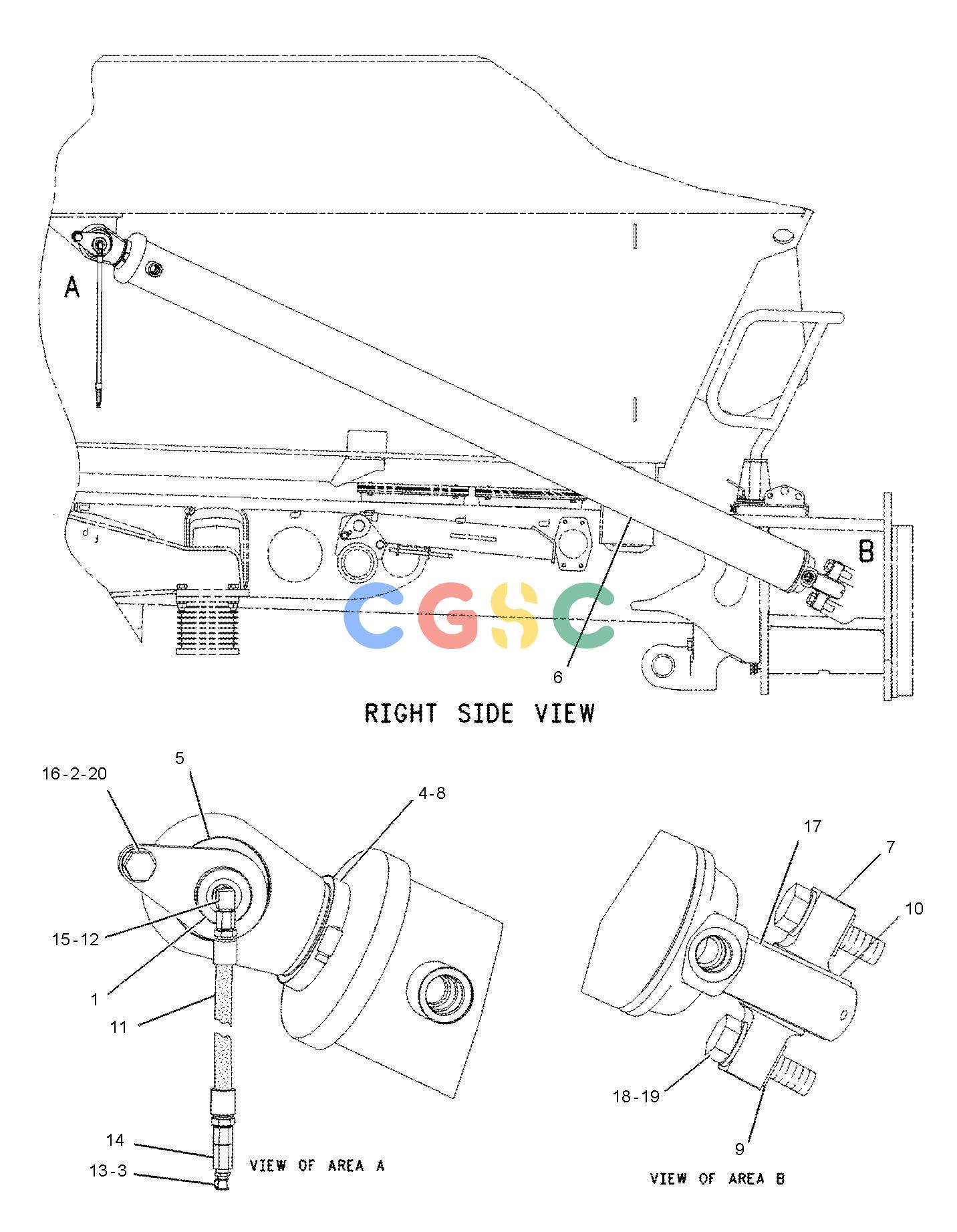

卡特零件查询（735） 164-9856: CYLINDER & MTG GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
840 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-9202 | [2] | PIN AS-TIP CYLINDER | |
| 2. | 2U-9204 | [2] | SPACER(17X25.4X11.5-MM THK) | |
| 3. | 5U-7151 | [2] | CAP-GREASE | |
| 4. | 6V-3582 | [2] | CLAMP-HOSE | |
| 5. | 138-0637 | [2] | SPACER(57.5X72X7-MM THK) | |
| 6. | 143-7678Y | [2] | CYLINDER GP-HOIST | |
| 7. | 150-6553 | [2] | PIN | |
| 8. | 157-1728 | [2] | SEAL | |
| 9. | 164-8408B | [4] | PLATE-SPACER | |
| 10. | 166-7871 | [2] | WASHER-RUBBER(52X100X8-MM THK) | |
| 11. | 191-5966I | [2] | HOSE AS | |
| 12. | 2N-1287 | [2] | ELBOW-FLARED | |
| 13. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 14. | 5D-9231 | [2] | CONNECTOR | |
| 15. | 6K-6967 | [2] | ADAPTER-PIPE | |
| 16. | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| 17. | 8J-8322 | [2] | RING-RETAINING | |
| 18. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 19. | 8T-5878M | [4] | BOLT(M24X3X80-MM) | |
| 20. | 9X-8257 | [2] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
