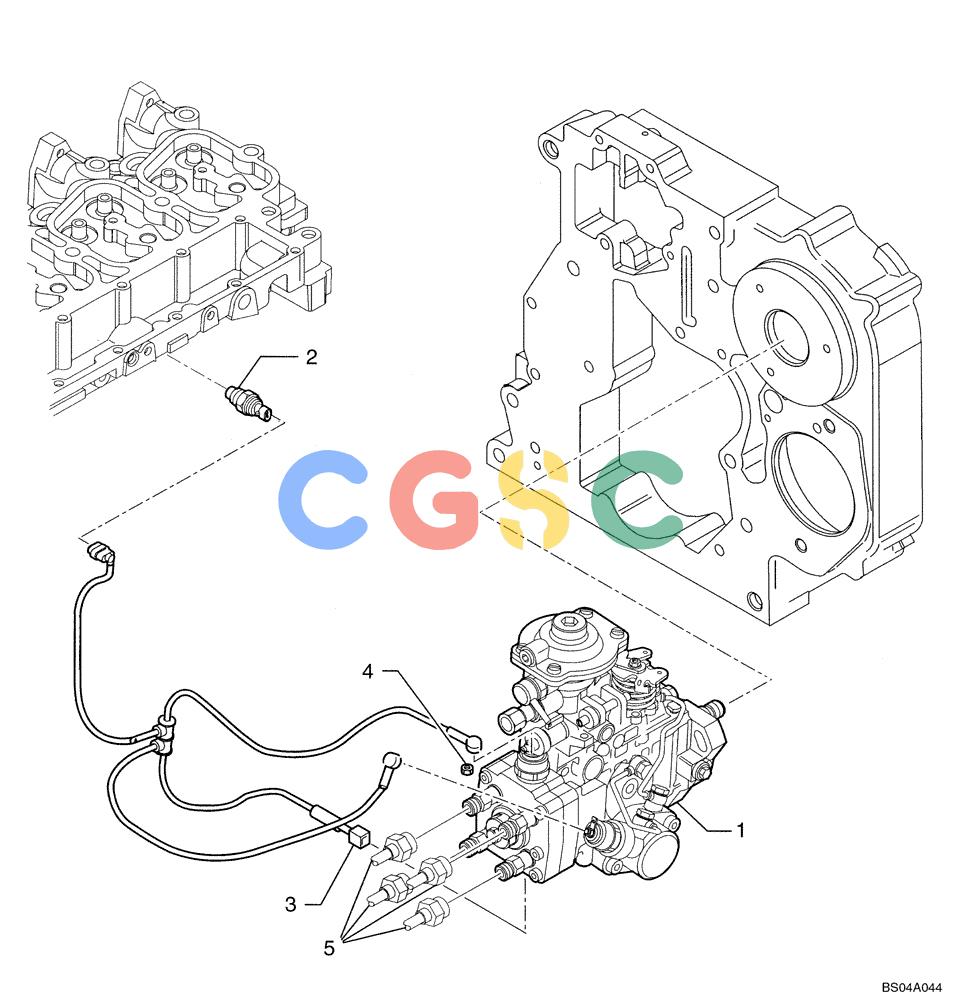

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-36[00]) - FUEL INJECTION PUMP (101910420003) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
346 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2856014 | [1] | FUEL INJECTION PUMP | TOR Superseded by part number: 504128987 |
| 1. | 2856014R | [1] | REMAN-INJECTION PUMP | RACPump Superseded by part number: 504128987R |
| 1. | 2856014C | [1] | CORE-INJECTION PUMP | RACReturn Number |
| . . | 99478110 | [1] | SOLENOID,24V | TORFuel Shut-Off, Not Shown |
| 2. | 2856350 | [1] | SENSOR | TORWater Temperature, Was 2852087 Superseded by part number: |
| 3. | 2852088 | [1] | WIRE HARNESS | TOR Superseded by part number: 504060728 |
| 4. | 2852089 | [2] | NUT,M5 | TORM05x0.8mm |
| 5. | REF | [1] | INSTRUCTION | NHTube -- See Figure 09-39 |
