神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-42[00]) - FUEL INJECTION SYSTEM - FUEL SYSTEM (101580470104) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
587 次

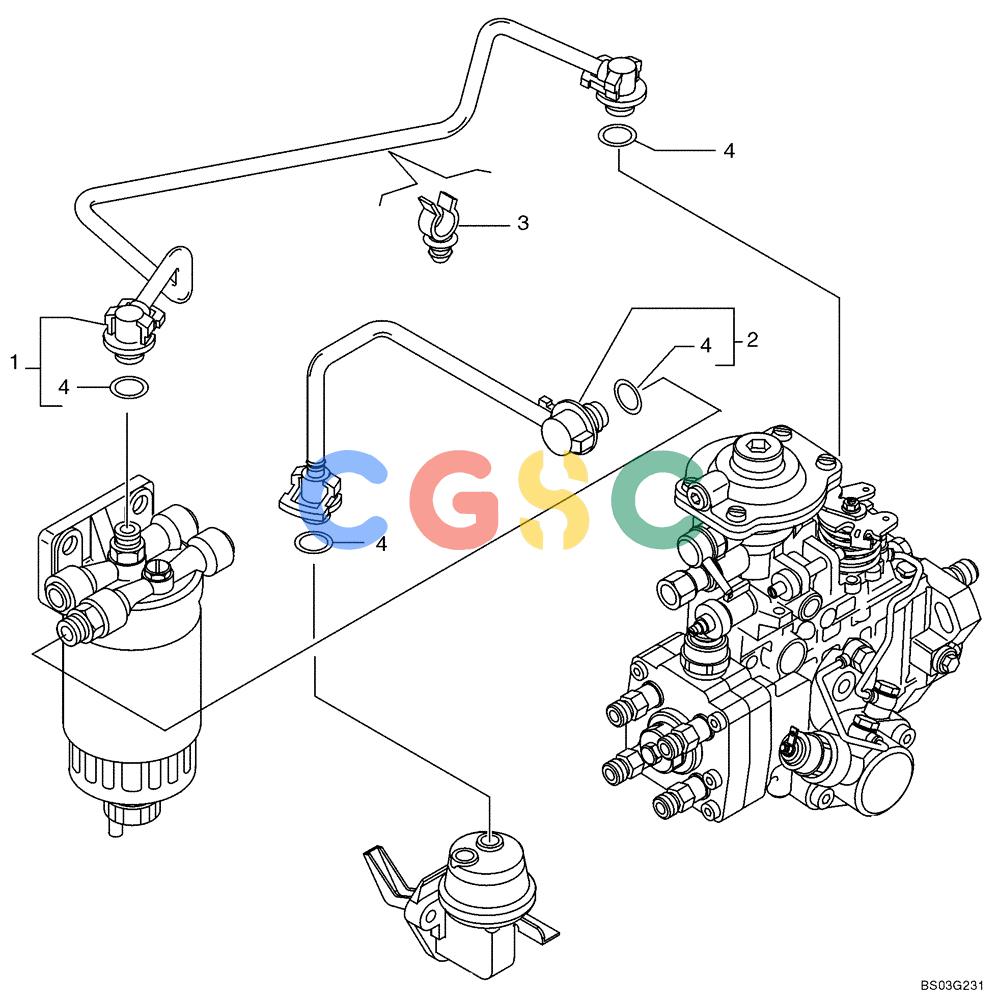

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852549 | [1] | TUBE | TORFuel Suppy Superseded by part number: 504025707 |
| 2. | 2852108 | [1] | RIGID TUBE | TORFuel, Serial Range: Pump-Filter Superseded by part number: 504046458 |
| 3. | 2852111 | [1] | CLIP | TOR Superseded by part number: 504065285 |
| 4. | 4894095 | [2] | O-RING,2.5mm Thk x 8mm ID, 60 Duro | TOR |
