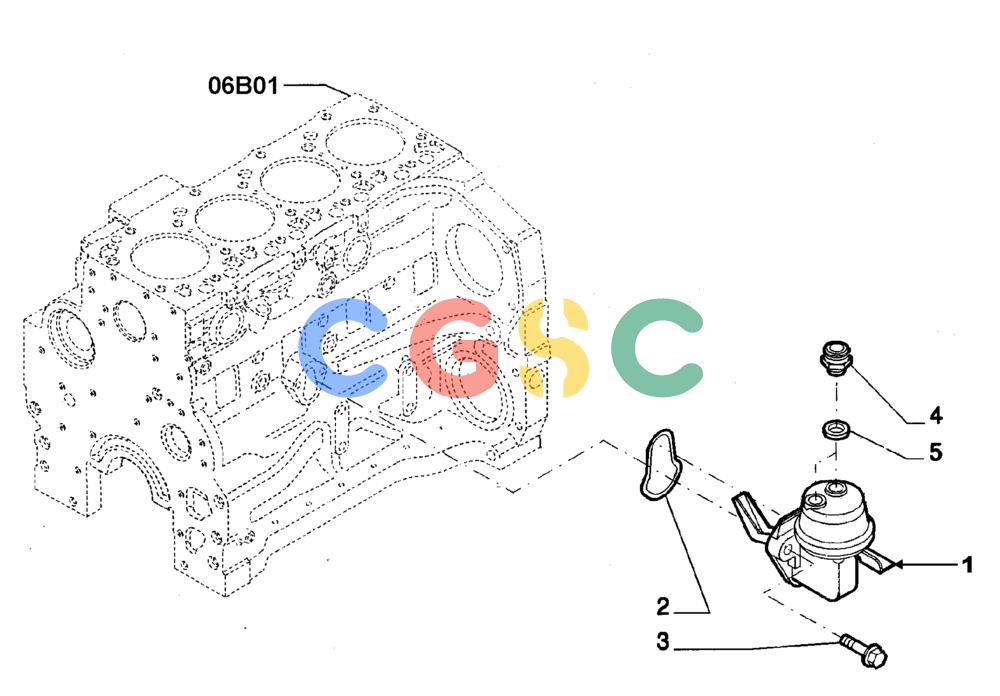

神钢零件查询(SK170-8) - ACERA MARK III EXCAVATOR - TIER 3 (NA) ASN YM04-U1601 - (5/07-12/12) (09-41[00]) - FUEL PUMP (101940450002) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84268475 | [1] | FUEL PUMP | TOR Superseded by part number: |
| 1. | 84268475R | [1] | REMAN-INJECTION PUMP | MKTReman For New PN 84268475 Superseded by part number: |
| 1. | 84268475C | [1] | CORE-INJECTION PUMP | MKTReturn Number |
| 2. | 2830156 | [1] | O-RING,70 Duro, M2.62 Thk | TOR |
| 3. | 4899031 | [2] | BOLT,Flng, M8 x 1.25 x 25mm | TOR Superseded by part number: 4899079 |
| 4. | 4890964 | [2] | FITTING,M12 x 1.5 | TORQuick Disconnect |
| 5. | 4894721 | [2] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
