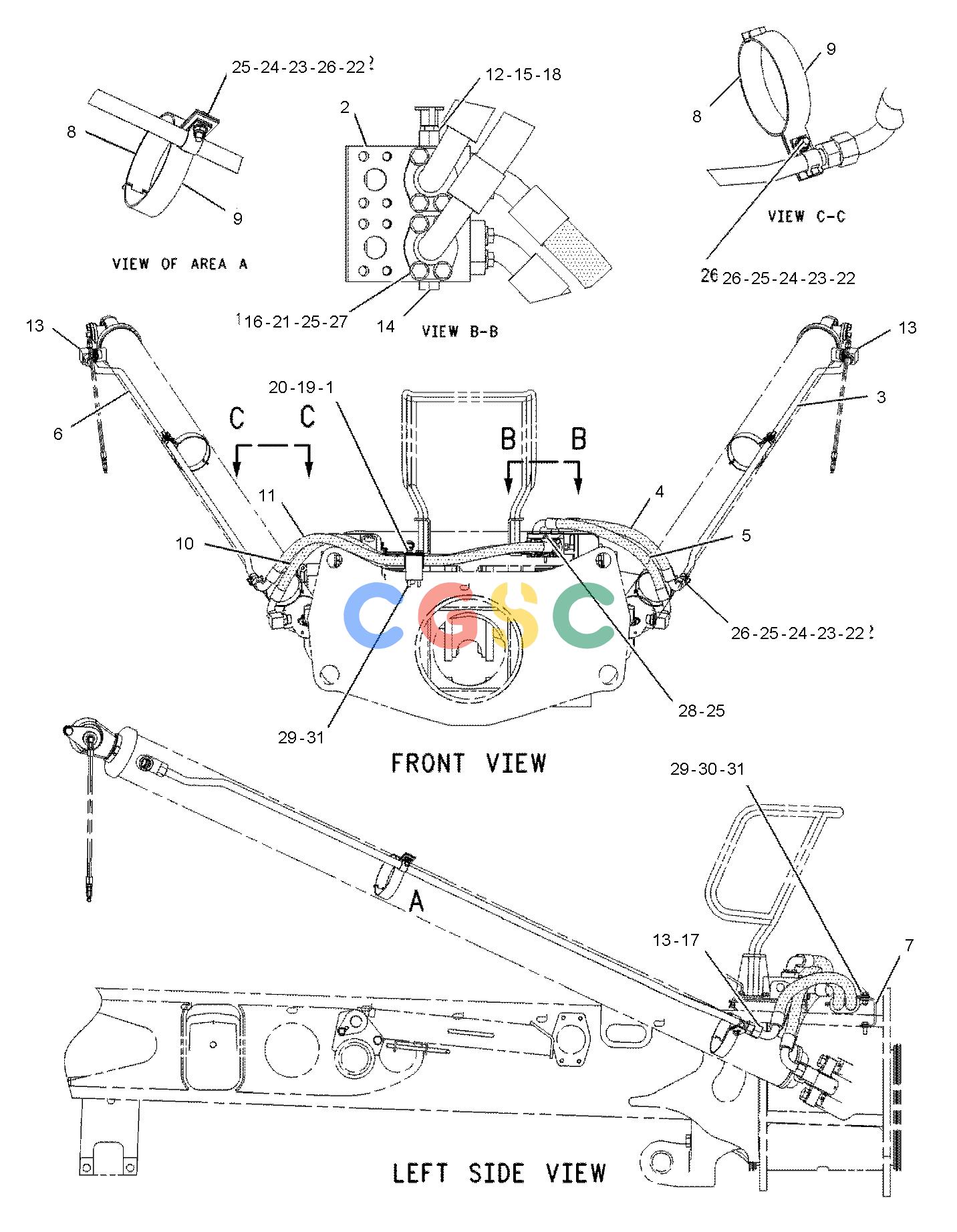

卡特零件查询（735） 152-7101: LINES GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
670 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 152-7120Y | [1] | VALVE & MTG GP-HOIST CONTROL | |
| 2. | 194-1556 | [1] | TUBE AS | |
| 3. | 194-1559 | [1] | TUBE AS | |
| 4. | 194-1560 | [1] | TUBE AS | |
| 5. | 194-7711I | [2] | HOSE AS | |
| 6. | 197-6651 | [1] | SHIELD AS | |
| | 7T-1099 | [6] | LINK | |
| 7. | 207-8892 | [1] | TUBE AS | |
| 8. | 1P-3704 | [2] | SEAL-RECTANGULAR | |
| 9. | 1P-5761 | [4] | FLANGE-HALF | |
| 10. | 4J-0520 | [4] | SEAL-O-RING | |
| 11. | 5K-9090 | [2] | SEAL-O-RING | |
| 12. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 13. | 8C-3206 | [8] | FLANGE-HALF | |
| 14. | 8T-1889 | [6] | CLIP(SLOT) | |
| 15. | 8T-1890 | [6] | CLIP(TAB) | |
| 16. | 8T-4121 | [32] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 18. | 8T-4182M | [8] | BOLT(M10X1.5X45-MM) | |
| 19. | 8T-4192M | [4] | BOLT(M12X1.75X25-MM) | |
| 20. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 21. | 8T-4196M | [14] | BOLT(M10X1.5X35-MM) | |
| 22. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 23. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| 24. | 8T-6685M | [4] | BOLT(M10X1.5X110-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
