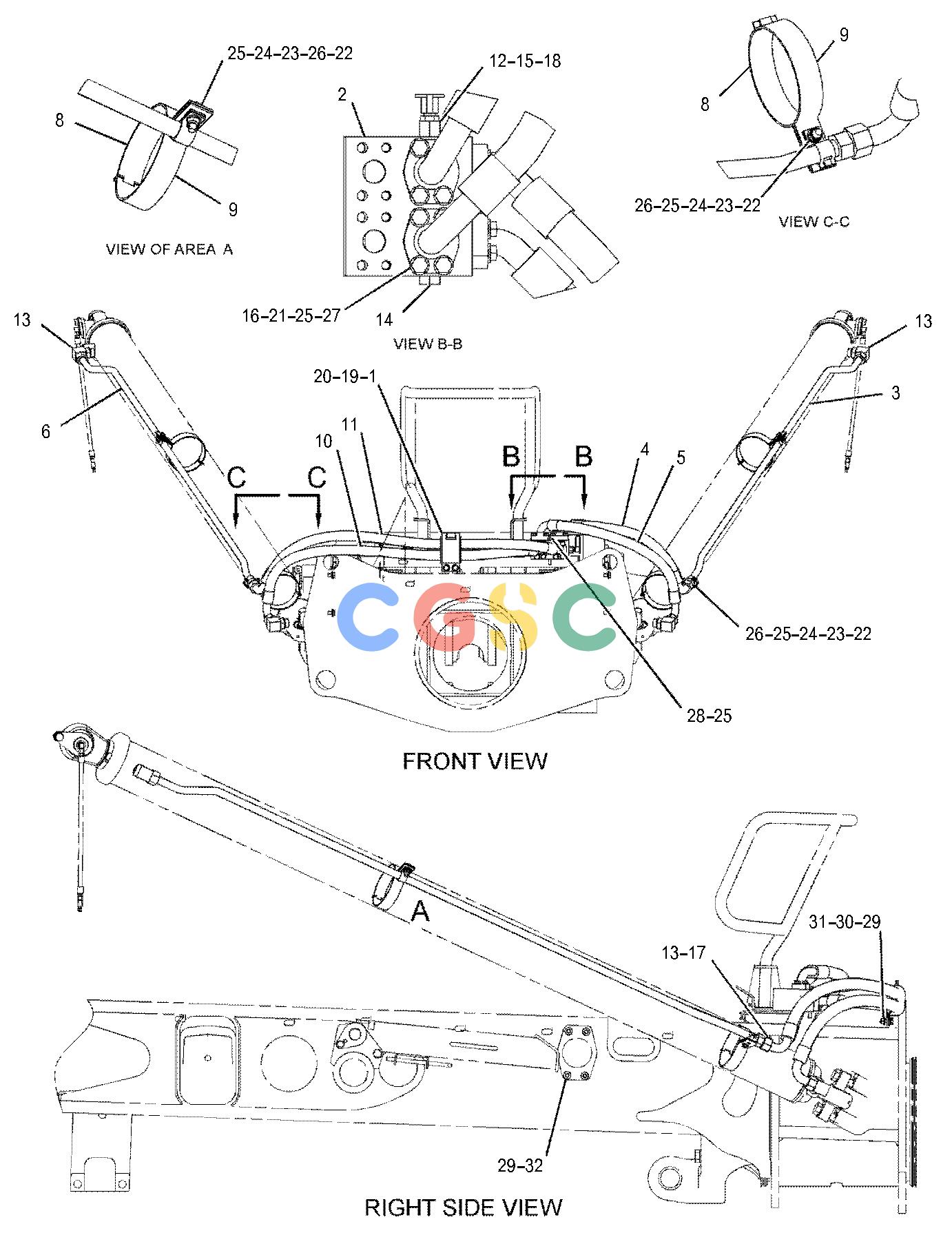

卡特零件查询（735） 153-1139: LINES GP-HOIST
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7G-5984 | [1] | CLIP(TAB) | |
| 2. | 153-3528 | [1] | MANIFOLD | |
| 3. | 166-0436 | [1] | TUBE AS | |
| 4. | 189-9940I | [1] | HOSE AS | |
| 5. | 189-9941I | [1] | HOSE AS | |
| 6. | 190-6286 | [1] | TUBE AS | |
| 7. | 207-5745 | [1] | PLATE-ANGLE | |
| 8. | 214-9436 | [4] | CLAMP | |
| 9. | 214-9438 | [4] | CLAMP | |
| 10. | 221-7227I | [1] | HOSE AS | |
| 11. | 221-7250I | [1] | HOSE AS | |
| 12. | 148-8313 | [1] | ADAPTER AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 5P-6944 | [1] | ADAPTER | |
| 13. | 148-8357 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-9008 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 14. | 148-8411 | [1] | PLUG AS | |
| | 9S-4185 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 15. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 16. | 4J-0520 | [4] | SEAL-O-RING | |
| 17. | 5K-9090 | [2] | SEAL-O-RING | |
| 18. | 6V-0852 | [1] | CAP-DUST | |
| 19. | 7G-5985 | [1] | CLIP(SLOT) | |
| 20. | 7G-5986 | [1] | GROMMET | |
| 21. | 8C-3206 | [8] | FLANGE-HALF | |
| 22. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 23. | 8T-1889 | [4] | CLIP(SLOT) | |
| 24. | 8T-1890 | [4] | CLIP(TAB) | |
| 25. | 8T-4121 | [25] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 27. | 8T-4196M | [16] | BOLT(M10X1.5X35-MM) | |
| 28. | 8T-4198M | [1] | BOLT(M10X1.5X100-MM) | |
| 29. | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 30. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 31. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
