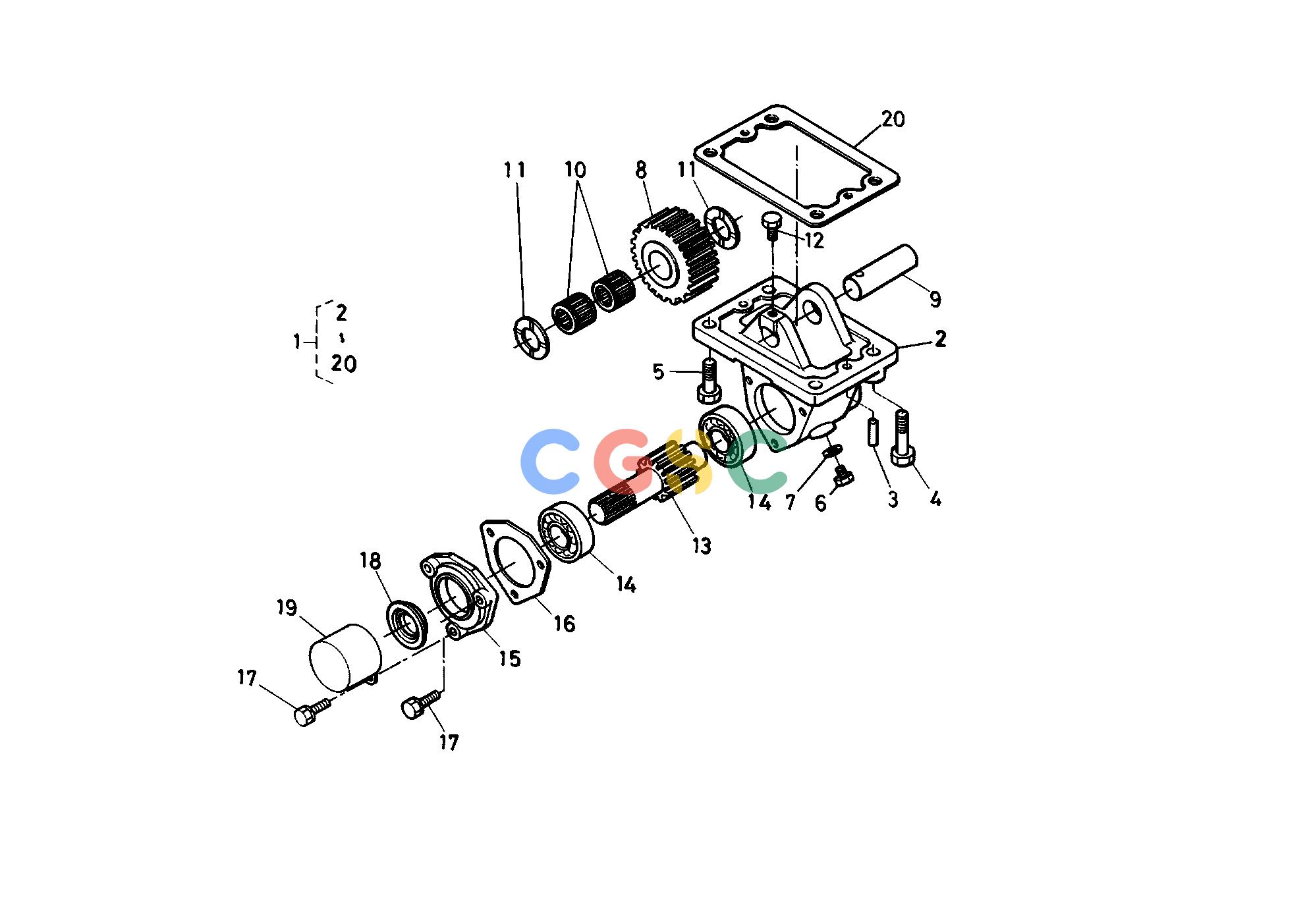

久保田零件查询T02100 MID P.T.O TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6630121202
|
[1] |
KIT MID-PTO
|
0.0000(lbs); 0.000
|
| 002. |
9638025110
|
[1] |
CASE DRIVE
|
3.9600(lbs); 1.800
|
| 003. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 004. |
0112351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 005. |
0112351028
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 006. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 007. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 008. |
6630115880
|
[1] |
GEAR 27
|
1.1660(lbs); 0.530
|
| 009. |
6630115860
|
[1] |
SHAFT
|
0.3960(lbs); 0.180
|
| 010. |
6630115830
|
[2] |
BEARING NEEDLE
|
0.0550(lbs); 0.025
|
| 011. |
6630115920
|
[2] |
COLLAR
|
0.0000(lbs); 0.000
|
| 012. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 013. |
6630115890
|
[1] |
SHAFT
|
1.3860(lbs); 0.630
|
| 014. |
0810106205
|
[2] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 015. |
9638025170
|
[1] |
COVER CASE
|
0.4290(lbs); 0.195
|
| 016. |
9638025180
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 017. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 018. |
6630115850
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 019. |
6630115840
|
[1] |
COVER
|
0.1650(lbs); 0.075
|
| 020. |
6620421220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
