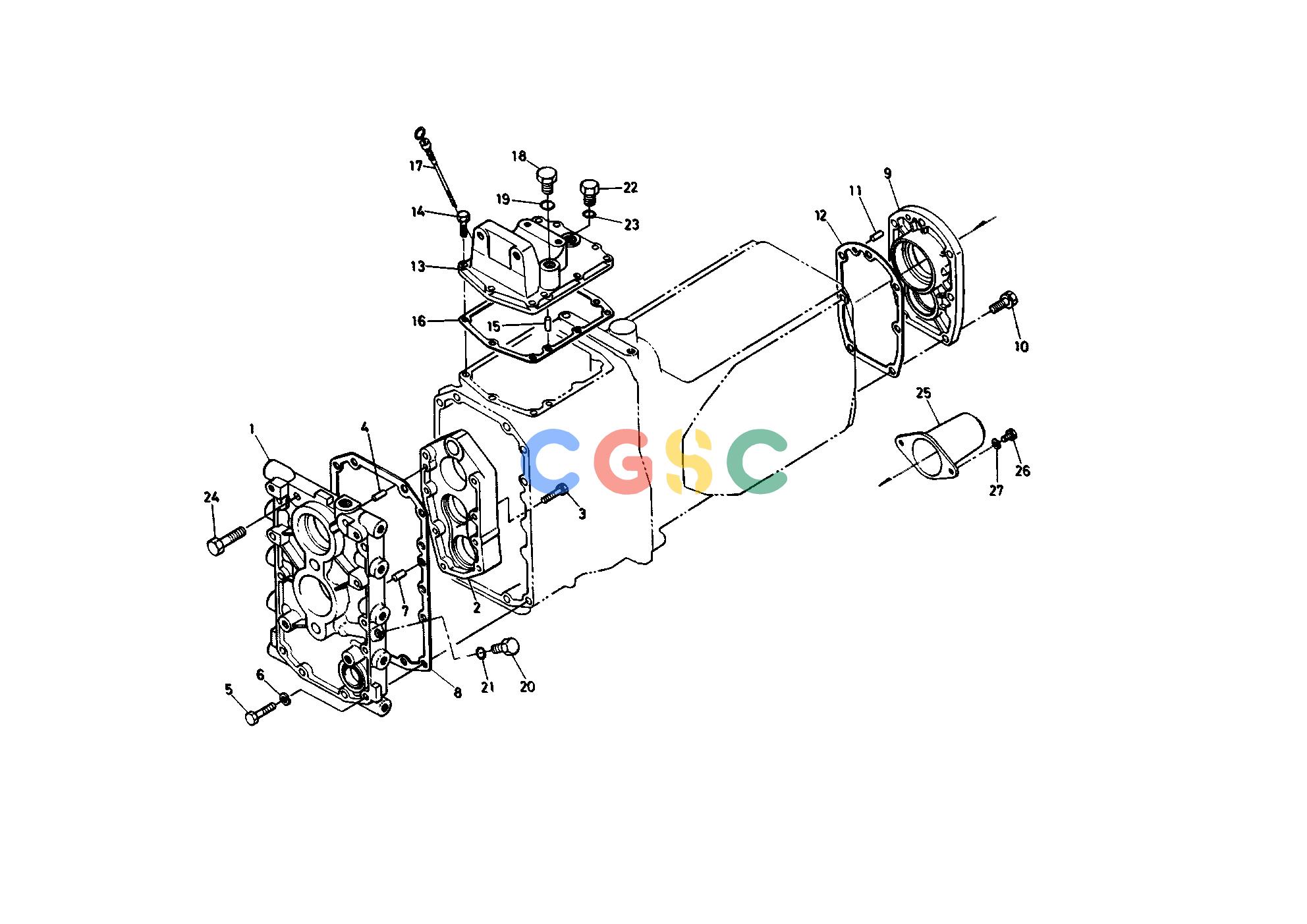

久保田零件查询T02200 COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6630112110
|
[1] |
COVER FRONT
|
0.0000(lbs); 0.000
|
| 002. |
6630112140
|
[1] |
HOLDER BEARING
|
5.9400(lbs); 2.700
|
| 002. |
6630112142
|
[1] |
HOLDER BEARING
|
4.1140(lbs); 1.870
|
| 003. |
0112350835
|
[7] |
BOLT
|
0.0440(lbs); 0.020
|
| 004. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 005. |
0115351050
|
[10] |
BOLT
|
0.0660(lbs); 0.030
|
| 006. |
0451250100
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 007. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 008. |
6711112130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 009. |
6711112210
|
[1] |
COVER REAR
|
3.6740(lbs); 1.670
|
| 010. |
0112051035
|
[7] |
BOLT
|
0.0660(lbs); 0.030
|
| 011. |
0501200818
|
[1] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 012. |
6711112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 013. |
6630112410
|
[1] |
COVER CASE FRONT
|
5.9400(lbs); 2.700
|
| 014. |
0112350828
|
[9] |
BOLT
|
0.0308(lbs); 0.014
|
| 015. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 016. |
6711112420
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 017. |
6711112430
|
[1] |
GAUGE OIL
|
0.0396(lbs); 0.018
|
| 018. |
0631460040
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
| 019. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
6630112170
|
[1] |
PLUG
|
0.0506(lbs); 0.023
|
| 021. |
0481106100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 022. |
0631460030
|
[1] |
PLUG
|
0.0198(lbs); 0.009
|
| 023. |
0481100150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 024. |
0112351250
|
[2] |
BOLT
|
0.1210(lbs); 0.055
|
| 025. |
6711161510
|
[1] |
COVER PTO
|
0.0770(lbs); 0.035
|
| 026. |
0120250612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 027. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
