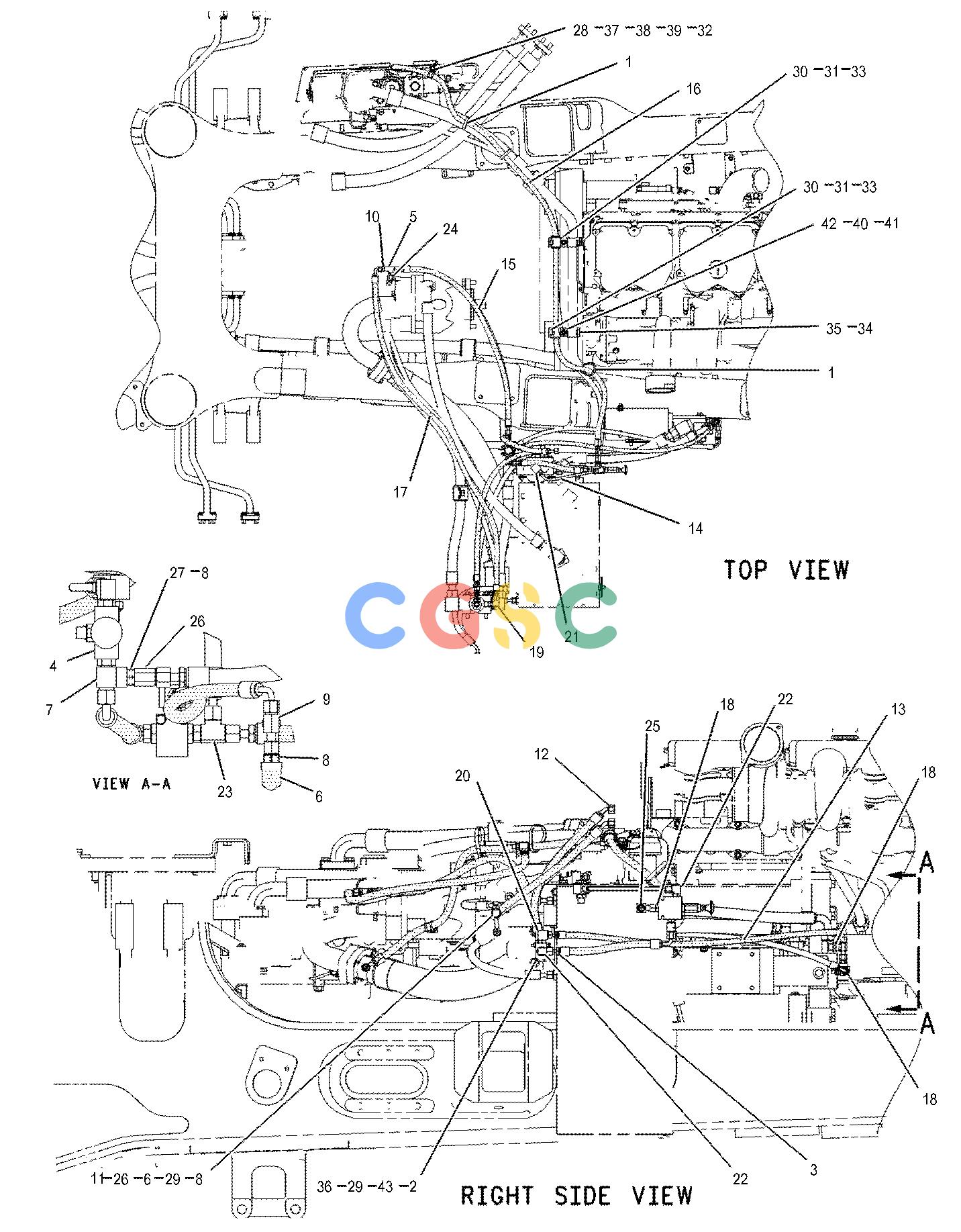

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7U-9542 | [1] | PLATE-CLAMPING | |
| 2. | I | [1] | HOSE AS | |
| 3. | [1] | BRACKET | ||
| 4. | 8T-4194M | [1] | BOLT(M12X1.75X50-MM) | |
| 5. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 7. | 8T-4956M | [1] | BOLT(M12X1.75X35-MM) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
| M | METRIC PART | |||
