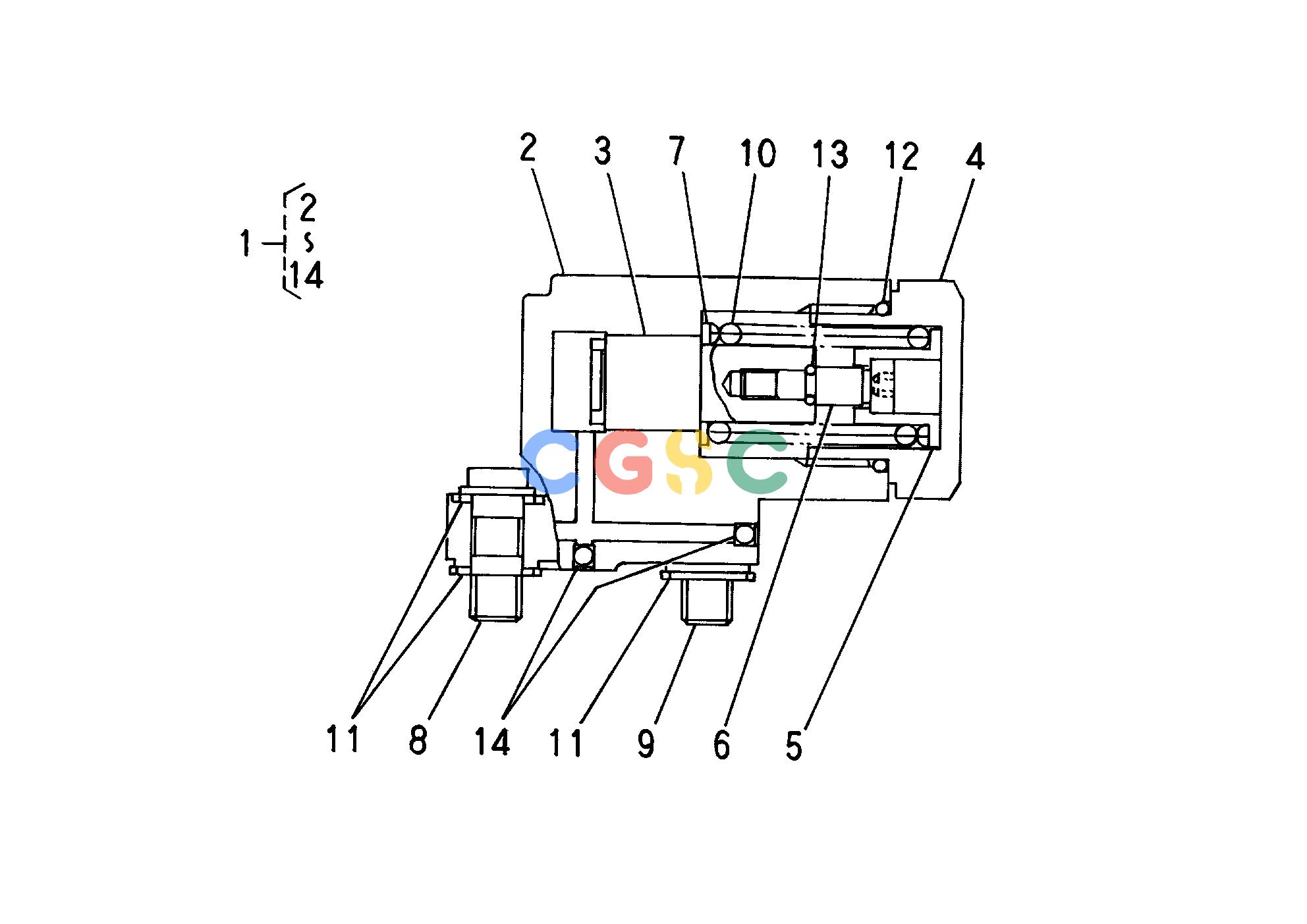

久保田零件查询T08802 HST [SECTION PARTS] TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6630135510
|
[1] |
ASSY ACCUMULATOR
|
6.3800(lbs); 2.900
|
| 004. |
6630135540
|
[1] |
PLUG A
|
0.0000(lbs); 0.000
|
| 005. |
6630135550
|
[1] |
HOLDER SPRING
|
0.0000(lbs); 0.000
|
| 006. |
6630135560
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 007. |
6630135580
|
[1] |
WASHER
|
0.0000(lbs); 0.000
|
| 008. |
6630135590
|
[1] |
BOLT A
|
0.0880(lbs); 0.040
|
| 009. |
6630135610
|
[1] |
BOLT B
|
0.1320(lbs); 0.060
|
| 010. |
6630135620
|
[1] |
SPRING
|
0.0000(lbs); 0.000
|
| 011. |
6630135630
|
[4] |
SEAL
|
0.0110(lbs); 0.005
|
| 012. |
0481100380
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 013. |
0481110060
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 014. |
6630135640
|
[6] |
PLUG
|
0.0000(lbs); 0.000
|
