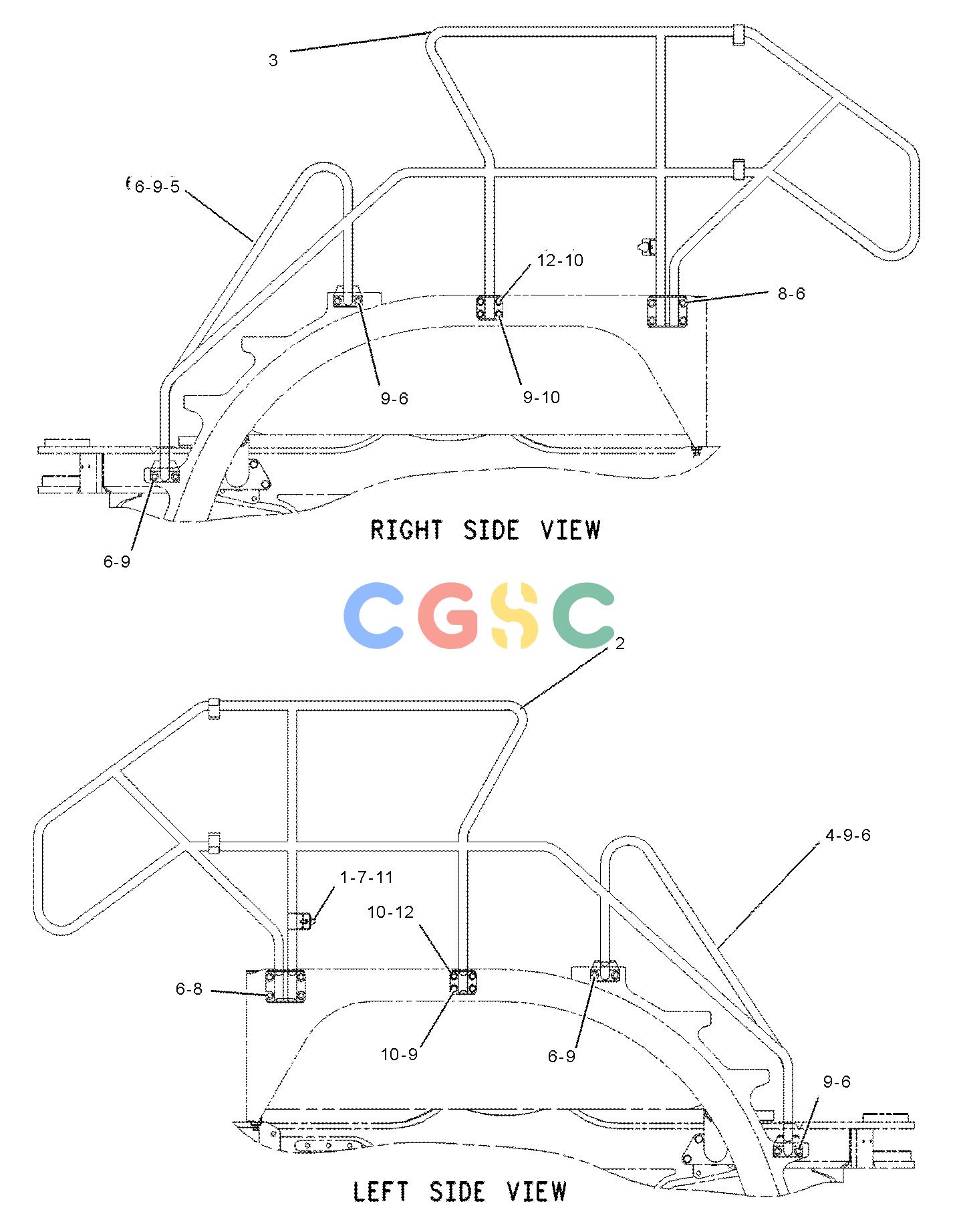

卡特零件查询（735） 162-5126: GUARD GP-PLATFORM
广数供应链运营团队, 15 02月, 2025，浏览：
734 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3W-7412 | [1] | BUMPER-CONICAL | |
| 2. | 188-4341 | [1] | HANDRAIL AS(LH) | |
| 3. | 188-4342 | [1] | HANDRAIL AS(RH) | |
| 4. | 194-1953 | [1] | HANDRAIL AS(LH) | |
| 5. | 194-1954 | [1] | HANDHOLD AS(RH) | |
| 6. | 5P-1076 | [24] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 8. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 9. | 8T-4192M | [20] | BOLT(M12X1.75X25-MM) | |
| 10. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 12. | 8T-4910M | [4] | BOLT(M12X1.75X60-MM) | |
| | M | | METRIC PART |
