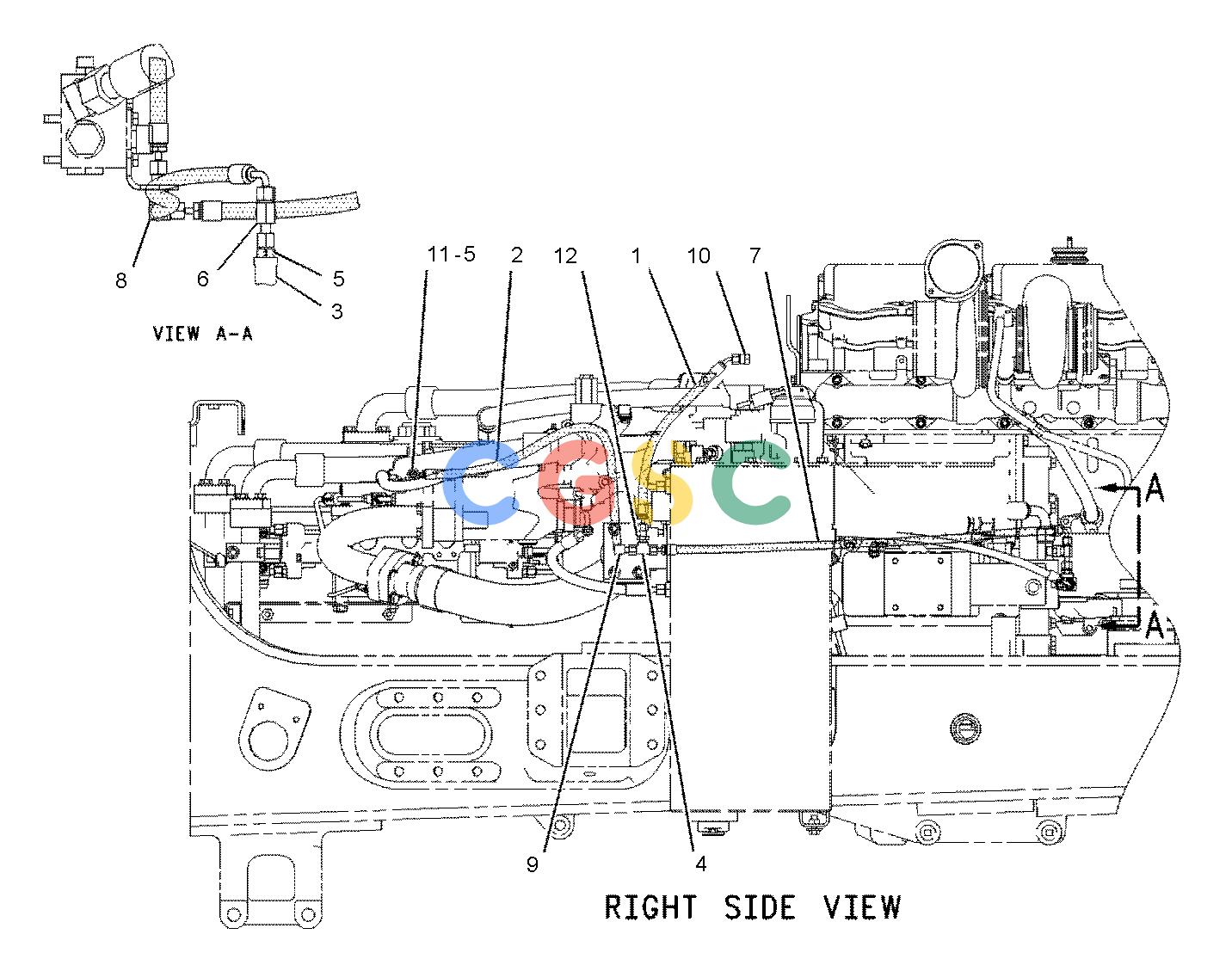

卡特零件查询（735） 227-5290: LINES GP-PILOT
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 109-6640I | [1] | HOSE AS | |
| 2. | 128-2754I | [1] | HOSE AS | |
| 3. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 4. | 162-6616 | [1] | TEE AS | |
| | 4J-5477 | [3] | SEAL-O-RING | |
| | 8T-9027 | [1] | TEE | |
| 5. | 165-7948Y | [2] | VALVE GP-CHECK | |
| 6. | 166-2033 | [1] | TEE AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 7X-2444 | [1] | TEE-SWIVEL | |
| 7. | 194-6923I | [1] | HOSE AS | |
| 8. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 9. | 148-8351 | [1] | ELBOW AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9849 | [1] | ELBOW | |
| 10. | 148-8413 | [1] | REDUCER AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8934 | [1] | ADAPTER | |
| 11. | 150-4047 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 8T-2353 | [1] | ADAPTER | |
| 12. | 2P-1279 | [1] | LOCKNUT(9/16-18-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
