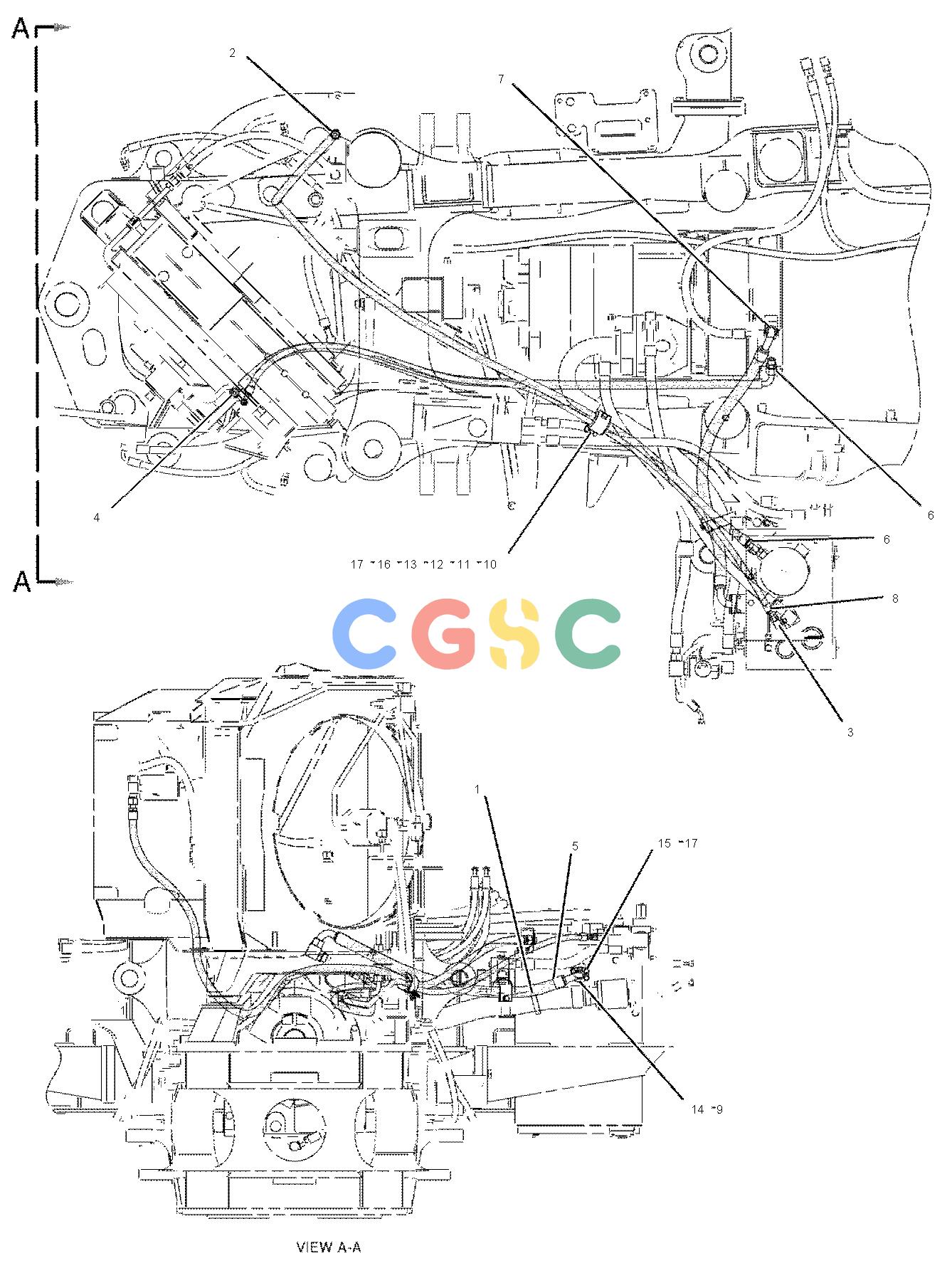

卡特零件查询（735） 152-7102: LINES GP-PUMP
广数供应链运营团队, 15 02月, 2025，浏览：
119 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [1] | STRAP | |
| 2. | 160-4094I | [1] | HOSE AS | |
| 3. | 197-0376I | [1] | HOSE AS | |
| 4. | 197-8226I | [1] | HOSE AS | |
| 5. | 201-4591I | [1] | HOSE AS | |
| 6. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8637 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 7. | 148-8357 | [1] | ELBOW AS | |
| | 6V-9008 | [1] | ELBOW | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 8. | 148-8365 | [1] | ELBOW AS | |
| | 8T-6876 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 9. | 4J-0520 | [1] | SEAL-O-RING | |
| 10. | 5P-7470 | [1] | CLIP(SLOT) | |
| 11. | 5P-7471 | [1] | CLIP(TAB) | |
| 12. | 5P-7703 | [1] | GROMMET(52-MM ID) | |
| 13. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 14. | 8C-3206 | [2] | FLANGE-HALF | |
| 15. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 17. | 8T-4139M | [5] | BOLT(M12X1.75X30-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
